Product Details:
|
Minimum Focus Distance: | 5-10KM | Tilt: | -45 ° ~ + 90 ° |
---|---|---|---|
Pan: | N × 360 ° Continuous Rotation | Temperature Range: | -40°C To +70°C |
Spectral Range: | 7.5μm To 14μm | Detection Range: | 5-10KM |
Resolution: | 640x512 | Weight: | 15kg |
Highlight: | Construction Site Monitoring Thermal Camera,Surveillance Thermal Camera,Long distance Thermal Camera |

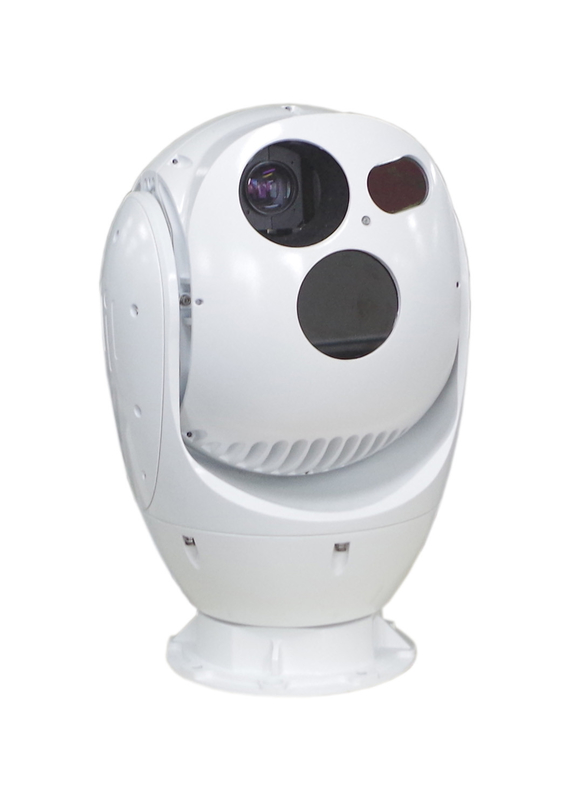

ZS20 Ship Mounted Multi-sensor Camera integrates HD visible light camera, uncooled thermal camera, laser ranging finder, automatic tracking, gyro stabilization, intelligent analysis and precise electronic control. It is designed for ship / shipboard video acquisition and sea surface warning, key target warning, radar linkage and other applications designed long-distance detection system, which can adapt to all-weather,all-time, full-dimensional discovery, positioning, tracking, identification and tracking of the target function, the smallest distance to small ships and islands can be up to 8 km.
Military quality design, the shell is made of super strong aluminum alloy material, spherical low wind resistance design, strong wind resistance, low agitation. Adopting internal and external double-layer "three-proof" technology and vacuum nitrogen-filled sealing technology, the protection grade of the whole machine reaches IP66, and the special salt-spray protection design, the protection grade reaches C5-M level, which effectively ensures the long-term stable operation of the equipment in the harsh ring mirror of the sea.
The Long Range Thermal Camera is a powerful tool for long-distance surveillance and security operations. With its high-resolution sensor, long-range capabilities, and lightweight design, the camera is perfect for use in a variety of settings, including border security, maritime surveillance, and critical infrastructure protection.
This Long Range Thermal Camera, also known as a Long-Distance Thermal Camera, is a powerful Thermal Imaging Camera that operates in a spectral range of 7.5μm To 14μm. It has a wide temperature range of -40°C To +70°C and uses a PTZ Thermal sensor type, which allows for precise and accurate thermal imaging. Additionally, it has a N × 360 ° continuous rotation pan and a tilt range of -45 ° ~ + 90 °.
Ship / shipboard video collection, sea warning, important target alert, etc.
Model | HP-ZS20GIS-TRC6307C-2132 |
Rotation range |
1. Pan: N × 360 ° continuous rotation 2. Tilt: -45 ° ~ + 90 ° 3. Limit: The pitch has a soft limit function, the program can be set |
Spinning speed |
1. Horizontal speed: 0.1 ° ~ 80 ° / s 2. Pitching speed: 0.1 ° ~ 80 ° / s 3. Acceleration: horizontal 120 ° / s2, pitch 120 ° / s2 4. Drive mode: direct drive with vigorous torque rare earth permanent magnet synchronous motor, high-speed start-stop, smooth tracking with radar linkage |
Positioning accuracy | Positioning accuracy: up to 0.02 °, high-frequency fine-tuning pulse precision motor drive, digital angle sensor servo |
Turntable zero position | Zero setting: support the setting of pan and pitch zero |
Stability accuracy | 2mrad (RMS), two-axis gyro stable |
Cruise scan |
1. Preset position: no less than 255 2. Path scan: support preset point cruise, line scan, scan speed can be set 3. Watch function: support watch preset, line scan and cruise |
Data return |
1. Lens servo: support lens field of view, magnification, ZOOM / FOCUS value query, return, positioning function 2. Turntable angle: support real-time / query return and positioning functions of horizontal and pitch angles |
Tracking mode |
1. Support manual control tracking 2. Support radar linkage automatic tracking 3. Support front-end module automatic tracking (optional) 4. Support automatic tracking of back-end software |
Enhancement |
1. Motor protection: turntable blocking protection, high reliability 2. Fault detection: support power-on self-check, status query and fault code feedback 3. Upgrade and maintenance: remote restart, remote upgrade function, convenient system maintenance |
Electrical Interface |
1. Network interface: 1 channel 10M / 100M adaptive Ethernet port (including thermal image + high-definition visible light + RS422 / 485 control) 2. Power source: 1 way DC24V 3. Physical interface: military-grade aviation waterproof plug, protection grade IP67 |
Protocol |
support Onvif, GB28181 network video protocol
baud rate 2400, 4800, 9600, 19200 optional, customizable private protocol |
Environmental index |
1. Working temperature: -25 ℃ ~ + 60 ℃ 2. Storage temperature: -30 ℃ ~ + 70 ℃ 3. Humidity: <95% RH 4. Anti-lightning surge: power supply 4000V, communication video signal 2000V 5. Anti-salt spray: PH value 6.5 ~ 7.2, continuous spraying for 96 hours, can still work normally 6. Vibration resistance: meets GJB150A.16 shipboard environmental requirements 7. Protection level: IP67 |
Machine power supply |
1. Power supply: equipped with ultra-wide input power adapter, AC90V~305V to DC24V 2. Power consumption: The maximum power consumption of the turntable ≤250W, the stable power consumption ≤50W |
Volume and weight |
|
Cameras | |
Visible Camera |
1. Detector: 1/3 "low illumination CMOS 2. Resolution: 1920 × 1080 (2 million pixels) 3. Illumination: color 0.002 Lux @ (F1.2, AGC ON), black and white 0.0002Lux @ (F1.2, AGC ON) 4. Lens focal length: 8 ~ 320mm continuous zoom 5. Action distance: Under the conditions of atmospheric visibility greater than 10km, air humidity less than 50%, and background imperviousness, the action distance to small ships or islands and reefs can reach 8km. 6. Lens control: electric zoom, manual / auto focus 7. Interface and video format: IP network output, H.265 / H.264 |
Uncooled Thermal Camera |
1. Detector: The fifth generation of VOx uncooled detector 2. Spectral range: 8μm ~ 12μm 3. Resolution: 640 × 512 4. Lens focal length: 25 ~ 75mm, 8X electronic zoom, optical-electronic fusion relay zoom 5. Sensitivity: NETD is better than 40mk; 6. Focus control: electric zoom, manual / auto focus 7. Strong light protection: anti-sun burn function 8. Ranging ruler: adaptive optical zoom proportional zoom 9. Life index: recording function (cumulative working time, shutter times, limit temperature, environment 10. temperature, core device temperature), can be viewed in real time through the web |
Laser lighting |
1. Wavelength: 808nm 2. Power: 5W 3. Laser lens: 2 ° -30 ° 4. Angle control: DSS digital step lighting angle control technology |
Recommended configuration of monitoring workstation | |
Host configuration (Recommended only, provided by user) |
CPU: 6 cores (i7 8700 and above) Memory: 16GB or more Hard Disk: 1TB SATA Display: resolution 1920 * 1080 Network: LAN or 100M Ethernet System: Windows 7 or Windows 10 Database: MySQL 5.1 and above Other: Windows SDK, MFC bottom support library Power supply; keyboard, mouse, etc. |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
The Long Range Thermal Camera product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced technicians is available to provide assistance in installation, configuration, and troubleshooting of the camera system. Additionally, we offer regular firmware updates to keep the camera up-to-date with the latest features and bug fixes. Our technical support team is also available to answer any questions or concerns regarding the product and its capabilities. For customers who require additional services, we offer maintenance agreements to ensure the longevity and reliability of the camera system.
Here are some frequently asked questions about Hope-Wish's HP-ZS20 Long Range Thermal Camera:
Q: What is the maximum distance this camera can detect heat signatures?
A: The HP-ZS20 has a maximum detection range of up to 3 kilometers (1.86 miles).
Q: What is the temperature measurement range of this thermal camera?
A: The HP-ZS20 has a temperature measurement range of -40°C to 550°C (-40°F to 1022°F).
Q: Is the camera waterproof?
A: Yes, the HP-ZS20 is IP66 rated, meaning it is dust-tight and protected against powerful water jets.
Q: Can I view the thermal images in real-time?
A: Yes, the HP-ZS20 can stream thermal images in real-time to a compatible device using its built-in Wi-Fi or wired Ethernet connection.
Q: Where is the HP-ZS20 manufactured?
A: The HP-ZS20 is manufactured in China.
