Product Details:
|
| Weight: | 15kg | Tilt: | -45 ° ～ + 90 ° |
|---|---|---|---|
| Spectral Range: | 7.5μm To 14μm | Minimum Focus Distance: | 5-10KM |
| Detection Range: | 5-10KM | Pan: | N × 360 ° Continuous Rotation |
| Sensor Type: | PTZ Thermal | Temperature Range: | -40°C To +70°C |
| Highlight: | Multi-spectrum Thermal Camera,Surveillance Thermal Camera,Long Distance Thermal Camera |
||

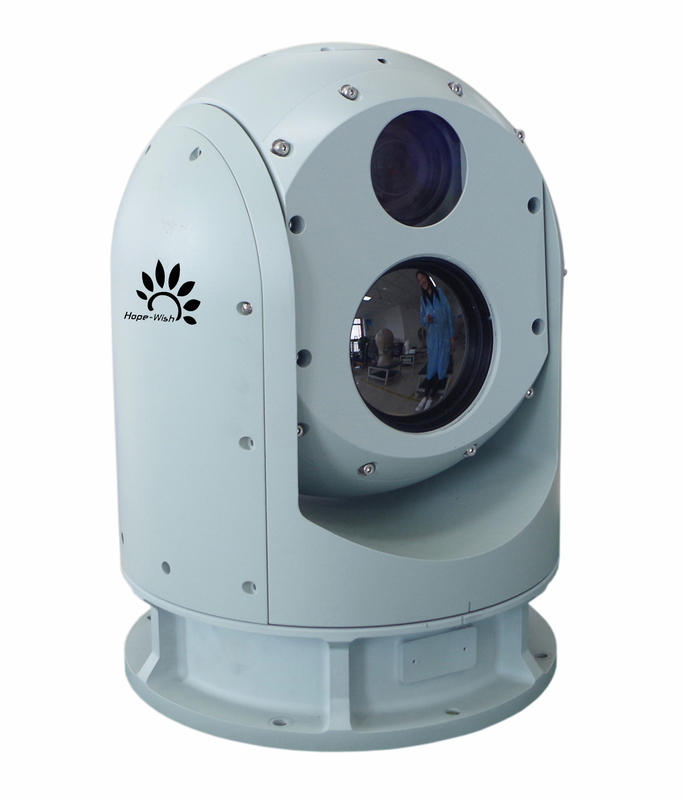

ZTRC Series Multi-spectrum Optical Electronical Platform combines visible camera, thermal imaging camera that suit long distance monitoring in total darkness and foggy/rainy environment. It has Dome Shape housing and with military quality, the camera is widely applied to border, coastal, seaport, airport, Forest fire prevention.
In the day time, HD lens and 2 mega pixel color to B/W CMOS works. thermal camera works both day and night. The multi- spectrum photoelectronic platform can detect 24/7 hours.
Internal industrial-grade embedded electronic control system support the ZTRC operation: zoom, focus, video switch, pan tilt. The integral aluminum alloy housing IP66 makes sure outdoor running.
Whether you need to monitor a large outdoor area or keep an eye on a specific target, the Long Range Thermal Camera is the perfect tool for the job. Its advanced features and high-quality design make it one of the most reliable and effective long-distance thermal cameras on the market today.
Border defense, lake and river monitoring, airport security, city safety, forest fire prevention.
In conclusion, the Hope-Wish HP-ZS20 Long-Range Thermal Camera is an essential tool in various applications and scenarios. Its thermal imaging capabilities, long-distance range, and continuous rotation pan feature make it a versatile surveillance tool. Its ability to withstand extreme temperatures also makes it suitable for use in any environment.
| Model | HP-ZTRC4307-2132 |
| Shape |
Dome Shape housing, Multi-dimensional free-form surface shape resisting 33m/s wind, and optional gyro function |
| Rotation speed | ≥60°/S |
| PT | Pan: 0～360° ; Tilt: -45°～+90° |
| PT position back sending | ≤0.05°accuracy , real-time back up |
| Thermal Camera |
VOx uncooled detector, 324*256(640*512 optional) 8um-14um spectral response, 50mk NETD |
|
25mm～75mm optical 3X continuous zooming Electric zoom and focus (optional auto focus) |
|
| Visible light camera | 1/2.8'' CMOS, 0.05 lux color to B/W CCD,Automatic ICR switch |
| 1920X1080, 2.1MP , | |
| 8mm～250mm, optical 32X zooming | |
| Auto-tracking | tracking performance: auto-tracking module is designed under multiple advanced target acquisition method and tracking algorithms, assisted by high precision servo control, the tracking accuracy can reach ±0.5 mrad to ensure the stability tracking of the target in the process of rapid flight and direction change. |
| Interface |
1. video output: IP 2. Voltage: DC24V 2. Interface RS422 3. Military-grade waterproof aviation plug |
| Protocol |
1.TCP/IP,UDP,IPv4/v6,HTTP,RTP,RTSP,NFS,DHCP,NTP,SMTP,SNMPv1/v2c/v3,UPNP,PPPoE,DNS,FTP,PSIA,ONVIF2.0,GB28181 network protocols 2. Support ONVIF2.0 3. Pelco-P, Pelco-D and other industry-standard protocol, baud rate 2400,4800,9600,19200 alternative, proprietary protocols can be customized |
| Enhancements | Lens defrost, air-cooled shields, heating function to achieve automatic control and heated open at -35 degrees |
| Power supply |
AC220V±20% maximum power consumption 250W |
| Environmental indicators |
1. Working temperature: -40 ℃ ~ + 60 ℃ 2. Storage temperature: -45 ℃ ~ + 65 ℃ 3. Humidity: <90% |
| Weight | ≤17KG |
| Dimension | Ф476mm×H245mm |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Our Long Range Thermal Camera product is designed to provide high resolution thermal imaging for long distance surveillance applications. We offer a range of technical support and services to ensure the optimal performance of our product:
Our team of experienced technicians is dedicated to providing prompt and effective solutions to any issues or inquiries you may have regarding our Long Range Thermal Camera product.
Q: What is the brand name of this thermal camera?
A: The brand name of this thermal camera is Hope-Wish.
Q: What is the model number of this thermal camera?
A: The model number of this thermal camera is HP-ZS20.
Q: Where is this thermal camera made?
A: This thermal camera is made in China.
Q: What is the maximum range of this thermal camera?
A: The maximum range of this thermal camera is 2000 meters.
Q: Does this thermal camera come with a warranty?
A: Please refer to the warranty information provided in the product packaging or manual.
