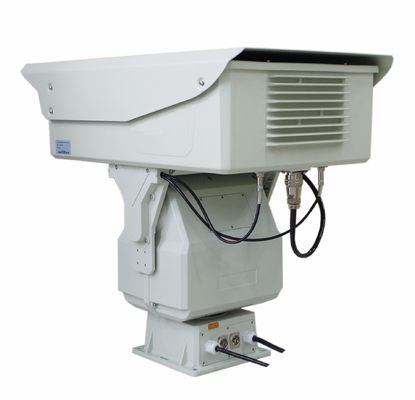

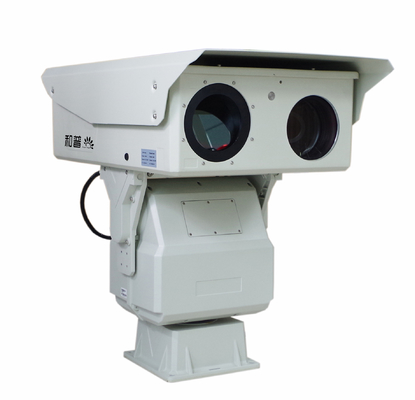

Long Distance Dual Sensor Thermal PTZ Thermal Camera For Early Fire Detection

Product Description:

Unique AS + DOE advanced optical continuous zoom design and 3CAM high precision optical machine design, stable and smooth zooming, which to conduct to large-scale searching and long-range recognition

Excellent non-uniform image correction technology with good image uniformity and dynamic range

SDE image detail enhancement technology, image smooth and noiseless, a variety of pseudo-color and hot black hot white polarity image mode switching, adaptability, easy to find low-contrast hidden targetse

The camera also offers a tilt range of 90 degrees, allowing for flexible installation and monitoring options. With its durable construction and reliable performance, the PTZ Thermal Imaging Camera is an ideal choice for a range of applications, including perimeter security, industrial monitoring, and more.



Features:

Integrates with infrared thermal image, HD visible imaging, video coding, pan/tilt cover and control electronic system

Visible imaging adopts with full HD color black and white mode low illumination CMOS sensor and 30 times compact continuous zoom lens

The latest generation of VOx detectors based on MEMS technology, detection sensitivity (NETD) up to 50mk, higher sensitivity than conventional products, to obtain more delicate picture quality, less affected by fog, rain and snow switching of laser switch and camera into day-night mode



Technical Parameters:

Model	HP-TVC6511-2150
Detection	Vehicle: 8.6km,Human:3.4km
Identification	Vehicle:2.4km, Human: 900m
Thermal Camera System
Sensor	5th generation FPA VOx uncooled detector
	640*512 resolution (optional 384*288 resolution)
Spectral range	7.5～14μm
NETD	50mK (@25℃ F1.0)
Focal length	25mm~105mm, 5X continuous zoom, auto focus
FOV	30°X23°~6.2°X4.6°
Image process	1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display 5. NUC correction: automatic / manual correction, background correction
Lens Control	1.Zooming: Electrical Zoom. 2.Focusing: Manual/Auto Focus 3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis.
Visible Camera System
Camera	1/2.8” star level CMOS, 0.05lux/0.01lux color to B/W CCD
	2 MP ,1920X1080
	Automatic ICR switch
	H.264/H.265 MPEG4/MIPEG
	32Kbps~16Mbps,60Hz30 FPS
Visible lens	8mm～320mm, 2MP, 40X zoom, auto focus
	Optical IR correction design, diurnal focus
Housing
Material	High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated
Structure	Integrated single-window design
Surface coating	PTA three-resistance coating, Seawater corrosion resistance
Temp. Control	Built-in thermostat, design of thermal equilibrium
Interface	Aviation waterproof plug
PTZ
Load Capacity	30kg
Range/Speed	Range:Pan: 0~360°, Tilt: +45°～-45°; Speed: Pan: 0.01～60°/S, Tilt: 0.01～30°/S
Preset	255
Scan	Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising.
Interface
Network Interface	RJ45
Network Protocol	Support TCP/IP, UDP, IPv4/v6; Support HTTP,RTP,RTSP,NFS,HDCP,NTP,SMTP,,PPPoE,DNS, FTP, Onvif
Power Supply	AC/DC24V, anti-reverse connection protection
Environment Parameter
Working/Storage Temp.	Working temperature: -25℃~+60℃(-40℃for optional); Storage temperature: -45℃~70℃
Seismic/Impact Resistance	0.2g/15g
Anti-lighting	Built-in auto Fuse-protected device, Power 4000V,Signal 2000V
Weight & Power Consumption
Weight: 35kg (include PT); Power consumption: 150W



Applications:

• Seaport and airport monitoring;
• Water system monitoring;
• Storage monitoring;
• Military base security monitoring;
• Oilfield & oil depot security;
• Fire source prevention & monitoring;
• Ecological and environmental monitoring;
• Border and coastal defense;
• Urban security and anti-UAV applications;
• Highways and railways monitoring.

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

FAQ:

A: The brand name of this product is Hope-Wish.

2. Q: What is the model number of this PTZ Thermal Imaging Camera?

A: The model number of this camera is HP-TVC.

3. Q: Where is this product made?

A: This product is made in China.

4. Q: What is the zoom capacity of this PTZ Thermal Imaging Camera?

A: This camera has a 30x optical zoom capacity.

5. Q: What is the temperature measurement range of this camera?

A: The temperature measurement range of this camera is -40°C to 1600°C.
