Product Details:
|
| Image Processing: | Digital Detail Enhancement | Pan: | 360° Continuous Rotation |
|---|---|---|---|
| Focus: | Auto/Manual | Type: | PTZ Thermal Imaging Camera |
| Humidity: | 95% RH | Zoom: | 20x Optical Zoom |
| Alarm: | Motion Detection, Temperature Alarm | Storage Temperature: | -30°C To +70°C |
| High Light: | Digital Detail Enhancement Thermal Ptz Camera,Dual Sensor Thermal Ptz Camera,Optical Zoom Thermal Ptz Camera |
||

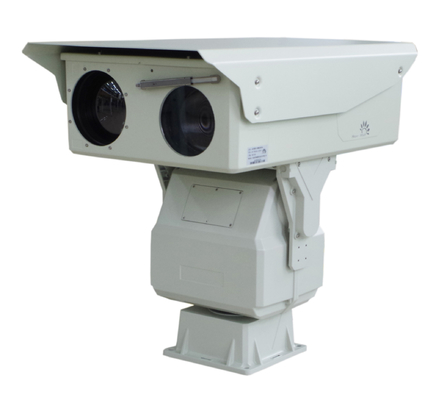

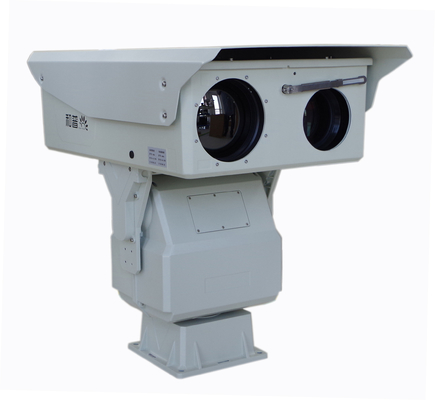

The HP-TTVC6516/4516B-2075-AFP-IP smart dual-band camera is based on the latest fifth-generation uncooled infrared technology and high-definition visible light imaging technology, designed for remote day and night monitoring. Infrared thermal imaging with high sensitivity 640 × 512 / 384 × 288 resolution 17μm ultra-fine resolution uncooled focal plane imaging detector, and AS optical technology designed miniaturized infrared lens, advanced digital circuits and image processing algorithms available Fine and smooth image; visible light adopts full HD color black and white dual mode low illumination CMOS sensor and 30 times compact continuous zoom lens, the volume of the whole machine is greatly reduced, which brings great convenience to users' installation applications, supplemented by 360 The full-scale pan/tilt can realize search and observation within 4000m. The internal industrial-grade embedded control electronic system realizes zooming, focusing, mode switching, pan/tilt/rotation high stability control of the camera, and the overall casing adopts super-strong aluminum alloy to achieve IP66 protection level, ensuring the equipment in the harsh environment in the field. Medium and long term operation.
The dual-band camera can be equipped with an ultra-homogenizing near-infrared laser as the illumination source. With the high-definition low-illuminance camera, it can observe the details of the nighttime thermal image, and form the three-band of infrared thermal image detection, visible light and near-infrared laser day and night recognition. The camera is suitable for monitoring long-distance targets under all weather conditions. It can also be equipped with sensor accessories such as laser ranging, Beidou/GPS, and electronic compass, which can obtain accurate positioning information of long-distance targets and scenes, and constitute a multi-range situation-aware remote monitoring device.
The dual-band camera can also cooperate with the dedicated DF200 key area prevention platform software to realize regional intrusion detection, cross-border intrusion detection, multi-scene group cruise detection, 3D frame selection zoom/positioning, target automatic tracking, panoramic stitching, radar linkage and other intelligent Features that automate unattended.
The dual-band camera has built-in intelligent hot spot detection algorithm, which can automatically detect long-distance flame, vehicle, personnel and other heat source targets, and can realize fire source detection and alarm display within the range of 2000m. With the dedicated FR4000 fire warning platform software, it can realize automatic control scanning, automatic processing of alarm information, alarm record, automatic calculation of calibration fire position, virtual police zone management, GIS map information display, meteorological data access, hierarchical management, fire Specialized functions such as dynamic evolution and rescue strategy are very suitable for remote monitoring and early warning of fire prevention such as forest fire prevention, animal husbandry and grassland, coal mine and large granary.
worth considering.
1. It integrates infrared thermal image, high-definition visible light, video coding, pan/tilt cover and control electronic system. It has integrated design, high concentration and easy installation and use.
Excellent non-uniform image correction technology with good image uniformity and dynamic range;
10.Based on the IP network design, a network cable can realize the interactive transmission of all video, alarm data and positioning data. The system networking and implementation are simple;
11. The whole machine adopts super-strong aluminum alloy casing, IP66 protection, anti-rain, anti-dust, and can adapt to various harsh environments.
12. Optional: laser illuminator for detailed observation of targets discovered by nighttime thermal imaging, a three-band camera that constitutes infrared thermal image detection, visible light and near-infrared laser day and night recognition;
13. Optional: laser ranging, Beidou/GPS, electronic compass and other sensors to form a multi-person situational awareness remote monitoring device;
| Model | TTVC6516B-2075-AFP-IP | TTVC4516B-2075-AFP-IP | |
| Detection |
Vehicle 13,000 m Human 4,800 m For fire 6,000 m (2m X 2m ) |
||
| Recognition | Vehicle 3,400 m Human 1,300 m | ||
| Sensor | 5th generation UFPA VOx sensor | ||
| Resolution | 640*512 | 384*288 | |
| Spectral response | 7.5～14μm | ||
| NETD | 50mK(@25℃ F1.0) | ||
| Focal length | 31～155 mm | ||
| FOV | 20°×15°～4°×3° | 12.4°×9.3°～2.5°×1.8° | |
| Lens control |
1. Zoom: Electric zoom 2. Focus: manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed 3. Optical machine: 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus and small axis in the zoom process |
||
| Image Processing |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display 5. NUC correction: automatic / manual correction, background correction |
||
| Visible Camera |
1. 1/1.8'' target surface star-level CMOS, integrated ICR dual filter day and night switching 2. Resolution: 2 Mega pixels, 1920×1080 3. Illumination: color: 0.001 Lux; black and white: 0.0001Lux 4. Encoding: H.265/H.264 video format, support multi-stream 5. Video bit rate: 32Kbps ~ 16Mbps, 60Hz 30 frames / sec 6. Support SD card local storage, support mobile detection, occlusion alarm, cross-border detection, area intrusion detection, face detection 7. Support AFR anti fog, electronic stabilization, white balance, electronic shutter, strong light suppression, 3D digital noise reduction, wide dynamic, anti-infrared overexposed, ABF automatic rear coke adjustment function |
||
| Visible Lens |
1. Focal length: 22~750mm, 200 Megapixel, electric zoom (optional 12.5~750mm lens) 2. Infrared correction: Optical infrared correction design, day and night focus consistent 3. Focus: Manual/Auto Focus, 3A Adaptive active Focus algorithm, support a variety of trigger modes, accurate high-speed 4. Automatic aperture: Support 5. Day and night Light: 0.4-0.75um visible Wide Spectral window and 0.8-0.95um near infrared laser narrow spectrum window clock independent double-pass light window to improve the signal-to-noise ratio of imaging light and stray light 6. Preset Position: Precision potentiometer, zoom focus Feedback |
||
|
Laser Source (optional) |
1. Power: 15 W 2. Wavelength: 810nm military grade infrared laser 3. Illumination angle: 0.5 ° ~ 20 °, DSS digital step lighting angle control technology 4. Homogenization: GHT-II high-definition lens group ultra-homogenization patented technology, brightness balance of all focal lengths is > 92% 5. Laser safety: ZQB safety laser beam processing patent technology, in line with international IEC60825 safety standards |
||
| Housing |
1.Material: integral aluminum alloy housing, stainless steel, anti strong wind ; 2.Structure: Integral double window 3.Window glass: 4mm optical glass ,transmission＞98% ； 4.Surface coating: PTA three-proofing coatings , 5.Protection:IP66(IP67 optional ) 6.Applied thermal balance design and wide temperature electronics ,which could operate under high / low temperature ; 7.Interface : waterproof aviation connector ; |
||
| PT |
1. Load: 50kg PTZ 2. Range: Pan 0 ~ 360 °, Tilt -45 ° ~ +45 ° 3. Speed: horizontal 0.01 ° / S ~ 30 ° / S, pitch 0.01 ° / S ~ 15 ° / S, support lens focal length speed adaptive function 4. Preset position: 255, support lens zoom, focus preset 5. Accuracy: ±0.1° 6. Patrol sweep: support 6 cruises, 1 apple peel, 1 line sweep 7. Watch: Preset / Auto Cruise Route / Auto Scan Route 8. Power-off memory: support (recoverable position before power-off, preset position status, cruise status, line sweep status) 9. Bearing information: support angle query return, positioning 10. Zero point correction: support north direction zero point remote correction function 11. Power consumption: about 120W 12. Weight: 23kg |
||
| Interface |
1. Network interface: 1 way RJ45, 10/100 Base-T adaptive (integrated video output and RS422/485 control communication) 2. Network protocol: support TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2. 0, GB28181 and other network protocols 3. Power supply: AC/DC24V, anti-reverse protection 4. Physical interface: alloy waterproof aviation plug |
||
| Enhanced Function |
1. Glare protection: support, anti-sun burn function 2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature 3. Scene mode: support multiple configuration scenarios, adapt to no environment application 4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes 5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes 6. Lens servo: support lens preset position, focal length return, focus positioning function 7. Parameter setting: OSD menu remote call operation 8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance |
||
| Power & Weight |
1. Total power consumption: 120W 2. Total weight: 25kg (including Pan/Tilt) |
||
| Environment indicator |
1. Working temperature: -25 ℃~ +60℃ (optional -40 ℃) 2. Storage temperature: -45℃ ~ + 70 ℃ 3. Humidity: <90% 4. Earthquake resistance: 0.2g (according to the 5.4 severity level 2 of GB/T15211-2013) 5. Impact resistance: 15g (according to the 5.3 severe level 3 of GB/T15211-2013) 6. Lightning protection: built-in surge protection of interface circuit, power supply 4000V, signal 2000V 7. Anti-salt fog: at pH 6.5 ~ 7.2, continuous spraying for 96 hours, no change in surface Protection level: IP66 |
||
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
What is the brand name of this thermal imaging camera?
The brand name of this thermal imaging camera is Hope-Wish.
2.What is the model number of this thermal imaging camera?
The model number of this thermal imaging camera is HP-TVC.
3.Where is this thermal imaging camera manufactured?
This thermal imaging camera is manufactured in China.
4.What is the resolution of the thermal imaging camera?
The resolution of the thermal imaging camera is 640 x 512.
5.What is the zoom capability of this thermal imaging camera?
This thermal imaging camera has a 30x optical zoom and a 16x digital zoom.
