Product Details:
|
| Resolution: | 640x512 | Type: | PTZ Thermal Imaging Camera |
|---|---|---|---|
| Humidity: | 95% RH | Tilt: | 90° |
| Image Processing: | Digital Detail Enhancement | Sensor: | Thermal Sensor |
| Pan: | 360° Continuous Rotation | Operating Temperature: | -20°C To +60°C |
| High Light: | 640x512 Thermal PTZ Camera,Digital Detail Enhancement Thermal PTZ Camera,Dual Sensor Thermal PTZ Camera |
||

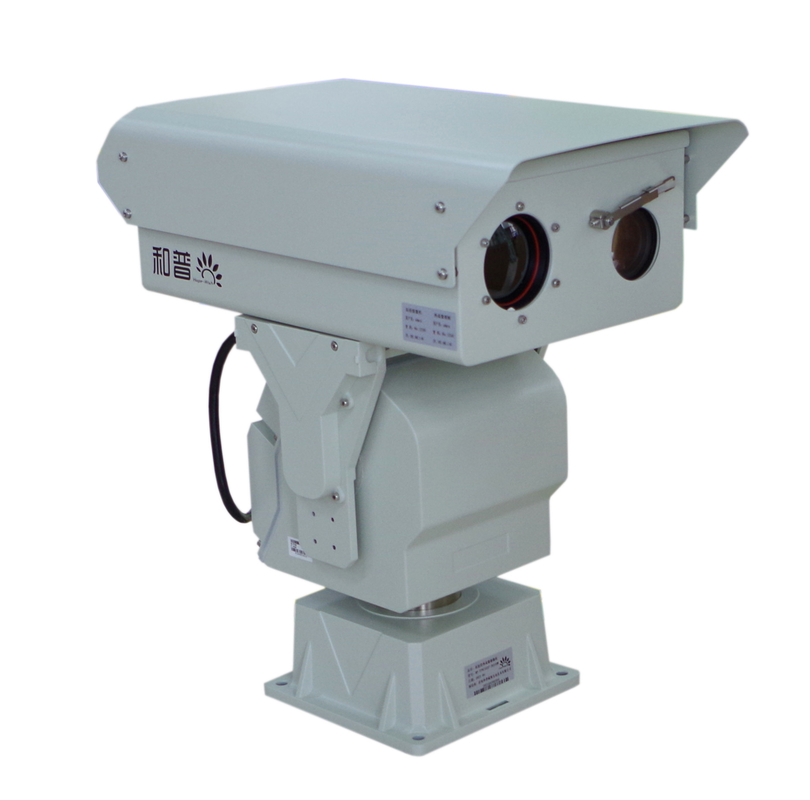

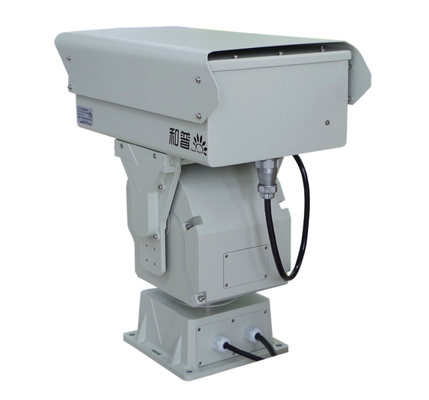

The HP-TTVC6516-2075 smart dual-band camera is based on the latest fifth-generation uncooled infrared technology and high-definition visible light imaging technology, designed for remote day and night monitoring. Infrared thermal imaging with high sensitivity 640 × 512 / 384 × 288 resolution 17μm ultra-fine resolution uncooled focal plane imaging detector, and AS optical technology designed miniaturized infrared lens, advanced digital circuits and image processing algorithms available Fine and smooth image; visible light adopts full HD color black and white dual mode low illumination CMOS sensor and 30 times compact continuous zoom lens, the volume of the whole machine is greatly reduced, which brings great convenience to users' installation applications, supplemented by 360 The full-scale pan/tilt can realize search and observation within 4000m. The internal industrial-grade embedded control electronic system realizes zooming, focusing, mode switching, pan/tilt/rotation high stability control of the camera, and the overall casing adopts super-strong aluminum alloy to achieve IP66 protection level, ensuring the equipment in the harsh environment in the field. Medium and long term operation.
The dual-band camera can be equipped with an ultra-homogenizing near-infrared laser as the illumination source. With the high-definition low-illuminance camera, it can observe the details of the nighttime thermal image, and form the three-band of infrared thermal image detection, visible light and near-infrared laser day and night recognition. The camera is suitable for monitoring long-distance targets under all weather conditions. It can also be equipped with sensor accessories such as laser ranging, Beidou/GPS, and electronic compass, which can obtain accurate positioning information of long-distance targets and scenes, and constitute a multi-range situation-aware remote monitoring device.
Excellent non-uniform image correction technology with good image uniformity and dynamic range;
| Model | HP-TTVC6516-2075 |
| Detection |
Vehicle 13,000 m Human 4,800 m For fire 6,000 m (2m X 2m ) |
| Recognition | Vehicle 3,400 m Human 1,300 m |
| Sensor | 5th generation UFPA VOx sensor |
| Resolution | 640*512 |
| Spectral response | 7.5～14μm |
| NETD | 50mK(@25℃ F1.0) |
| Focal length | 31～155 mm |
| FOV | 20°×15°～4°×3° |
| Lens control |
1. Zoom: Electric zoom 2. Focus: manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed 3. Optical machine: 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus and small axis in the zoom process |
| Image Processing |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display 5. NUC correction: automatic / manual correction, background correction |
| Visible Camera |
1. 1/1.8'' target surface star-level CMOS, integrated ICR dual filter day and night switching 2. Resolution: 2 Mega pixels, 1920×1080 3. Illumination: color: 0.001 Lux; black and white: 0.0001Lux 4. Encoding: H.265/H.264 video format, support multi-stream 5. Video bit rate: 32Kbps ~ 16Mbps, 60Hz 30 frames / sec 6. Support SD card local storage, support mobile detection, occlusion alarm, cross-border detection, area intrusion detection, face detection 7. Support AFR anti fog, electronic stabilization, white balance, electronic shutter, strong light suppression, 3D digital noise reduction, wide dynamic, anti-infrared overexposed, ABF automatic rear coke adjustment function |
| Visible Lens |
1. Focal length: 22~750mm, 200 Megapixel, electric zoom (optional 12.5~750mm lens) 2. Infrared correction: Optical infrared correction design, day and night focus consistent 3. Focus: Manual/Auto Focus, 3A Adaptive active Focus algorithm, support a variety of trigger modes, accurate high-speed 4. Automatic aperture: Support 5. Day and night Light: 0.4-0.75um visible Wide Spectral window and 0.8-0.95um near infrared laser narrow spectrum window clock independent double-pass light window to improve the signal-to-noise ratio of imaging light and stray light 6. Preset Position: Precision potentiometer, zoom focus Feedback |
|
Laser Source (optional) |
1. Power: 15 W 2. Wavelength: 810nm military grade infrared laser 3. Illumination angle: 0.5 ° ~ 20 °, DSS digital step lighting angle control technology 4. Homogenization: GHT-II high-definition lens group ultra-homogenization patented technology, brightness balance of all focal lengths is > 92% 5. Laser safety: ZQB safety laser beam processing patent technology, in line with international IEC60825 safety standards |
| Housing |
1.Material: integral aluminum alloy housing, stainless steel, anti strong wind ; 2.Structure: Integral double window 3.Window glass: 4mm optical glass ,transmission＞98% ； 4.Surface coating: PTA three-proofing coatings , 5.Protection:IP66(IP67 optional ) 6.Applied thermal balance design and wide temperature electronics ,which could operate under high / low temperature ; 7.Interface : waterproof aviation connector ; |
| PT |
1. Load: 50kg PTZ 2. Range: Pan 0 ~ 360 °, Tilt -45 ° ~ +45 ° 3. Speed: horizontal 0.01 ° / S ~ 30 ° / S, pitch 0.01 ° / S ~ 15 ° / S, support lens focal length speed adaptive function 4. Preset position: 255, support lens zoom, focus preset 5. Accuracy: ±0.1° 6. Patrol sweep: support 6 cruises, 1 apple peel, 1 line sweep 7. Watch: Preset / Auto Cruise Route / Auto Scan Route 8. Power-off memory: support (recoverable position before power-off, preset position status, cruise status, line sweep status) 9. Bearing information: support angle query return, positioning 10. Zero point correction: support north direction zero point remote correction function 11. Power consumption: about 120W 12. Weight: 23kg |
| Interface |
1. Network interface: 1 way RJ45, 10/100 Base-T adaptive (integrated video output and RS422/485 control communication) 2. Network protocol: support TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2. 0, GB28181 and other network protocols 3. Power supply: AC/DC24V, anti-reverse protection 4. Physical interface: alloy waterproof aviation plug |
| Enhanced Function |
1. Glare protection: support, anti-sun burn function 2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature 3. Scene mode: support multiple configuration scenarios, adapt to no environment application 4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes 5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes 6. Lens servo: support lens preset position, focal length return, focus positioning function 7. Parameter setting: OSD menu remote call operation 8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance |
| Power & Weight |
1. Total power consumption: 120W 2. Total weight: 25kg (including Pan/Tilt) |
| Environment indicator |
1. Working temperature: -25 ℃~ +60℃ (optional -40 ℃) 2. Storage temperature: -45℃ ~ + 70 ℃ 3. Humidity: <90% 4. Earthquake resistance: 0.2g (according to the 5.4 severity level 2 of GB/T15211-2013) 5. Impact resistance: 15g (according to the 5.3 severe level 3 of GB/T15211-2013) 6. Lightning protection: built-in surge protection of interface circuit, power supply 4000V, signal 2000V 7. Anti-salt fog: at pH 6.5 ~ 7.2, continuous spraying for 96 hours, no change in surface Protection level: IP66 |
This PTZ Thermal Imaging Camera features a thermal camera module and thermal infrared camera for accurate temperature readings. It is ideal for use in a variety of conditions, with an operating temperature range of -20°C to +60°C. The camera offers 360° continuous rotation and 20x optical zoom, with a resolution of 640x480 and a frame rate of 30 Hz. It also includes digital detail enhancement for improved image processing.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
The HP-TVC is suitable for both indoor and outdoor use, and its 360° continuous rotation feature allows for complete coverage of large areas. This makes it an excellent choice for monitoring large warehouses, parking lots, and other areas where a wide field of view is needed.
A: The brand name of this product is Hope-Wish.
Q: What is the model number of this PTZ Thermal Imaging Camera?
A: The model number of this product is HP-TVC.
Q: Where is this PTZ Thermal Imaging Camera manufactured?
A: This product is manufactured in China.
Q: What is the optical zoom range of this PTZ Thermal Imaging Camera?
A: This product has a 36x optical zoom range.
Q: What is the resolution of the thermal imaging sensor in this PTZ Thermal Imaging Camera?
A: The thermal imaging sensor in this product has a resolution of 640x480.
