Product Details:
|
| Weight: | 2.5kg | Minimum Focus Distance: | 1.5m |
|---|---|---|---|
| Spectral Range: | 7.5μm To 14μm | Field Of View: | 25° |
| Image Frequency: | 9Hz | Detection Range: | 12km |
| Focus Type: | Manual | Power Supply: | DC12V |
| High Light: | IOT Smart Thermal Camera,Multi-Sensor Thermal Camera,Manual Focus Thermal Camera |
||

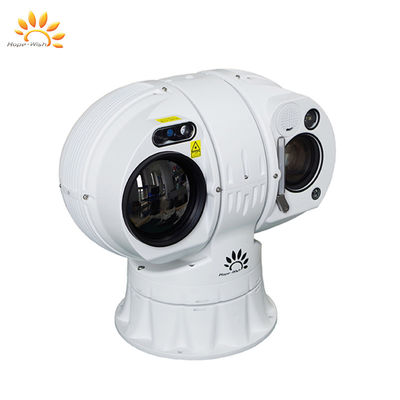

The Long Range Thermal Camera is a must-have tool for anyone who needs to capture thermal images from long distances. Whether you are a professional photographer, a security expert, or a search and rescue professional, this camera is designed to help you capture clear and accurate images of your subject. With its advanced features and powerful lens, the Long Range Thermal Camera is the perfect tool for anyone who needs to capture thermal images from a distance.
This Long-Distance Thermal Camera product features a spectral range of 7.5μm to 14μm, Ethernet interface, DC12V power supply, temperature range of -40°C to +550°C, and a minimum focus distance of 1.5m.
| Model | HP-DMS10-4300-100 |
| Detection |
vehicles:8400m human: 3200m fire point (@2x2m): 5000m |
| Recognition |
vehicles:2400m human: 1000m |
| Thermal imaging Camera |
1.Detector: The sixth generation uncooled focal plane array VOx detector 2. Wavelength: 8～14μm 3. NETD:40mK(@25℃ F1.0) 4. Lens: 100mm 5. Image enhancement: SDE digital image enhancement technology, enhance the details of the image, support 255 thermal image enhancement adjustment 6.Pseudo-color polarity: 16 kinds of pseudo-color images, hot black/hot white 7.Image parameters: AGC automatic gain control, brightness, contrast 8.Electronic zoom: 1.0～8.0×continuous zoom (step length 0.1), support global eagle eye diagram 9. Ranging ruler: support for range finding ruler 10.Dead pixel correction: support the function of dead pixel correction 11.Image correction: support manual correction, background correction, automatic correction time interval, adjustable Gamma correction parameters 12.Strong light protection: support anti-sun damage 13.Non-uniformity correction: automatic/hand |
| Resolution | Pixel:384×288 |
| Visible Camera |
1.Sensor type: back-illuminated ultra-low illumination starlight CMOS 2.Minimum illumination: color: 0.0005Lux @ black and white: 0.0001Lux @ 0Lux(IRON) 3.Lens:7mm～330mm, 47 times optical zoom,16 times digital zoom. 4.Image processing: white balance, electronic shutter, frame accumulation, backlight compensation, glare suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic. 5.Day and night light: 0.4-0.75um visible light wide spectral window and 0.8-0.95um near-infrared spectral window day and night independent double light window, improve the signal-to-noise ratio of imaging light and stray light 6.Support electronic fog penetration and optical fog penetration |
|
Laser illuminator |
1.Laser Homogenization: new infrared GHT-III HD flood light source, no scattered particles 2.Laser angle: 3°~65° switchable 3.Laser distance: 300m |
| Video audio |
1.Thermal camera resolution:support 1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 2.Visible camera resolution:2592×1520；2560×1440；1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 3.Video encoding: H.265/H.264/MJPEG,multi-stream support 4.Video code rate:32Kbps～16Mbps 5.Audio encoding:G.711A/ G.711U/G726 6.Image flip: left and right / up and down / diagonal 7.OSD settings: Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings |
| Intelligent functions |
1. Fire detection alarm: threshold 255 levels, target size, number of targets 1-16 can be set, automatically select the most prominent target display, hot spot tracking 2. Intelligent analysis: support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering filtering function; support target temperature filtering filtering function 3. Automatic tracking: support single scene tracking/support multi-scene tracking/support panoramic tracking/support alarm linkage tracking 4. Intelligent information fusion: support 512 AR intelligent information fusion, support fire point, intelligent analysis of the recording logo information fusion, support orientation angle, field of view angle, focal length, multiplier information fusion 5.Image fusion: support 18 kinds of double light fusion mode, support picture-in-picture function 6.Alarm management: support for alarm capture and upload |
| Enhanced Features |
1. Distance measurement: support passive distance measurement; support optional laser distance measurement. 2. Support sound and light alarm: internal integrated tweeter + flashing light, support alarm sound customization. 3. Support alarm linkage fire fighting device. 4. Camera diagnostic functions: support disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card), video masking alarm, anti-sun damage (support threshold, masking time can be set). 5. Whole life management: health index record function, support working time, shutter count, working temperature, limit temperature, etc.; zoom lens and head each motor working cumulative time, etc. 6. Support disconnection renewal. 7. Power failure memory: support can restore the position before power failure, preset point state, cruise state, line sweep state. 8. Remote maintenance: with fault query, self-test, remote restart function; online upgrade, remote upgrade. 9. Key frame setting: support key frame interval 100 levels adjustable. 10. Configuration file: support configuration file import and export function. 11. Web access: support WEB full function configuration, remote online upgrade. |
| PT |
1. Rotation speed: Horizontal: 0.01°/s～100°/s; Pitch: 0.01°/s～80°/s, support focal speed adaption. 2. Rotation angle: horizontal: 360° continuous rotation; pitch: -90°～+90° 3. Structure material: quasi-spherical design of micro-rotary, integrated 5-window multi-channel, fine cast high strength aluminium alloy material. 4. Window glass: infrared/visible high efficiency optical glass, clean film coating. 5. Surface coating: PTA triple anti-corrosion coating, anti-corrosion. 6. Wiper: support intelligent automatic wiper 7. Defrost: visible window defrost 8. Preset position cruise: 3000 preset positions, support 16 cruise routes, each can support 256 preset positions 9. Watch function: preset bit / pattern scan / cruise scan / vertical scan / frame scan / panorama scan / apple skin scan / horizontal fan sweep line scan 10. Support 3D frame selection zoom 11. Orientation information: support angle query/real-time return and positioning; support lens field of view return and positioning 12. Zero point correction: support northward zero point remote correction function |
| Electrical interface |
1. Communication and control: 1 *RJ45 Ethernet port; 2* alarm inputs, 1 *alarm output; 1 *audio input input, 1 *RS485 interface. 2. Protocol: Support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocols; support ONVIF and GB28181 protocols. 3. Development interface: Support HP-SDK secondary development |
| Enhanced Function |
1. Glare protection: support, anti-sun burn function 2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature 3. Scene mode: support multiple configuration scenarios, adapt to no environment application 4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes 5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes 6. Lens servo: support lens preset position, focal length return, focus positioning function 7. Parameter setting: OSD menu remote call operation 8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance |
| Safety control |
1. Support illegal access alarm: the number of illegal access, lock time can be set.
|
| Power supply |
1. Working voltage: DC 9~36V, external AC220V or battery power adapter
|
| Environmental adaptation |
1. Working temperature: -40℃～60℃
|
| Volume weight |
1. Weight: ≤10kg
|
Overall, the Hope-Wish HP-DMS Long Range Thermal Camera is a versatile and powerful tool that can be used in a variety of occasions and scenarios. Its manual focus and zoom lens, along with its Ethernet interface and 9Hz image frequency, make it an excellent choice for anyone in need of a reliable and high-quality thermal imaging camera.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Thank you for purchasing our Thermal Imaging Binoculars. To ensure the safe delivery of your product, we have carefully designed our packaging and shipping process. Please read the following information before opening your package.
Our Thermal Imaging Binoculars will be packaged in a sturdy cardboard box to protect them during transit. The box will be sealed with strong packing tape to prevent any damage or tampering.
Inside the box, you will find your binoculars wrapped in a layer of protective foam. This foam will provide additional cushioning and shock absorption during shipping.
Please handle the box with care and do not use any sharp objects to open it, as this may cause damage to the contents inside.
We will ship your Thermal Imaging Binoculars using a reputable courier service, such as UPS or FedEx. The estimated delivery time will depend on your location, but we will provide you with a tracking number so you can monitor the progress of your package.
For international orders, please note that additional customs fees or taxes may apply. These fees are the responsibility of the buyer and will not be covered by our company.
If you have any questions or concerns about the packaging or shipping of your Thermal Imaging Binoculars, please do not hesitate to contact us.
Thank you again for choosing our product. We hope you enjoy your new Thermal Imaging Binoculars!
Looking for a customized Long Range Thermal Camera? You've come to the right place! Our Hope-Wish HP-DMS Long Range Thermal Camera is the perfect solution for your needs. Made in China, this camera can detect temperatures ranging from -40°C to +550°C with a minimum focus distance of 1.5m. With a detection range of 1.2km, this Long-Distance Thermal Camera is perfect for long-range surveillance. The image frequency of 9Hz ensures that you get real-time footage of the target area. Weighing only 2.5kg, this Thermal Imaging Camera is lightweight and easy to carry around. Contact us to discuss your customization requirements today!
Our Long Range Thermal Camera product comes with comprehensive technical support and services to ensure the best possible user experience:
Our expert technical support team is always available to assist with any questions or issues that arise, and our services are designed to maximize the value of your Long Range Thermal Camera investment.
