Product Details:
|
| Feature: | Automatic Exposure | Laser: | 808nm NIR |
|---|---|---|---|
| Operating Temperature: | -20°C To 60°C | Video Compression: | H.264 |
| Consumption: | 5W, 808nm,NIR | Pan Range: | 360 Degrees |
| Tilt Range: | 90 Degrees | Compatibility: | Support ONVIF,GB/T28181 |
| High Light: | 360° Pan Range Thermal Camera module,Surveillance Thermal Camera module,Ptz Dual Sensor T Shape Camera |
||
Key Benefits:
· Long range 24-hours monitoring.
· Delicate and smooth images．
· Convenient for installation and application.
· 360 degree of Omni-directional Pan-Tilt
· Super-strong aluminum alloy with IP66
· Higher sensitivity
· Effective in all environments
· Small size and low weight

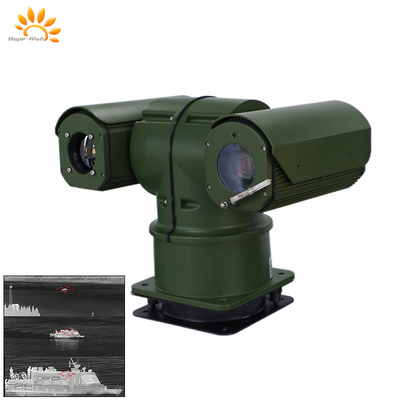

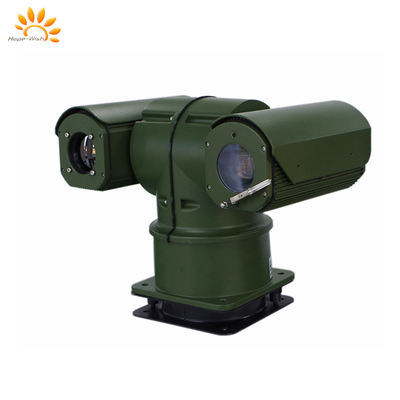

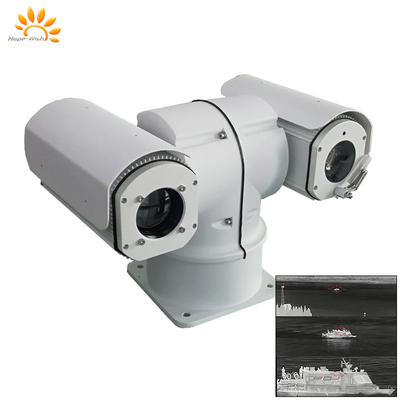

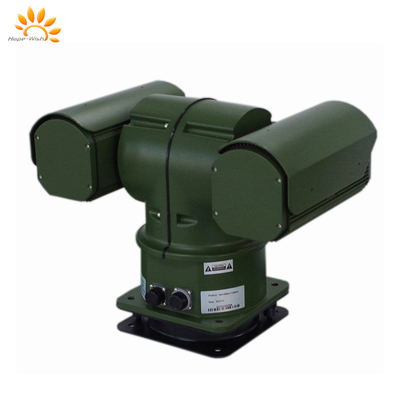

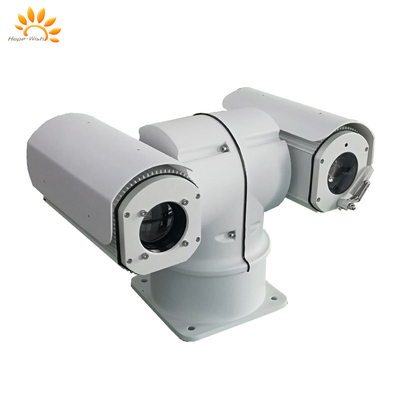

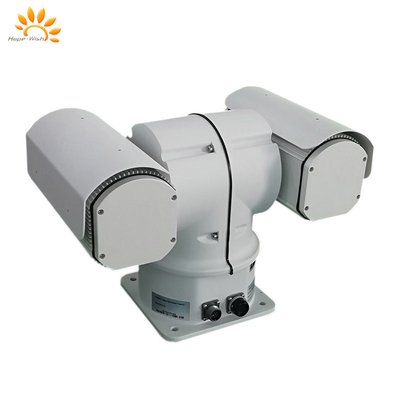

The PTZ Infrared Camera is built to withstand tough conditions, with an IP66 rating that ensures it is protected from dust and water damage. This makes it ideal for use in outdoor environments where it may be exposed to harsh weather conditions.
The camera's infrared technology allows it to capture clear images even in low-light conditions, making it an ideal solution for night-time surveillance. Its H.264 video compression technology ensures that video files are compressed without compromising on quality, making it easier to store and manage large amounts of footage.
Whether you are looking for a reliable security solution for your home or business, the PTZ Infrared Camera is an excellent choice. Its advanced features and durable construction make it a valuable investment that will provide you with peace of mind and exceptional surveillance coverage for years to come.
· VOx uncooled detector, 384*288 (640*512);
· NETD is less than 50mk (@25℃F1.0);
· SDE digital image processing, AGC, 2X digital amplification;
· 10 pseudo color and B/W, B/W inverse;
· Intelligent functions: cross-border/ intrusion detection and target tracking;
· 255 level alarm threshold can be setup
· Advanced algorithm support shot-point/ fire detection and alert;
· One integral aluminum alloy housing, water proof, IP66 weather proof, anti-dust.
| Model | HP-BTVC6105-1930 |
| Detection | Vehicle: 4,200m / Human: 1,640m |
| Identification | Vehicle: 1,200m / Human: 470m |
| Thermal Camera | |
| Sensor | 5th generation FPA VOx Detector |
| Resolution | 384 × 288 pixel(optional 640 × 512 pixel) |
| Spectral range | 7.5～14μm |
| NETD | 50mK (@25℃ F1.0) |
| Focal length | 50mm F1.0 |
| Field of view(horizontal) | 7.4° X 5.6°(optional 12° X 9°) |
| Visible Camera | |
| Imaging Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 2 Mega pixels, 1920 x 1080 |
| Illumination | 0.05 Lux high sensitive color, 0.01 Lux black and white |
| Video Bit Rate | 32Kbps-16Mbps, 60Hz 30 frames/second, ABF auto adjustment |
| Focal Length | 4.5 - 135mm 30X zoom, 2 Megapixel electric focus |
| PTZ | |
| Duty | 10 kg |
| Rotation | Pan: 0 - 360° continuously,Tilt: +90°～- 90° |
| Rotation speed | Rotation speed:Pan: 0.01～100°/S,Tilt: 0.01～60°/S, support lens focusing speed adaptive |
| Accuracy | ±0.1° |
| Preset | 255 presets, support lens zooming and focusing preset |
| Mode | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising |
| Network | |
| Network interface | RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485) |
| Network Protocol | TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol. |
| Environment Parameter | |
| Operating temperature | -25℃~+60℃(-40℃ Optional) |
| Storage temperature | -45℃～70℃ |
| Protection Level | IP66 |
| General | |
| Total Consumption | 50W |
| Power supply | AC/DC24V, anti-reverse connection protection |
| Weight | ≤8.5 kg (include PTZ) |
· Seaport and airport monitoring;
· Water system monitoring;
· Storage monitoring;
· Military base security monitoring;
· Oilfield & oil depot security;
· Ecological and environmental monitoring;
· Border and coastal defense;
· Highways and railways monitoring.
Our PTZ Infrared Camera product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to assist with any technical issues or questions that may arise during the product's use.
We offer a range of services, including installation support, software updates, and troubleshooting assistance. Our technical support team is available 24/7 to provide prompt and effective solutions to any issues that may arise.
In addition, we offer training and education resources to help customers get the most out of their PTZ Infrared Camera. Our team can provide on-site or remote training to ensure that customers are comfortable with the product's features and functions.
Our goal is to provide exceptional technical support and services to our customers, so they can enjoy the full benefits of our PTZ Infrared Camera product.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Q: What is the brand name of the PTZ Infrared Camera?
A: The brand name of the PTZ Infrared Camera is Hope-Wish.
Q: What is the model number of the PTZ Infrared Camera?
A: The model number of the PTZ Infrared Camera is HP-BTVC.
Q: Where is the PTZ Infrared Camera manufactured?
A: The PTZ Infrared Camera is manufactured in China.
Q: Does the PTZ Infrared Camera have infrared capabilities?
A: Yes, the PTZ Infrared Camera has infrared capabilities.
Q: Is the PTZ Infrared Camera capable of panning, tilting, and zooming?
A: Yes, the PTZ Infrared Camera is capable of panning, tilting, and zooming.
