Product Details:
|
| Optical Zoom: | 30X | Compatibility: | Support ONVIF,GB/T28181 |
|---|---|---|---|
| Laser Angle: | 2°～50° | Laser: | 808nm NIR |
| Ip Rating: | IP66 | Tilt Range: | 90 Degrees |
| Pan Range: | 360 Degrees | Feature: | Automatic Exposure |
| High Light: | 30X Laser Camera PTZ,IP66 Laser Camera PTZ,HD ptz thermal camera |
||

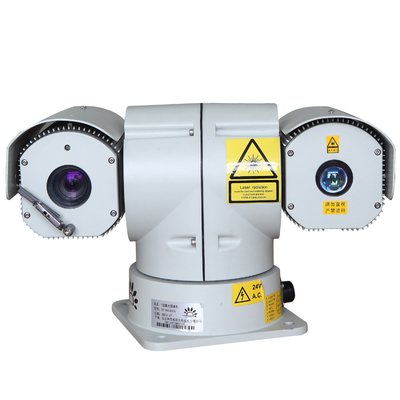

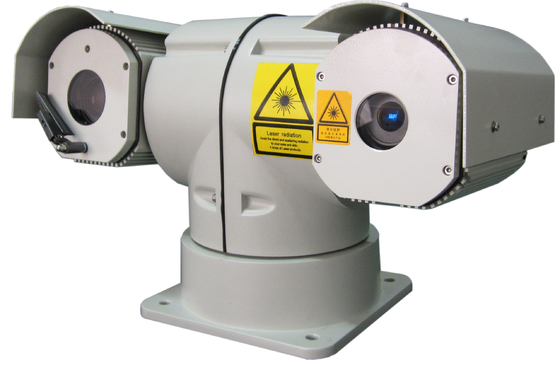

BRC19 series HD infrared laser camera consist of infrared laser illuminator, PTZ platform, precise gearing, 2.1 megapixel HD lens, digital decoder, CCD and CU. The mechanical design of PTZ is simple and stable.
BRC19 camera could rotate to the proposed position quickly and accurately. The camera has 128 preset, recording and patrol function and could preset anywhere. It also have automatic exposure, automatic focus function.
Our PTZ Infrared Camera is a highly advanced security camera that is designed to provide reliable and efficient surveillance. It is an excellent choice for those looking for IR Security Cameras that can handle various lighting conditions, and it offers a high level of protection against environmental factors. Overall, this camera is an ideal solution for anyone looking to improve their security and surveillance capabilities.
| Model | HP-BRC1930 |
| Detection | Day: 800m |
| Night: 300m~420m | |
| Sensor | 1/2.8'' B&W CCD, 2.1 MP, 1920X1080, automatic ICR switch |
| Encoding | Video compression: H.264, code stream 32k～16Mbps,support dual stream, the heart, smart restructuring, electronic shutter, white balance, 3D DNR, DWDR, automatic exposure, support SD card, motion detection, mask alarm |
| Image setting | Lightness, contrast radio, saturation |
| Lens |
4.3～129mm,30 optical zoom F1.6～F5.0 |
| FOV | 65°～2.3° |
| Min.Illumination | 0.005lux B/W0.05lux Color/ |
| Consumption | 5W,808nm ,NIR |
| Laser lens | 30mm F1.0 Fast lens,GHT-II homogenizing |
| Laser angle | 2°～50° |
| Angle control | DSS digital illumination control,30ms fast track response, min 0.1° illumination zooming, manual/automatic |
| Optical axis aiming | 0.01°SLM automatic axis automatic aiming and locking ,reserved external interface, maintaining without take out the case |
| Pan rotation | 0°~360° continuously |
| Tilt rotation | -45°~+45° |
| Rotation speed | Pan: 0°~100°/s,Tilt: 0°~80°/s |
| Preset | 128 |
| Line scan | 3 path(User could set up the starting point, destination and scanning speed) |
| Patrol | 6 path(each path have 16 point, staying time is adjustable) |
| Customized function | Customizable privacy shade, 3D box chosen magnification |
| Interface | RJ45,10M/100M adaptive Ethernet,TCP/IP,RTP/RTCP,HTTP |
| Compatibility | Support ONVIF,GB/T28181 |
| Heat/demisting/ wiper | Yes |
| Laser switch | Auto/manual |
| Ingress protection | IP66,anti-lighting,anti surge |
| Operational temp. | -35~55℃ |
| Power supply | AC24V/2.5A,DC12V/3.5A, common≤40W,peak≤60W |
| Weight | 7kg |
City security, oilfield monitoring, lake&river monitoring, expressway&railway monitoring, seaport&airport monitoring.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
The PTZ Infrared Camera product technical support and services include:
Our experienced technical support team is available to assist with any issues or questions you may have regarding the PTZ Infrared Camera product.
Q: What is the brand name of this PTZ Infrared Camera?
A: The brand name of this camera is Hope-Wish.
Q: What is the model number of this PTZ Infrared Camera?
A: The model number of this camera is HP-BRC.
Q: Where is this PTZ Infrared Camera manufactured?
A: This camera is manufactured in China.
Q: Does this PTZ Infrared Camera have infrared capability?
A: Yes, this camera has infrared capability.
Q: Is this PTZ Infrared Camera suitable for outdoor use?
A: Yes, this camera is suitable for outdoor use.
