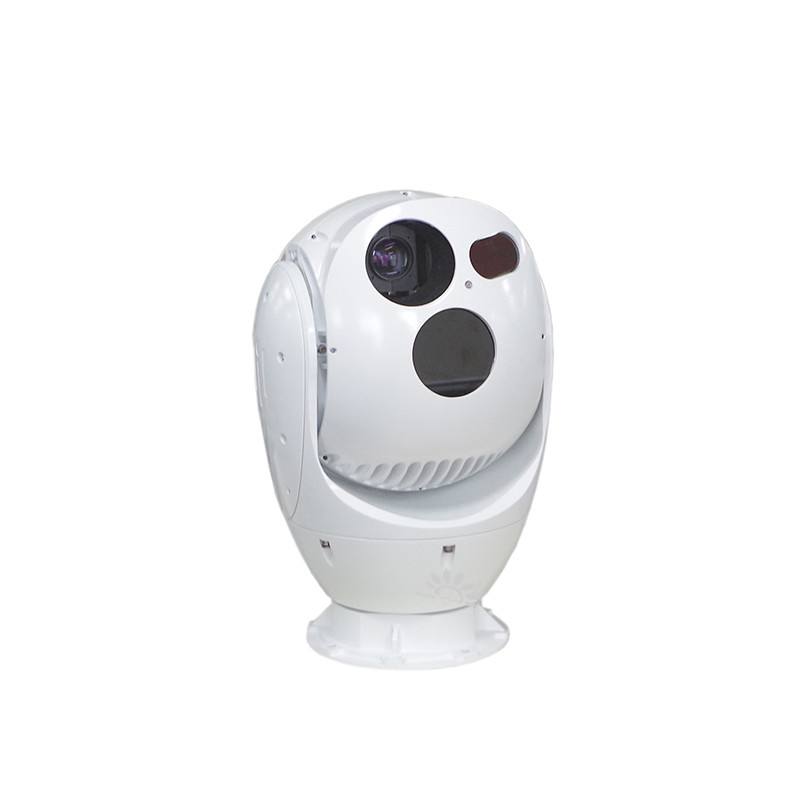

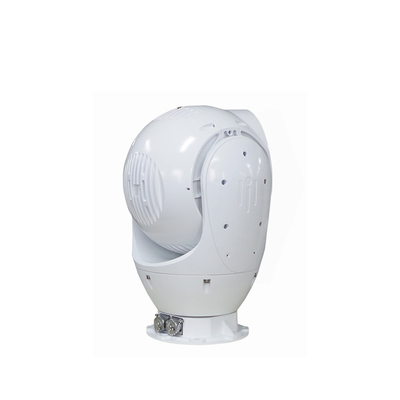

White Outdoor Long Range Thermal Imaging Camera Infrared Camera Module

White Outdoor Long Range Thermal Imaging Camera Infrared Camera Module
White Outdoor Long Range Thermal Imaging Camera Infrared Camera Module White Outdoor Long Range Thermal Imaging Camera Infrared Camera Module

Large Image :  White Outdoor Long Range Thermal Imaging Camera Infrared Camera Module

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-ZS20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: SGD250/SET
Packaging Details: wooden case
Delivery Time: 15-30
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 units per month

White Outdoor Long Range Thermal Imaging Camera Infrared Camera Module

Description
Detection: Vehicles:6500m Human: 2500m Fire Point (@2x2m): 3000m Recognition: Vehicles:1800m Human: 800m
Lens: 50mm Pixel: 384×288
High Light:

White Thermal Imaging camera

,

infrared module Thermal Imaging camera

,

Outdoor Long Range Thermal Imaging Camera

Key Benefits:

· Long range 24-hours monitoring.

· Delicate and smooth images.

· 360 degree of Omni-directional Pan-Tilt

· Higher sensitivity

· Effective in all environments

· Lightweight design: weight ≤ 18kg



Overview:

  • spherical low wind resistance design, strong wind resistance, low agitation.
  • IP66, and the special salt-spray protection design, the protection grade reaches C5-M level
  • slewing speed can reach 80 ° / s, the acceleration can reach 100 ° / s (high configuration can reach 120 ° / s), the start and stop is fast, the operation is smooth, which helps to quickly capture and track moving targets;
  • Horizontal speed: 0.1 ° ~ 80 ° / s Pitching speed: 0.1 ° ~ 80 ° / s



Applications:



Ship / shipboard video collection

Sea warning

Important target alert

Technical Specification:



Model HP-ZS20
Distance

Detection≥20km for ship

Recognition≥10km for ship



Visible

Light Camera

Resolution: 2 MP / 4 MP

Lens: 8~320mm

Lens control: Electric zoom, auto focus

Interface and Video Format: IP Network Output; H.265/H.264



Cooled

Thermal Camera (optional)

Detector: MWIR MCT detector

Resolution:640*512

Lens : 300mm zoom lens

Uncooled

Thermal Camera

Detector: uncooled FPA VOx

Resolution:640*512

Lens: 50mm/75mm/100mm continuous zoom lens

Laser Illuminator

Wave length:808nm

Consumption:5W

Laser Range Finder

Range: 50 ~ 3000m/5000m optional

Accuracy: ± 3m, frequency: 0.2Hz, Wave length: 1570nm

Rotation Range

Level: N* 360 ° (continuous)

Pitch: -90°~+90°

Rotation Speed

Level: 0.01 ° ~ 100 ° / s

Pitch: 0.01 ° ~ 80 ° / s

Gyro Stabilization 2-axis, <0.1°RMS
Size and Weight

Ф280mm×H430mm

Total weight: ≤18kg (including load)

Environmental

Indicators

Working temperature: -35℃~+55℃

(-40℃~+60℃ optional )

Company profile:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
White Outdoor Long Range Thermal Imaging Camera Infrared Camera Module 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
White Outdoor Long Range Thermal Imaging Camera Infrared Camera Module 1


White Outdoor Long Range Thermal Imaging Camera Infrared Camera Module 2
