Product Details:
|
Onvif: | Support | Ir Laser: | 808nm |
---|---|---|---|
Working Temperature: | -25℃~+55℃ (-40℃ Optional) | Resolution: | 1920x1080 |
Video Format: | H.264/MPEG4/MIPEG | Feature: | IP66 |
Connector: | Aviation Water-Proof Connector | Preset: | 80 (245 For Option) |
Highlight: | H.264 Infrared Thermal Imaging Camera,Long Range Infrared Camera IP66,Aviation Waterproof Connector Infrared Camera |
Key Benefits:
· Long range 24-hours monitoring.
· Delicate and smooth images.
· Convenient for installation and application.
· 360 degree of Omni-directional Pan-Tilt
· Super-strong aluminum alloy with IP66
· Higher sensitivity
· Effective in all environments
· Small size and low weight

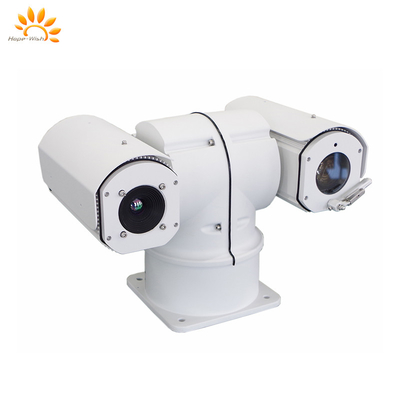

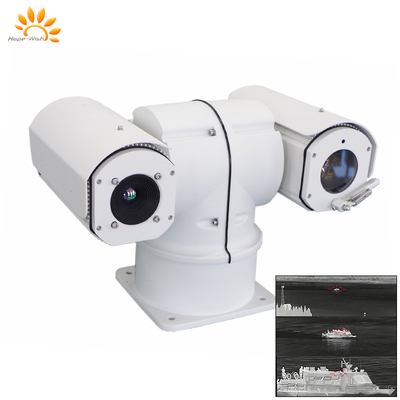

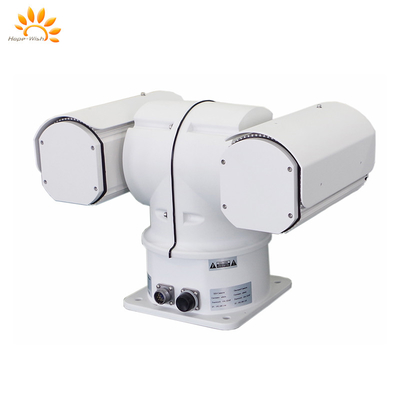

The Long Range Infrared Camera is compatible with the Onvif standard, which allows for seamless integration with other surveillance systems and devices. This makes it easier to manage and monitor your security footage from one central location.
The Infrared Camera is designed to handle a load duty of up to 50kg, making it suitable for heavy-duty use. It is built to withstand continuous operation, ensuring that your surveillance needs are always met.
Invest in the Long Range Infrared Camera today and experience the ultimate in surveillance technology. With its powerful Ir Laser, high resolution, long range detection, and durable design, it is the perfect solution for all your security needs.
· VOx uncooled detector, 384*288 (640*512);
· NETD is less than 50mk (@25℃F1.0);
· SDE digital image processing, AGC, 2X digital amplification;
· 10 pseudo color and B/W, B/W inverse;
· Intelligent functions: cross-border/ intrusion detection and target tracking;
· 255 level alarm threshold can be setup
· Advanced algorithm support shot-point/ fire detection and alert;
· One integral aluminum alloy housing, water proof, IP66 weather proof, anti-dust.
Model | HP-BTVC6102-1930 |
Detection | Vehicle: 1,700m / Human: 720m |
Identification | Vehicle: 420m / Human: 180m |
Thermal Camera | |
Sensor | 5th generation FPA VOx Detector |
Resolution | 384 × 288 pixel(optional 640 × 512 pixel) |
Spectral range | 7.5~14μm |
NETD | 50mK (@25℃ F1.0) |
Focal length | 20mm F1.0 |
Field of view(horizontal) | 18.5° X 13.9°(optional 30.4° X 23°) |
Visible Camera | |
Imaging Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
Resolution | 2 Mega pixels, 1920 x 1080 |
Illumination | 0.05 Lux high sensitive color, 0.01 Lux black and white |
Video Bit Rate | 32Kbps-16Mbps, 60Hz 30 frames/second, ABF auto adjustment |
Focal Length | 4.5 - 135mm 30X zoom, 2 Megapixel electric focus |
PTZ | |
Duty | 10 kg |
Rotation | Pan: 0 - 360° continuously,Tilt: +90°~- 90° |
Rotation speed | Rotation speed:Pan: 0.01~100°/S,Tilt: 0.01~60°/S, support lens focusing speed adaptive |
Accuracy | ±0.1° |
Preset | 255 presets, support lens zooming and focusing preset |
Mode | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising |
Network | |
Network interface | RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485) |
Network Protocol | TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol. |
Environment Parameter | |
Operating temperature | -25℃~+60℃(-40℃ Optional) |
Storage temperature | -45℃~70℃ |
Protection Level | IP66 |
General | |
Total Consumption | 50W |
Power supply | AC/DC24V, anti-reverse connection protection |
Weight | ≤8.5 kg (include PTZ) |
· Seaport and airport monitoring;
· Water system monitoring;
· Storage monitoring;
· Military base security monitoring;
· Oilfield & oil depot security;
· Ecological and environmental monitoring;
· Border and coastal defense;
· Highways and railways monitoring.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
