Product Details:
|
| Consumption: | 10W，808nm , NIR | Fog Penetration: | AFR, Optional For Fog Filter |
|---|---|---|---|
| Preset: | 80 （245 For Option） | Lens: | 25mm |
| Ir Laser: | 808nm | Ptz: | Load Duty：30kg |
| Dimensions: | 200mm X 100mm X 100mm | Video Format: | H.264/MPEG4/MIPEG |
| High Light: | Outdoor Long Range Ir Camera,Long Range Outdoor Camera Module,Long Range Infrared Laser Camera 10W |
||

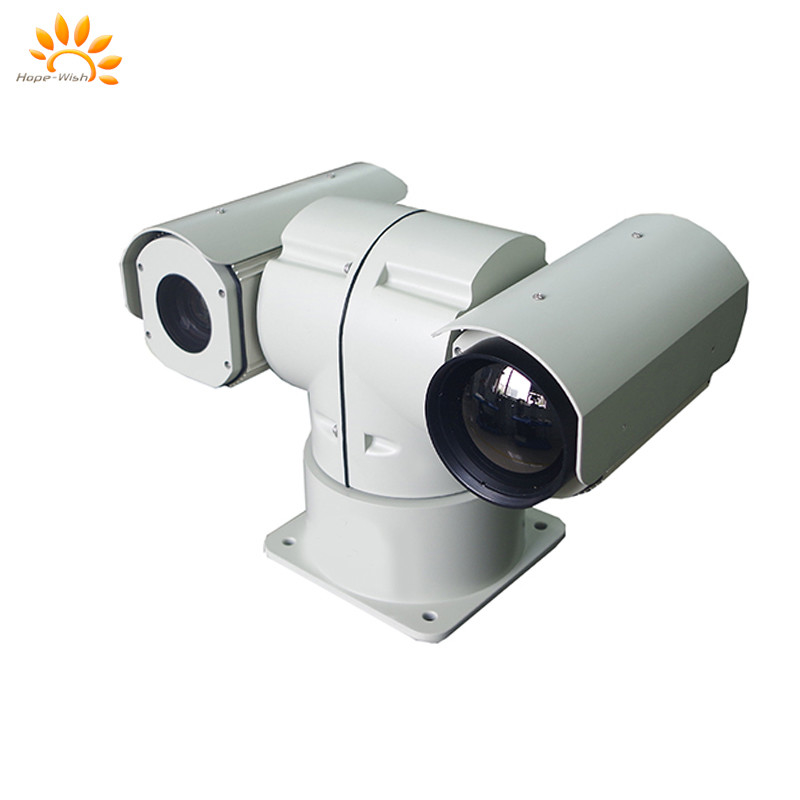

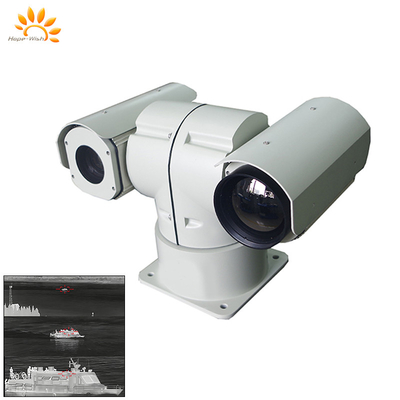

BTVC Series T Shape Dual-Sensor Thermal Camera is high-end custom intelligent surveillance camera. A multi-function device be combined with thermal imaging camera, visible CCD, precise actuating and gearing unit, digital decoder, high-performance image processing unit and control unit.
BTVC series camera features compact design and accurate positioning. With such functions as presetting and patrolling, the camera leaves no blind spot undetected.
The Long Range Infrared Camera is designed to withstand extreme temperatures, with a working temperature range of -25℃～+55℃. For even more demanding environments, an optional feature of -40℃ is also available, making it suitable for use in a variety of climates and conditions.
This camera is equipped with an aviation water-proof connector, ensuring a stable and secure connection. This allows for uninterrupted use, even in harsh weather conditions.
| Model | HP-BTVC6110-2132 |
| Detection | Vehicle: 8600m |
| Human: 3400m | |
| Identification | Vehicle: 2400m |
| Human: 900m | |
| Thermal sensor | 336*256/640*512, UFPA, 7-14um spectral response, 50mk NETD |
| Thermal lens | 100mm |
| FOV | 13°°～4.3°° |
| Visible | 1/2.8'' CMOS, HD 2.1 MP, 1920X1080, Auto ICR switch, color to B/W mode |
| Lens | 8~320mm , 40X zoom |
| Pan | 0° to 360° continuous |
| Tilt | -90°~+90° |
| Pan speed | 0°~100°/s |
| Tilt speed | 0°~60°/s |
| Preset | 128 |
| Scan | 3(user can set the starting and end point; adjustable scanning speed; ) |
| Path | 6(16 points for each path, adjustable duration on each point) |
| Pattern | 3(approx. 2 minutes for each pattern) |
| Menu | English |
| Auto homing | Homing time(1-99mins), homing action(preset/scanning/path/pattern) |
| Protocol | Pelco-D/P and other mainstream protocols |
| Baud rate | 2400/4800/9600/19200bps |
| Heating/defrosting/Wiper | Available |
| Ingress protection | IP66 |
| Working temp. | -35~55℃ |
| Power supply | AC24V/2.5A |
| Weight | 7kg |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
