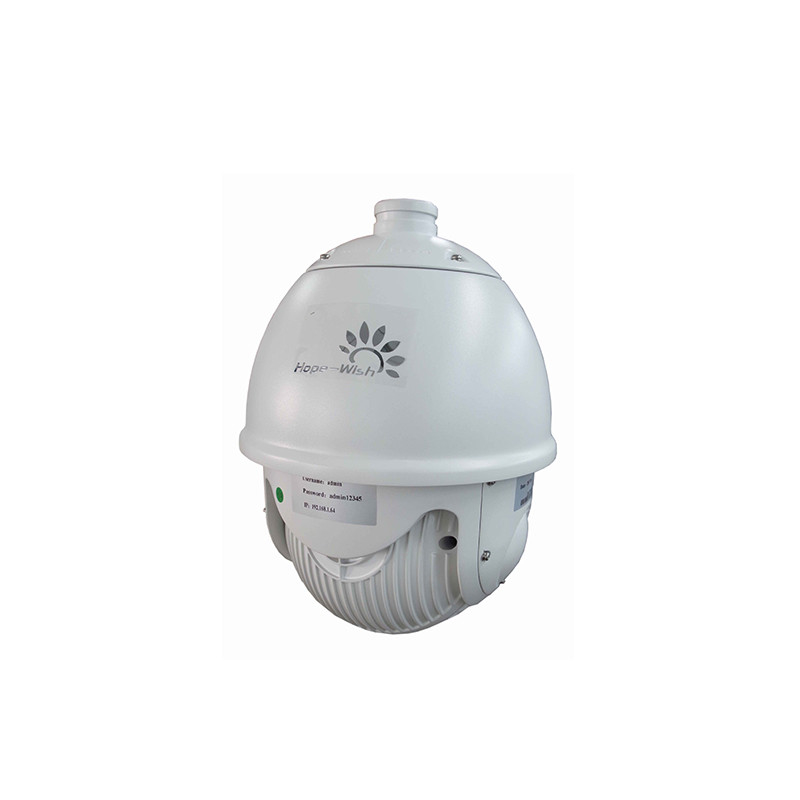

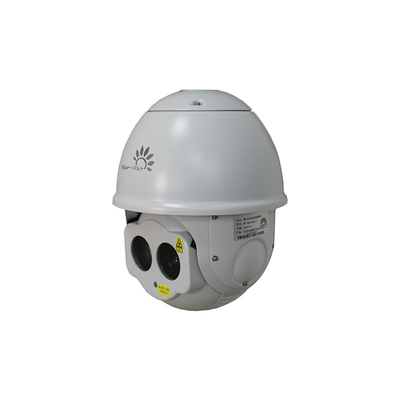

EO Ir Imaging Systems Ptz Ip Camera Aviation Water-Proof Connector

EO Ir Imaging Systems Ptz Ip Camera Aviation Water-Proof Connector
EO Ir Imaging Systems Ptz Ip Camera Aviation Water-Proof Connector EO Ir Imaging Systems Ptz Ip Camera Aviation Water-Proof Connector

Large Image :  EO Ir Imaging Systems Ptz Ip Camera Aviation Water-Proof Connector

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-DRC1923
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15-30
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 units per month

EO Ir Imaging Systems Ptz Ip Camera Aviation Water-Proof Connector

Description
Working Temperature: -25℃~+55℃ (-40℃ Optional) Material: Integral Aluminum Alloy Housing
Preset: 80 (245 For Option) Fog Penetration: AFR, Optional For Fog Filter
Ir Laser: 808nm Resolution: 1920x1080
Consumption: 10W,808nm , NIR Load Duty: 50kg
High Light:

Waterproof Connector Long Range Infrared Camera

,

Ir Ptz Ip Camera

,

EO Imaging Systems Ptz Ip Camera

Product Description:

DRC19 series high speed laser night vision dome camera, 2.1 megapixel, can monitor a region of 300m clearly at night. Consist of NIR laser illumination, PT, precise gearing, HD lens, digital encoder, CCD and MCU. The mechanical design of PTZ is simple and stable. It could rotate to the proposed position quickly and accurately.



The camera has 128 presets, recording and patrol function and could preset anywhere. It also have automatic exposure, automatic focus function.

Featuring advanced technology and high-quality components, this product is designed for high efficiency and performance. It is able to capture and process images and footage quickly and accurately, providing real-time surveillance and monitoring capabilities.

Low Power Consumption

The Long Range Infrared Camera is designed to be energy-efficient, consuming only 10W of power. This makes it a cost-effective solution for long term surveillance needs, without compromising on performance and reliability.

In conclusion, the Long Range Infrared Camera is a highly advanced and efficient surveillance solution, equipped with key features such as a powerful infrared camera lens, infrared lighting, and long range surveillance capabilities. With its high load capacity and low power consumption, it is the perfect choice for various security and monitoring applications.



Features:

  • 50°laser illuminator, 2.1 MP HD CMOS, max illumination distance 300m-400m.
  • Unique DSS laser angle control, min 0.1°sync zoom accompany camera, support manual zoom and sync zoom.
  • Unique GHT laser homogenizing technology.
  • Independent photo-resistor switch make sure the camera color mode and laser on/off at the same time. Built-in intelligent delay to avoid the influence of car light.
  • All metal cooling housing, CGS cooling system and double sun block, night vision module cycle air-cooling.
  • SDE image detail enhancement technology, no noise, B/W and B/W inverse color mode.
  • Multi-bearing structure.
  • Support online software update.
  • Electric motor drive, reaction quick, rotation smoothly, tolerance less than 0.1°.
  • Support 3D intelligent positioning function, click tracking enlarge.
  • Address and protocol DIP switch is on the side.
  • Weatherproof rate IP66, anti-rain, anti-dust, TVS4000V anti-lightin.


Technical Parameters:

Model HP-DRC1923
Detection Day:800m;
  Night: 300m
CCD 1/2.8'' CMOS, HD 2.1 MP, 1920X1080, Auto ICR switch, color to B/W mode
Video encoding Video compression H.264, code stream 32k~8Mbps, Support dual-stream,the heart, smart restructuring,electronic shutter, white balance, 3D DNR, DWDR,automatic exposure, support SD card, motion detection, mask alarm
Focal length

5~117mm,23X optical zoom

F1.6~F3.5

FOV 61.4°~2.9°
Min. illumination 0.05lux /0.005lux
Consumption 5W, 808nm,NIR
Laser lens 30mm F1.0 Fast lens, GHT laser homogenizing technology
Laser angle 2°~50°
Angle control DSS laser angle control technical, 30ms fast track response,min 0.1°sync zoom accompany camera, support manual zoom and sync zoom.
Optical axis aiming 0.01°SLM optical axis aiming and locking
Laser on/off Auto/manual
PTZ Pan: 360°continuously, Tilt: -90°~+5°(Support auto reverse)
Rotation speed Pan: 0.01°~200°/s, Tilt: 0.01°~120°/s, max speed of calling preset 250°/s, rotation speed vary automatically according to the focal length
Preset 255, support memory record after power breakdown, scan, keep watch
Interface and protocol RJ45, 10M/100M Ethernet, TCP/IP, RTP/RTCP, HTTP etc protocol
Compatibility Support ONVIF,GB/T28181
Customized function Customizable privacy shade, 3D box chosen magnification
Online update Support online update
Baud rate 2400/4800/9600/19200bps
Weatherproof IP66, TVS4000V anti-lighting, anti-wave
Operational temp. -30℃~60℃, <90%RH non-condensing
Power supply DC12V/4A, common≤40W,peak≤60W
Dimension Φ230(mm)*348(mm)
Weight 5kg



Applications:

City Safety, stadium/plaza/scenic spot monitoring, oilfield safety, lake&river monitoring, freeway&railway security, seaport&airport security.


Customization:

Customization Service for Long Range Infrared Camer

Our Long Range Infrared Camera, under the brand name Hope-Wish, is a high-quality and customizable product that is designed and manufactured in China. With its Onvif support and superior load duty of 30kg, this camera is a reliable choice for any surveillance needs.

The Infrared Remote Control feature of our camera allows for easy and convenient operation, while its EO IR Camera technology provides clear and accurate imaging even in low-light conditions. The use of 808nm and NIR in its consumption ensures efficient and effective performance.

Our camera is equipped with AFR technology for excellent fog penetration, making it suitable for use in various weather conditions. For an added layer of protection, we also offer the option for a Fog Filter.

With 80 preset options (245 for option), our Long Range Infrared Camera provides versatility and flexibility for different surveillance scenarios. Trust in our product to provide reliable and customizable solutions for your infrared surveillance camera needs.

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

EO Ir Imaging Systems Ptz Ip Camera Aviation Water-Proof Connector 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
EO Ir Imaging Systems Ptz Ip Camera Aviation Water-Proof Connector 1

FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is Hope-Wish.
  • Q: What is the model number of this product?
    A: The model number of this product is HP-.
  • Q: Where is this product made?
    A: This product is made in China.
  • Q: What is the range of this long range infrared camera?
    A: The range of this long range infrared camera is typically up to 500 meters.
  • Q: Can this camera be used for outdoor surveillance?
    A: Yes, this camera is designed for outdoor use and is weatherproof.
