Product Details:
|
| Detection Range: | Up To 5km | Temperature Range: | -40°C To 1200°C |
|---|---|---|---|
| Consumption: | 6W, 808nm, NIR | Warranty: | One Year |
| Lens: | Motorized & Manual Focus | Type: | IP Camera |
| Detection: | 1-20km | Image Process: | DDE |
| High Light: | laser night vision dome camera,high speed night vision dome camera,Long Range Thermal Surveillance System 10m |
||
| Model | HP-DRC1923 |
| Detection | Day:800m; |
| Night: 300m | |
| CCD | 1/2.8'' CMOS, HD 2.1 MP, 1920X1080, Auto ICR switch, color to B/W mode |
| Video encoding | Video compression H.264, code stream 32k~8Mbps, Support dual-stream,the heart, smart restructuring,electronic shutter, white balance, 3D DNR, DWDR,automatic exposure, support SD card, motion detection, mask alarm |
| Focal length | 5～117mm,23X optical zoom F1.6～F3.5 |
| FOV | 61.4°～2.9° |
| Min. illumination | 0.05lux /0.005lux |
| Consumption | 5W, 808nm,NIR |
| Laser lens | 30mm F1.0 Fast lens, GHT laser homogenizing technology |
| Laser angle | 2°～50° |
| Angle control | DSS laser angle control technical, 30ms fast track response,min 0.1°sync zoom accompany camera, support manual zoom and sync zoom. |
| Optical axis aiming | 0.01°SLM optical axis aiming and locking |
| Laser on/off | Auto/manual |
| PTZ | Pan: 360°continuously, Tilt: -90°~+5°(Support auto reverse) |
| Rotation speed | Pan: 0.01°~200°/s, Tilt: 0.01°~120°/s, max speed of calling preset 250°/s, rotation speed vary automatically according to the focal length |
| Preset | 255, support memory record after power breakdown, scan, keep watch |
| Interface and protocol | RJ45, 10M/100M Ethernet, TCP/IP, RTP/RTCP, HTTP etc protocol |
| Compatibility | Support ONVIF,GB/T28181 |
| Customized function | Customizable privacy shade, 3D box chosen magnification |
| Online update | Support online update |
| Baud rate | 2400/4800/9600/19200bps |
| Weatherproof | IP66, TVS4000V anti-lighting, anti-wave |
| Operational temp. | -30℃~60℃, ＜90%RH non-condensing |
| Power supply | DC12V/4A, common≤40W,peak≤60W |
| Dimension | Φ230(mm)*348(mm) |
| Weight | 5kg |
Brand Name: Hope-Wish
Model Number: HP-TC
Place of Origin: China
Power: Maximum Power Consumption 150W
Grade: Military Grade
Type: IP Camera
Lens: Motorized & Manual Focus
Detection: 1-20km

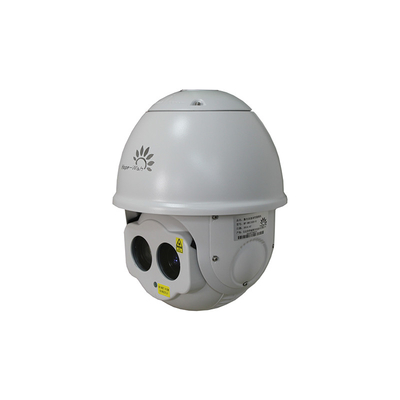

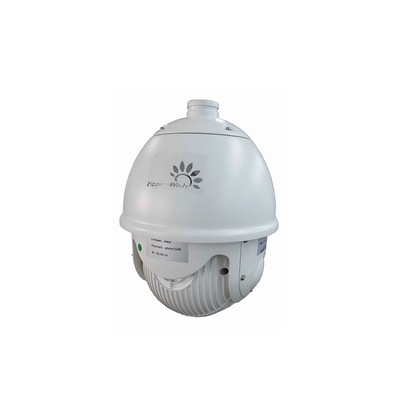

Our Thermal Surveillance System, also known as the Hope-Wish HP-TC, is a top-of-the-line product designed and manufactured in China. With a maximum power consumption of 150W, it is energy efficient and can operate in various environments.
Our product is built to military grade standards, ensuring durability and reliability in any situation. As an IP camera, it can be easily integrated into existing security systems.
The lens of our thermal security camera is both motorized and manually adjustable, providing flexibility in surveillance range and focus. Its detection range can reach up to 20km, making it ideal for long-range surveillance.
At Hope-Wish, we understand that every client has different needs and requirements. That's why we offer customized services for our Thermal Surveillance System. Whether it's adjusting the power consumption, upgrading to a higher military grade, or adding additional features, we are dedicated to meeting your specific needs.
Contact us now to learn more about our thermal imaging camera price and how our customized services can help you achieve your security goals.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
