Product Details:
|
| Storage Temperature: | -40°C To +70°C | Frame Rate: | 9 Hz |
|---|---|---|---|
| Accuracy: | +/-2°C Or 2% | Interface: | USB 2.0 |
| Field Of View: | 45° X 34° | Power Supply: | 5V DC |
| Size: | 600mm X 600mm X 550mm | Operating Temperature: | -20°C To +50°C |
| Highlight: | Factory Long Range Thermal Camera,High Accuracy Outdoor PTZ Camera,Parks Outdoor PTZ Camera |
||
| Model | HP-TRC6307-2132 |
| Detection | Vehicle: 6.5km,Human:2.5km |
| Identification | Vehicle:1.8km, Human: 700m |
| Thermal Camera System | |
| Sensor | 5th generation FPA VOx uncooled detector |
| Resolution | 640*512 (optional 384*288) |
| Spectral range | 7.5~14μm |
| NETD | 50mK (@25℃ F1.0) |
| Focal length | 25mm~75mm, 3X continuous zoom, auto focus |
| FOV | 24°* 18°~8°*6° |
| Image process |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display |
| Lens Control |
1.Zoom: Electrical Zoom. 2.Focus: Manual/Auto Focus 3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis. |
| Visible Camera System | |
| Camera | 1/2.8” star level CMOS, 0.05lux/0.01lux color to B/W CCD |
| 2 MP ,1920X1080 | |
| Automatic ICR switch | |
| H.264/H.265 MPEG4/MIPEG | |
| 32Kbps~16Mbps,60Hz30 FPS | |
| Visible lens | 8mm~320mm, 2MP resolution, 40X zoom, auto focus |
| Laser Illumination | |
| Consumption | 10W, 808nm NIR |
| Illumination Angle | 1°~20° |
| Synchronization control | DSS digital stepping illumination angle control technology, 0.1 degree precise servo control |
| Housing | |
| Material | High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated |
| Surface coating | PTA three-resistance coating, Seawater corrosion resistance |
| Temp. Control | Built-in thermostat, design of thermal equilibrium |
| Interface | Aviation waterproof plug |
| PTZ | |
| Load Capacity | 30kg |
| Range/Speed | Range:Pan: 0~360°, Tilt: +45°~-45°; Speed: Pan: 0.01~60°/S, Tilt: 0.01~30°/S |
| Preset | 255 |
| Scan | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising. |
| Interface | |
| Network Interface | RJ45 |
| Network Protocol | Support TCP/IP, UDP, IPv4/v6; Support HTTP,RTP,RTSP,NFS,HDCP,NTP,SMTP,,PPPoE,DNS, FTP, Onvif |
| Power Supply | AC/DC24V, anti-reverse connection protection |
| Environment Parameter | |
| Working/Storage Temp. | Working temperature: -25℃~+60℃(-40℃for optional); Storage temperature: -45℃~70℃ |
| Seismic/Impact Resistance | 0.2g/15g |
| Anti-lighting | Built-in auto Fuse-protected device, Power 4000V,Signal 2000V |
| Ingress Protection | IP 66 |

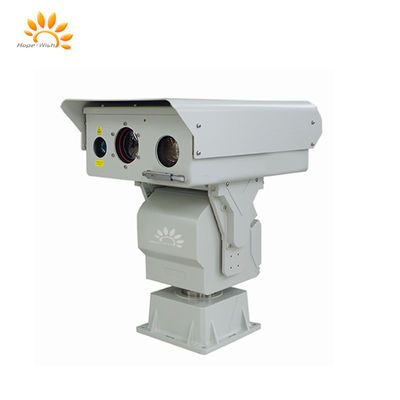

Hope-Wish HP-TC PTZ Thermal Imaging Camera with 20x Optical Zoom is designed to provide optimized image quality for any type of application. It features 30 Hz frame rate, 95% RH humidity, digital detail enhancement image processing, and auto/manual focus. The thermal camera price is very competitive, and the thermal infrared camera is perfect for many applications such as surveillance, security, law enforcement, transportation, and . With the combination of the PTZ Thermal Imaging Camera's advanced features, the Hope-Wish HP-TC will make any of these applications easier and more efficient.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Brand Name: Hope-Wish
Model Number: HP-TC
Place of Origin: China
Zoom: 20x Optical Zoom
Storage Temperature: -30°C To +70°C
Humidity: 95% RH
Sensor: Thermal Sensor
Alarm: Motion Detection, Temperature Alarm
We specialize in Scope Thermal, Thermal IP Camera and Thermal Imaging Camera.
We provide a comprehensive range of technical support and services for our PTZ Thermal Imaging Camera. Our services and support include:
For more information about our technical support and services, please contact us.
