Product Details:
|
Type: | PTZ Thermal Imaging Camera | Pan: | 360° Continuous Rotation |
---|---|---|---|
Operating Temperature: | -20°C To +60°C | Image Processing: | Digital Detail Enhancement |
Alarm: | Motion Detection, Temperature Alarm | Tilt: | 90° |
Humidity: | 95% RH | Focus: | Auto/Manual |
Highlight: | USB Output PTZ Thermal Imaging Camera,Auto Focus PTZ Thermal Imaging Camera,Infrared Thermal PTZ Camera |
Model | HP-TVC6511-2150 |
Detection | Vehicle: 8.6km,Human:3.4km |
Identification | Vehicle:2.4km, Human: 900m |
Thermal Camera System | |
Sensor | 5th generation FPA VOx uncooled detector |
640*512 resolution (optional 384*288 resolution) | |
Spectral range | 7.5~14μm |
NETD | 50mK (@25℃ F1.0) |
Focal length | 25mm~105mm, 5X continuous zoom, auto focus |
FOV | 30°X23°~6.2°X4.6° |
Image process |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display 5. NUC correction: automatic / manual correction, background correction |
Lens Control |
1.Zooming: Electrical Zoom. 2.Focusing: Manual/Auto Focus 3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis. |
Visible Camera System | |
Camera | 1/2.8” star level CMOS, 0.05lux/0.01lux color to B/W CCD |
2 MP ,1920X1080 | |
Automatic ICR switch | |
H.264/H.265 MPEG4/MIPEG | |
32Kbps~16Mbps,60Hz30 FPS | |
Visible lens | 8mm~320mm, 2MP, 40X zoom, auto focus |
Optical IR correction design, diurnal focus | |
Housing | |
Material | High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated |
Structure | Integrated single-window design |
Surface coating | PTA three-resistance coating, Seawater corrosion resistance |
Temp. Control | Built-in thermostat, design of thermal equilibrium |
Interface | Aviation waterproof plug |
PTZ | |
Load Capacity | 30kg |
Range/Speed | Range:Pan: 0~360°, Tilt: +45°~-45°; Speed: Pan: 0.01~60°/S, Tilt: 0.01~30°/S |
Preset | 255 |
Scan | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising. |
Interface | |
Network Interface | RJ45 |
Network Protocol | Support TCP/IP, UDP, IPv4/v6; Support HTTP,RTP,RTSP,NFS,HDCP,NTP,SMTP,,PPPoE,DNS, FTP, Onvif |
Power Supply | AC/DC24V, anti-reverse connection protection |
Environment Parameter | |
Working/Storage Temp. | Working temperature: -25℃~+60℃(-40℃for optional); Storage temperature: -45℃~70℃ |
Seismic/Impact Resistance | 0.2g/15g |
Anti-lighting | Built-in auto Fuse-protected device, Power 4000V,Signal 2000V |
Weight & Power Consumption | |
Weight: 35kg (include PT); Power consumption: 150W |

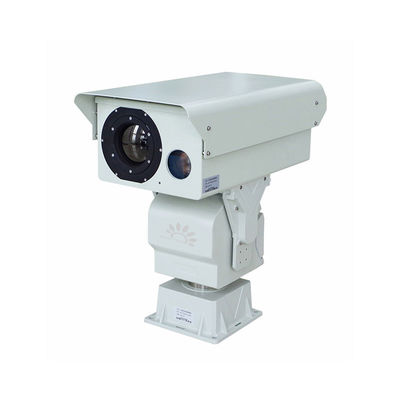

The Hope-Wish HP-TC Thermal Imaging Camera is a powerful security tool designed for a wide range of applications. With its resolution of 640x480, this thermal security camera offers high-definition thermal imaging, making it the perfect choice for surveillance and security operations. The thermal ptz camera is equipped with a high-performance thermal sensor, allowing it to capture clear images in a variety of environments, including low-light and dark conditions. Furthermore, the operating temperature of the Hope-Wish HP-TC Thermal Imaging Camera ranges from -20°C to +60°C, making it suitable for outdoor use. The scope thermal camera also features a variety of alarm functions such as motion detection and temperature alarm, so users can stay alerted in the event of a security breach or temperature change. The Hope-Wish HP-TC Thermal Imaging Camera also features auto/manual focus, ensuring that users can quickly identify and focus on important objects in the scene.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
We provide technical support and service for our PTZ Thermal Imaging Camera products, which include the following:
If you have any questions or need assistance, please contact us and our team of experts will be happy to help.
