Product Details:
|
| Frame Rate: | 30 Hz | Image Output: | HDMI, USB |
|---|---|---|---|
| Focus: | Auto/Manual | Image Processing: | Digital Detail Enhancement |
| Pan: | 360° Continuous Rotation | Alarm: | Motion Detection, Temperature Alarm |
| Tilt: | 90° | Humidity: | 95% RH |
| High Light: | 20x Optical Zoom Outdoor PTZ Camera,HDMI PTZ Thermal Imaging Camera,Manual Focus Outdoor PTZ Camera |
||
Key Benefits:

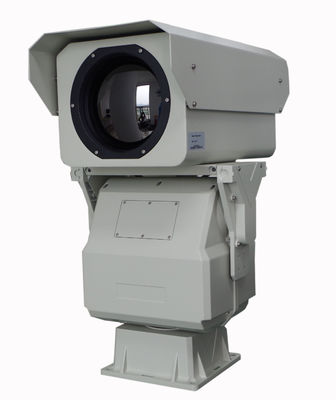

The PTZ Thermal Imaging Camera is a highly reliable, high-performance thermal imaging camera. It is equipped with a thermal sensor, providing exceptional image quality with a resolution up to 640x480. The camera offers HDMI and USB image outputs, and its operating temperature range is from -20°C to +60°C. It also features a 90° tilt angle, allowing for flexible monitoring of the target area. With its advanced thermal image processing technology, this thermal infrared camera can capture and display thermal images in real-time, even in total darkness. This PTZ Thermal IP Camera is the ideal choice for surveillance and security applications.
VOx uncooled detector, 640*512 (384*288);
NETD is less than 50mk (@25℃F1.0);
SDE digital image processing, AGC, 2X digital amplification;
10 pseudo color and B/W, B/W inverse;
Intelligent functions: cross-border/ intrusion detection and target tracking;
255 level alarm threshold can be setup
Advanced algorithm support shot-point/ fire detection and alert;
One integral aluminum alloy housing, water proof, IP66 weather proof, anti-dust.
| Model | HP-TC61023 |
| Detection | Vehicle: 17400m / Human: 6800m |
| Identification | Vehicle: 4800m / Human: 1800m |
| Thermal Camera | |
| Sensor | 5th generation FPA VOx Detector |
| Resolution | 640 × 512 pixel (optional 1280×1024 pixel ) |
| Spectral range | 7.5～14μm |
| NETD | 50mK (@25℃ F1.0) |
| Focal length | 23 - 230 mm |
| Field of view(horizontal) | 17°×12.6°～1.7°×1.3° |
| PTZ | |
| Duty | 50 kg CNC PT |
| Rotation | Pan: 0～360°, Tilt: -45°～+45° |
| Rotation speed | Pan: 0.01°～30°/S, tilt: 0.01°/S ～15°/S |
| Accuracy | ±0.1° |
| Preset | 255 presets, support lens zooming and focusing preset |
| Mode | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising |
| Network | |
| Network interface | RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485) |
| Network Protocol | TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol. |
| Environment Parameter | |
| Operating temperature | -25℃~+60℃(-40℃ Optional) |
| Storage temperature | -45℃～70℃ |
| Protection Level | IP66 |
| General | |
| Total Consumption | 180W |
| Power supply | AC/DC24V, anti-reverse connection protection |
| Weight | ≤ 35kg (include PTZ) |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
We offer technical support and service for our PTZ Thermal Imaging Camera. Our team of professionals is available for any questions or assistance you may need. We have an extensive knowledge base and product documentation that can help you learn more about the product and how to use it. Additionally, our customer support team is available to answer any questions or provide assistance you may need to ensure the successful use of your PTZ Thermal Imaging Camera.
