Product Details:
|
| Dimensions: | 175mm X 175mm X 175mm | Power Supply: | DC12V |
|---|---|---|---|
| Operating Temperature: | -20°C To +50°C | Spectral Range: | 7.5μm To 14μm |
| Focus Type: | Manual | Temperature Range: | -40°C To +550°C |
| Field Of View: | 25° | Sensor Type: | Thermal |
| High Light: | Long Range Thermal Camera DC12V,Night Vision Thermal Imaging Camera,Manual Focus HD Imaging Thermal Camera |
||

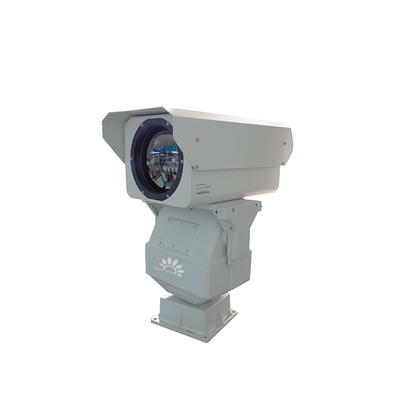

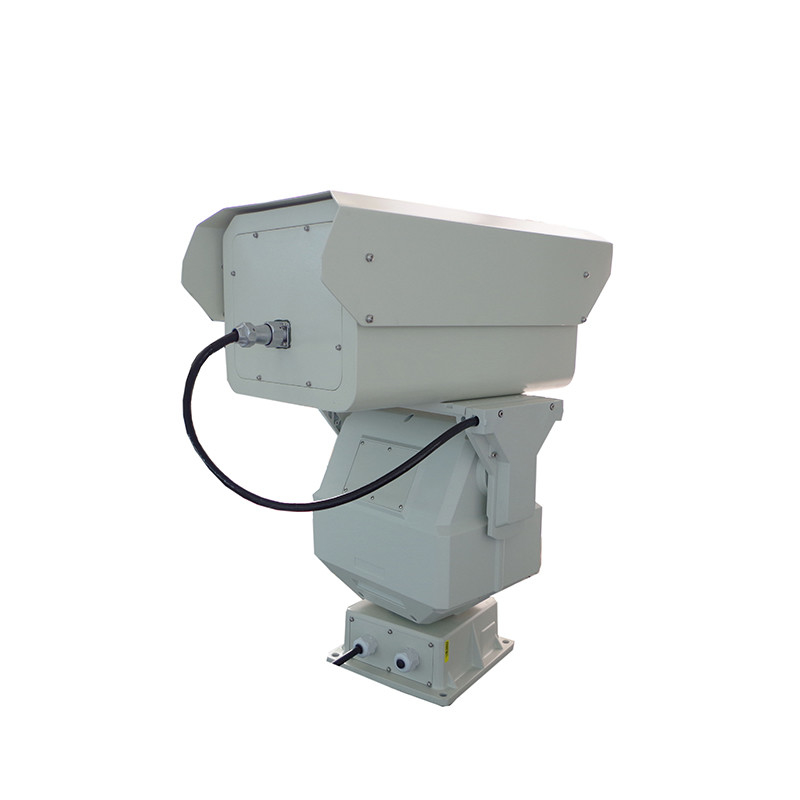

HP-TC61021PT long range zoom thermal camera is based on the latest uncooled IR technology and continuously IR optical zoom. User could get a best imaging details with 336*256/640*512 resolution, advanced digital circuit and image processing algorithm. Special design of 10X optical zooming lens have detection distance 18km, suit for both seeking and watching. One integral aluminum alloy housing make sure the camera IP66 sealing rates and works well in harsh outdoor conditions.
Long Range Thermal Camera is the perfect solution for long-distance thermal imaging applications. It is equipped with a high-performance thermal imaging sensor that offers excellent image quality even in extreme temperature conditions from -20°C to +50°C. This thermal imaging camera also features a manual focus type, DC12V power supply and an Ethernet interface for connection. The powerful imaging capabilities and high-performance design make it ideal for multiple long-distance thermal imaging applications.
| Model | HP-TC41021 |
| Detection | Vehicle: 17400m |
| Human: 6800m | |
| Recognition | Vehicle: 4800m |
| Human: 1800m | |
| Sensor |
1,Detector:5th generation UFPA Vox Detector ; 2,Resolution:336×256,(640X512 optional) 3,NETD:50mK(@25℃ F1.0) 4,Spectral range:7.5～14μm |
| NETD | 50mK(@25℃ F1.0) |
| Focal length |
1,Length: 21～210mm 2,FOV:16°×12°～1.6°×1.2° 3,Motorized zoom,focus(auto focus optional ) 4,AS+DOE advanced optical design, high infrared transmission; 5,Applied 3CAM high precision design; |
| IFOV | 0.08～0.85mrad |
| Image processing | 1. stable operational temperature, starting time less than 4 seconds |
| 2. SDE digital image processing | |
| 3. 10 pseudo color and B/W, B/W inverse | |
| 4. AGC | |
| 5. 2X digital amplification | |
| Housing |
1,Material:aluminum alloy housing,waterproof; 2,Structure:Integral single window design ; 3,Surface:PTA coating, anti sea water corrosion; 4,Sealing rate:IP66 5,Built-in temperature controller,thermal balance design; 6,Interface:aviation waterproof connector ; |
| PTZ(optional) |
1,Load:50kg military level digital PT ; 2,Angle:pan 0～360°,tilt -45°～+45° 3,Speed:0.01～30°/S high precision variable speed control and locking ; 4,Preset:80 presets,support lens zoom and focus memory,variable speed scanning 0～30°/S ,support apple peel scanning function; 5,Protocol:Pelco-P,Pelco-D 6,Baud rate:2400,4800,9600,19200 optional ; |
| Consumption ,weight |
1,Consumption(PT included):min.40W,max.120W 2,weight(PT included):≤40kg |
| Interface | 1. RS-485(PELCO D protocol, baud rate 2400bps), RS-232(option) |
| 2. Remote OSD setting | |
| 3. PAL/NTSC video output | |
| 4. AC24V( DC12V option) | |
| 5. Waterproof connector | |
| Environment indicator |
1,Working temperature:-25℃～+55℃(-40℃ optional) 2,Storage temperature:-35℃～+75℃ 3,Humidity:<90% 4,Anti-shock:0.2g(GB/T15211—20135.4 harshest level 2 standard) 5,Anti-resistance:15g(GB/T15211—20135.3 harshest level 3 standard) 6,Anti-lightening:power 4000V,signal 2000V 7,Anti salty:PH6.5～7.2,continuous sprarying 48 hours ; 8,Protection rate:IP66 |
Hope-Wish's Long Range Thermal Camera, the HP-TTVC, is a powerful imaging solution that is designed to capture thermal images from a long distance with a minimum focus distance of 1.5m. This Thermal Imaging Camera is designed and manufactured in China and weighs only 2.5kg, making it easy to carry and store. It has a thermal sensor that can detect temperatures between 7.5μm and 14μm and is equipped with an Ethernet interface for easy data transfer. The Long-Distance Thermal Camera from Hope-Wish is ideal for a wide range of applications, including surveillance, security, and energy efficiency. It is an invaluable tool for anyone who needs to capture high-accuracy thermal imaging from long distances.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
We offer a range of technical support and services to meet your needs for Long Range Thermal Camera.
We provide comprehensive technical support to ensure that you can use Long Range Thermal Camera with ease and confidence. Our support team is available for assistance with installation, operation, troubleshooting, and maintenance. We also provide technical documentation, such as user manuals, installation guides, and reference material.
We offer a range of services to ensure that your Long Range Thermal Camera is operating optimally. Our services include product maintenance, repairs, and upgrades. We also provide consultation services to ensure that you have the right solution for your needs.
