Product Details:
|
| Operating Temperature: | -20°C To +50°C | Detection Range: | 1.2km |
|---|---|---|---|
| Minimum Focus Distance: | 1.5m | Image Frequency: | 9Hz |
| Dimensions: | 175mm X 175mm X 175mm | Interface: | Ethernet |
| Field Of View: | 25° | Sensor Type: | Thermal |
| High Light: | Ethernet Interface Thermal Camera,DC12V Long Distance Thermal Camera,1.2km Long Distance Thermal Camera |
||
This long-distance thermal camera is ideal for monitoring, security, surveillance, and reconnaissance applications. It is perfect for searching for missing persons, locating fires, and detecting intruders or suspicious activities. The Long Range Thermal Camera is designed to be lightweight, portable, and easy to install.
| Model | HP-TC6516 |
| Detection | Vehicle: 13000m / Human: 4800m |
| Identification | Vehicle: 3400m / Human: 1300m |
| Thermal Camera | |
| Sensor | 5th generation FPA VOx Detector |
| Resolution | 640 × 512 pixel (optional 384 × 288 pixel) |
| Spectral range | 7.5～14μm |
| NETD | 50mK (@25℃ F1.0) |
| Focal length | 31 - 155mm |
| Field of view(horizontal) | 20°×15° - 4°× 3° |
| PTZ | |
| Duty | 30kg CNC PT |
| Rotation | Pan: 0～360°, Tilt: -45°～+45° |
| Rotation speed | Pan: 0.01°～60°/S, tilt: 0.01°/S ～30°/S |
| Accuracy | ±0.1° |
| Preset | 255 presets, support lens zooming and focusing preset |
| Mode | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising |
| Network | |
| Network interface | RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485) |
| Network Protocol | TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol. |
| Environment Parameter | |
| Operating temperature | -25℃~+60℃(-40℃ Optional) |
| Storage temperature | -45℃～70℃ |
| Protection Level | IP66 |
| General | |
| Total Consumption | 180W |
| Power supply | AC/DC24V, anti-reverse connection protection |
| Weight | ≤25kg (include PTZ) |

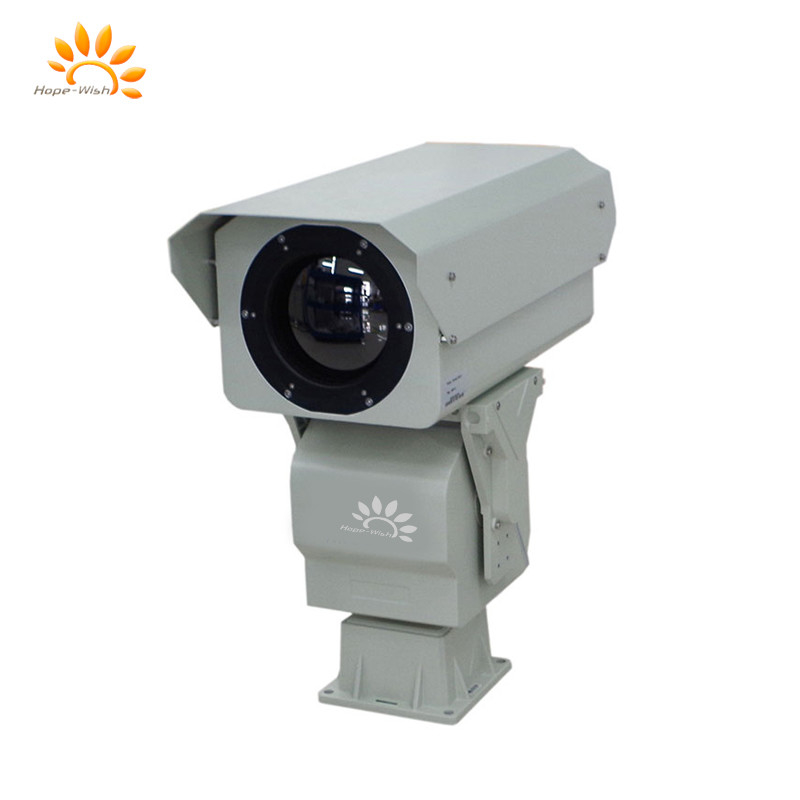

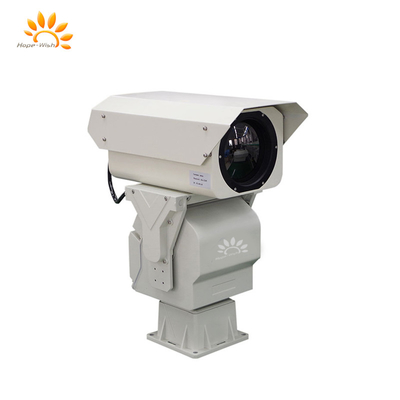

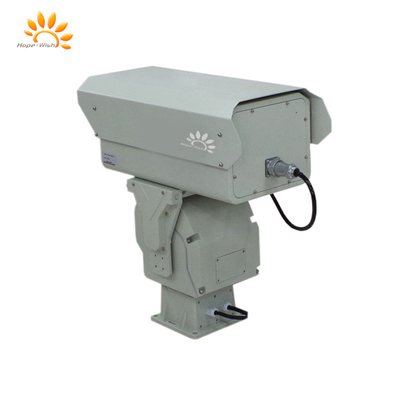

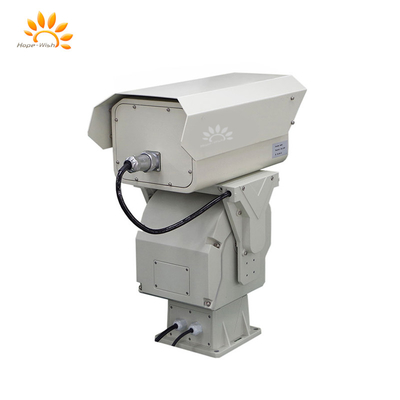

Hope-Wish HP-TTVC Long Range Thermal Camera is a thermal imaging camera with powerful long-distance detection capabilities. It has a resolution of 640x480 and dimensions of 175mm X 175mm X 175mm. It is powered by DC12V and has a minimum focus distance of 1.5m with a detection range of 1.2km. It is designed with the latest thermal imaging technology and offers superior image quality and long-distance detection capabilities for a wide range of applications.
The Hope-Wish HP-TTVC Long Range Thermal Camera is perfect for surveillance, security, night vision, and navigation purposes. It is ideal for use in a variety of environments, such as industrial sites, airports, and public areas. It is also suitable for military, law enforcement, and search and rescue operations.
The Hope-Wish HP-TTVC Long Range Thermal Camera is designed for long-distance detection and enhanced image quality. It is reliable and easy to use, making it an ideal choice for a variety of applications. It is the perfect tool for keeping an eye on your surroundings and ensuring safety and security.
Long Range Thermal Camera provides technical support and services to ensure that customers get the best experience possible. Our technical support team is available to answer any questions you may have about our products, installation, and use. We also offer on-site support for installations and repairs, as well as regular maintenance services to keep your camera running reliably.
We have a dedicated customer service team that provides fast and friendly assistance. Our customer service representatives are available to answer any questions you may have about our products, orders, and returns. We also provide online technical support, with live chat and email support.
We offer a variety of warranties and extended service plans to protect your investment. Our warranty covers any defects in materials or workmanship, and we provide free repairs or replacements if necessary. We also offer a range of extended service plans that provide protection for your camera beyond the manufacturer's warranty.
At Long Range Thermal Camera, we are committed to providing the best customer experience possible. We believe in making sure our customers are satisfied with their purchase, and we strive to provide the highest quality support and service.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
