Product Details:
|
| Interface: | Ethernet | Resolution: | 640x480 |
|---|---|---|---|
| Operating Temperature: | -20°C To +50°C | Minimum Focus Distance: | 1.5m |
| Detection Range: | 1.2km | Sensor Type: | Thermal |
| Field Of View: | 25° | Temperature Range: | -40°C To +550°C |
| High Light: | 640x480 Long Distance Thermal Camera,Manual Focus Infrared Thermal Imaging Camera,1.5m Infrared Long Range Thermal Camera |
||
Key Benefits:

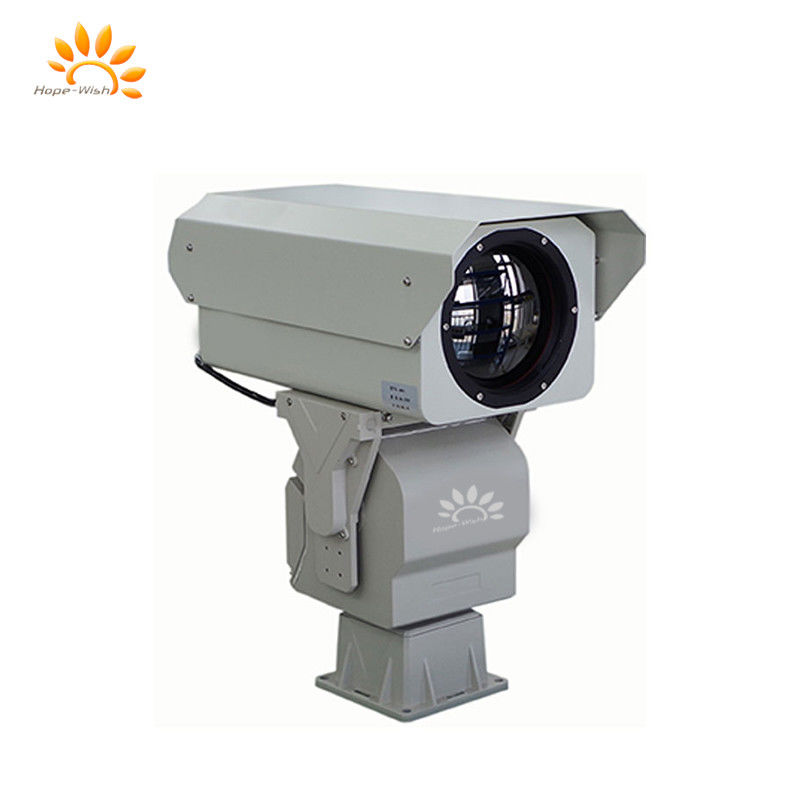

Long Range Thermal Camera is a thermal imaging camera that can detect objects at long distances. It features an operating temperature range of -20°C to +50°C and is equipped with an advanced thermal sensor for reliable and accurate detection. With its Ethernet interface, the camera is easy to connect to and configure. With a lightweight design of only 2.5kg, this Long Range Thermal Camera is perfect for any environment. It can detect objects from -40°C to +550°C, and is ideal for security and surveillance applications. Its superior imaging capabilities make it a reliable and powerful long-distance thermal camera.
| Model | HP-TC6519 |
| Detection | Vehicle: 16400m / Human: 5800m |
| Identification | Vehicle: 4200m / Human: 1600m |
| Thermal Camera | |
| Sensor | 5th generation FPA VOx Detector |
| Resolution | 640 × 512 pixel (optional 384 × 288 pixel) |
| Spectral range | 7.5～14μm |
| NETD | 50mK (@25℃ F1.0) |
| Focal length | 38 - 190mm |
| Field of view(horizontal) | 17.6°×13.2° - 3.5°× 2.6° |
| PTZ | |
| Duty | 30kg CNC PT |
| Rotation | Pan: 0～360°, Tilt: -45°～+45° |
| Rotation speed | Pan: 0.01°～60°/S, tilt: 0.01°/S ～30°/S |
| Accuracy | ±0.1° |
| Preset | 255 presets, support lens zooming and focusing preset |
| Mode | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising |
| Network | |
| Network interface | RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485) |
| Network Protocol | TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol. |
| Environment Parameter | |
| Operating temperature | -25℃~+60℃(-40℃ Optional) |
| Storage temperature | -45℃～70℃ |
| Protection Level | IP66 |
| General | |
| Total Consumption | 180W |
| Power supply | AC/DC24V, anti-reverse connection protection |
| Weight | ≤25kg (include PTZ) |
Long Range Thermal Camera is a powerful imaging solution from Hope-Wish, model HP-TTVC, and made in China. It features an operating temperature from -20°C to +50°C, an image frequency of 9Hz, a resolution of 640x480, a dimension of 175mm x 175mm x 175mm, and a spectral range from 7.5μm to 14μm.
This thermal imaging camera is suitable for various long-distance applications. It can detect minute temperature differences from far away, making it ideal for surveillance, security, and monitoring purposes. It is perfect for night-time security, such as monitoring forest fires, detecting intruders, or searching for missing persons. It is also suitable for industrial applications, such as detecting gas or steam leaks, monitoring machinery temperature, or detecting heat loss in buildings.
Hope-Wish's Long Range Thermal Camera is reliable, durable, and offers high-quality performance. It is suitable for various long-distance applications and can help you detect minute temperature differences far away.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
We provide technical support and service for our Long Range Thermal Camera. Our team of experienced engineers and technicians is available to answer any technical questions you may have and provide troubleshooting and repair services.
We offer a variety of services to meet your needs. Our technical support team is available to assist with installation, configuration, and general troubleshooting. We also offer warranty and extended warranty services, as well as repair and maintenance services.
We provide free software updates and upgrades, as well as priority support for customers who purchase our extended warranty packages. We are committed to providing the best possible customer service and technical support for all of our products.
