Railway Security PTZ Thermal Imaging Camera 640*512 Infrared Thermal Imaging Camera

Railway Security PTZ Thermal Imaging Camera 640*512 Infrared Thermal Imaging Camera
Railway Security PTZ Thermal Imaging Camera 640*512 Infrared Thermal Imaging Camera

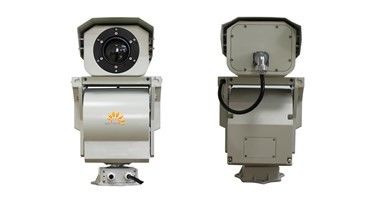

Large Image :  Railway Security PTZ Thermal Imaging Camera 640*512 Infrared Thermal Imaging Camera

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC
Model Number: TC6519
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: wooden case
Payment Terms: L/C, T/T, Western Union

Railway Security PTZ Thermal Imaging Camera 640*512 Infrared Thermal Imaging Camera

Description
INTERFACE: Remote OSD Setting Image Processing: AGC
Sensor: Uncooled UFPA Sensor Resolution: 640*512
LENS: 31-190MM Warranty: One Year
High Light:

Railway Security PTZ Thermal Imaging Camera

,

PTZ Thermal Imaging Camera 640*512

,

640*512 Infrared Thermal Imaging Camera

TC6519 Infrared Long Range Surveillance PTZ Thermal Imaging Camera



Feature

  1.  NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.
  2.  Special AS optical zooming lens and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.
  3.  Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range. SDE digital image processing, no image noise, 10 pseudo color image and B/W, B/W inverse.
  4.  One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.

Application

Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.



Technical specification



Model TC4307A TC4511A TC4412A TC4516A TC4519A
Detection Vehicle:6500m Vehicle:8600m Vehicle:10000m Vehicle: 13000m Vehicle: 16400m
Human:2500m Human:3400m Human:4000m Human: 4800m Human: 5800m
Identification Vehicle:1800m Vehicle:2400m Vehicle:2800m Vehicle:3400m Vehicle:4200m
Human:700m Human:900m Human:1000m Human:1300m Human: 1600m
Sensor 5th generation UFPA sensor
Resolution 336*256 pixel (640*512 optional)
Spectral 7.5 ~ 14μm
NETD 50mK (@25 ℃ F1.0)
Focal length 25 ~ 75mm 21 ~ 105mm 30 ~ 120mm 31 ~ 155mm 38 ~ 190mm
FOV(H) 13° ~ 4.3° 18° ~ 3.4° 11° ~ 2.8° 11.2° ~ 2.2° 9.5° ~ 1.9°
Lens control Motorized zoom and focus(optional auto focus)
Lens design AS+DOE Advanced optical design, High infrared transmittance
Zoom without virtual focus
Image processing Stable operational temperature without TEC, starting time less than 4 seconds
SDE digital image processing
10 pseudo color and B/W, B/W inverse
AGC
2X digital amplification
Housing Material : High strength aluminum alloy shell , waterproof seal , To avoid the growth of mold and moisture generated
Interface : Aviation waterproof plug
PT ( optional ) Duty: 20kg
Rotation: Pan: 0 ~ 355°, Tilt: -60 ~ +10°
Rotation speed: Pan: 9°/S, Tilt: 4°/S ,
Preset 32 ( Optional variable speed PT )
Interface RS-485 ( PELCO D protocol, baud rate 2400bps
Remote OSD setting
PAL/NTSC video output
AC24V ( DC12V optional)
Waterproof connector
Environment Operating temperature : -25 ℃~ +55 ℃( -40 ℃ optional )
Storage temperature : -35 ℃~ +75 ℃
Humidity : <90%
Anti-lighting : built-in auto Fuse-protected device, Power 4000V , Signal 2000V
Ingress protection : IP66



* The detection distance is related to the object and environment etc. Please contact with us for further information
.
