Product Details:
|
| Type: | Night Vision Laser Camera | Structure: | Double Window Design |
|---|---|---|---|
| Sensor: | CMOS | LPR: | Avoid Strong Light, License Plate Recognition |
| Type: | PTZ | Waterproof: | IP66 |
| High Light: | long range ir ip camera,long range ccd camera |
||

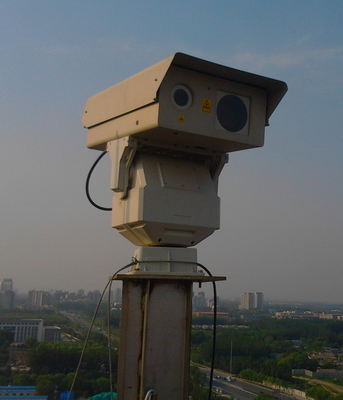

Night Vision PTZ Long Range Infrared Laser Camera For 2km Border Surveillance
HD Laser Camera Specially designed for long range surveillance, HD Laser Camera is capable of detecting targets like human, vehicle etc 2km away in the day time and 1km in complete darkness. HD Laser Camera features lens and low lux HD B/W camera. It is fed with wide power supply and power adaptor for ease of use. The photo sensor controls the automatic turning ON/OFF of laser, which ensures service life of laser.
Application
Oilfield monitoring, navigation, fishery, aquaculture, railway&freeway security, seaport&airport security, mariculture security, city security and forest fire prevention.
| Detection |
Day: 2 Km, Night 1 Km Note: detection range varies depending on different environmental conditions, operational experience and displaying medium. The above mentioned detection range is acquired when atmospheric attenuation coefficient is 0.15km-1km. For human 1.7 meter height. |
|
| Optical Camera | Sensor | 1/2.8'' CMOS,Automatic ICR switch |
| Focal Lens | 8-320mm, 2MP HD electric zoom with fog penetration | |
| Min. Illumination |
0.002Lux Color/0.0002 Lux B/W |
|
| Resolution | 2.1MP, 1920*1080 | |
| Bit Rate | 32Kbps~16Mbps | |
| Video Compress |
H.264/MPEG4/MIPEG H.264/MPEG4/MIPEG, support dual-stream |
|
| SNR | >52dB | |
| Laser | Power | 10W |
| Wavelength | 808nm | |
| Laser lens | 2-60mm lens, 30X zoom, GHT-II super homogenizing HD illumination technology | |
| Illumination | 1°～20°Continuous Zoom | |
| Distance angle matching. |
1.DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming 2. 0.01°SLM optical axis aiming and locking 3.Matching mode: Auto/Manual |
|
| ON/OFF | Photosensitive control | |
| Housing | Material | Aluminum alloy |
| Structure | Integrated design, two window | |
| Window Glass | 4mm crystallite optial glass | |
| Coating | PTA three-assistance coating, anti corrosion | |
| Connector | Aviation Water-Proof Connector | |
|
PT |
Load Duty | 25kg,military grade |
| Rotation | Pan:0~360° continuous, Tilt: +45°~-90° | |
| Speed | 0.01～100°/S ,High precision speed control and position | |
| Presets | 255 | |
| Auto Patrol | 4 , every patrol within 10 presets | |
