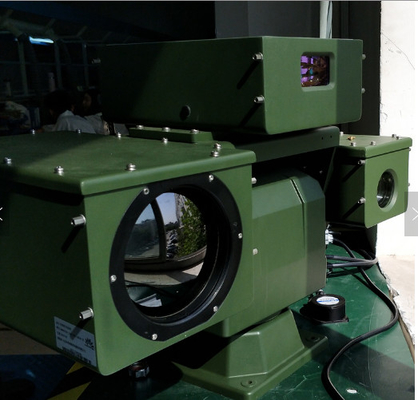

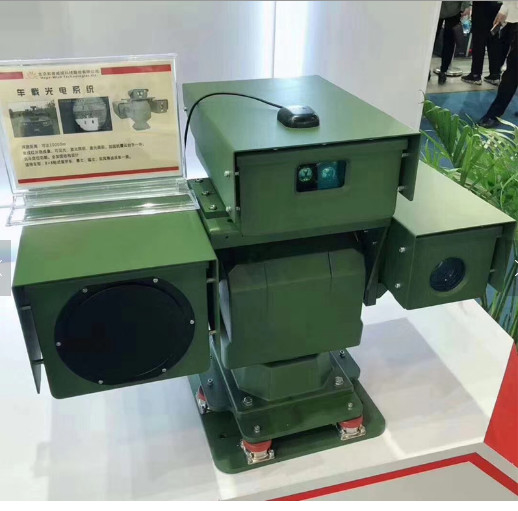

Rugged Mobile Vehicle Ptz Laser Camera , Cctv Infrared Surveillance Camera

Rugged Mobile Vehicle Ptz Laser Camera , Cctv Infrared Surveillance Camera

    • Rugged Mobile Vehicle Ptz Laser Camera , Cctv Infrared Surveillance Camera
    • Rugged Mobile Vehicle Ptz Laser Camera , Cctv Infrared Surveillance Camera
  • Rugged Mobile Vehicle Ptz Laser Camera , Cctv Infrared Surveillance Camera

    Product Details:

    Place of Origin: China
    Brand Name: Hope-Wish
    Certification: CE,FCC
    Model Number: GRC2132

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: wooden case
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    Video Standard: PAL(NTSC)&H.264,both Output Min. Illumination: 0.006lux
    Sensor: 1/2.8'' CMOS ,2 Mega Pixel, HD1080P Resolution: 1920*1080
    IR Distance: 1000m Warranty: One Year
    High Light:

    ir laser camera


    hd ptz ip camera

    1km Rugged Mobile Vehicle PTZ Surveillance CCTV Infrared laser camera


    GRC20 series vehicle mounted optical system IR camera Simple mechanical design and compact structure, exquisite; high positioning accuracy and reliability; operating flexibility, speed, start and stop smoothly, easy to control. Max detection distance 10km. Internal industrial embedded control electronics system, control zoom, focus, video switching, pan tilt rotate. Whole shell is made of super alloy, the internal material uses high strength stainless steel bearings, to meet anti-shock requirements for military wheeled car, reach IP66 grade, to ensure that equipment long-term operation in harsh outdoor environment.


    •  Consist of visible light camera, laser illuminator, laser ranging finder, anti-shock reinforcement pan tilt, accurate position.
    •  UFPA detector, detect 3km at night.
    •  Housing using superior aluminum material, IP66 protection, anti-rain, anti-dust, can adapt to a variety of harsh environments.
    • 3km, 5km, 10km distance laser ranging finder, 3m range accuracy, accurate positioning.
    • 30kg, 50kg anti-shock reinforcement heavy duty CNC pan tilt, 360 continuous rotation observation, no dead ends, smooth operation, image small dithering.
    • Full-reinforced structural design, super-strength stainless steel center bearing, multi-round reinforcement designed to meet military vehicle environmental vibration, anti-shock requirements



    Military vehicle video command system, border and coastal patrol car video surveillance, police vehicle patrol video surveillance systems.


    Technical specification

    Model GRC2132
    Detection Day:2km;
    Consumption 10W,808nm , NIR
    Laser angle 1°~20°
    Angle and distance matching DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming
    GHT-II super homogenizing HD illumination technology
    0.01°SLM optical axis aiming and locking
    Camera 1/2.8'' CMOS,star-class CMOS ,2 megapixel
      Automatic ICR switch,H.264 video format
    Lens 8-320mm HD lens , electrical zoom
    Penetrate fog Optional, optical filtering and AFR electronic enhanced image processing technology, color penetrate fog



    Positioning accuracy 10m
    Time update cycle 1ms,100ms,200ms
    Time Accuracy 0.001s
    Baud rate 4800,9600,19200,38400,57600,115200
    Sensitivity detect-148dBm,tracking-165dBm
    PT and housing Housing Integrated multi-window, aluminum, with wiper, waterproof seal, IP66 protection class, dustproof and waterproof
    Internal control circuit pan, tilt, rotate( PWM drive), the lens zoom, focus, camera DC12V power supply, laser ranging finder high and stable power supply DC24V ± 1V, color to W/B aux command, preset function, the thermostat function.
    Load duty 30kg
    Angle Pan 360 continuous, tilt + 45 ° ~ -45 °, PT azimuth display.
    Speed Pan 0.01~15°/S; tilt 0.01~15°/S
    Seismic reinforcement Super-strength stainless steel center bearings, with special damping base



    Wave length 1.57um
    Detection 50m—3km
      (max 15000m)
    Ranging Accuracy 3m
    Repetition frequency 10 cycles / minute
    Power supply DC24V
    Interface RS422 full duplex
    Others Interface 1*RJ45 network HD visible light video,
      1* DC24V, 1*RS422
    Ingress protection IP66
    Operational temp. -35℃~+65℃
    Weight 20kg—65kg(Based on specific configuration )

    * The detection distance is related to the object and environment etc. Please contact with us for further information.
