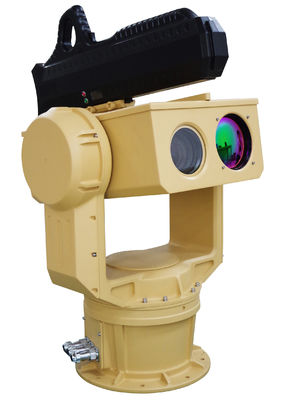

Coastal Thermal Surveillance System Military Grade With 30km Multi Spectrum

Coastal Thermal Surveillance System Military Grade With 30km Multi Spectrum

    • Coastal Thermal Surveillance System Military Grade With 30km Multi Spectrum
    • Coastal Thermal Surveillance System Military Grade With 30km Multi Spectrum
  • Coastal Thermal Surveillance System Military Grade With 30km Multi Spectrum

    Product Details:

    Place of Origin: China
    Brand Name: Hope-Wish
    Certification: CE,FCC
    Model Number: ZTRC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: wooden case
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    NETD: 50mK Spectral Range: 7.5~14μm
    LRF: Eye-safe Laser Range Resolution: 336*256/640*512
    Vision: 50km Grade: Military Grade
    High Light:

    security camera system


    thermal surveillance camera

    30km Multi Spectrum Thermal Imaging System PTZ Infrared Coastal Surveillance



    ZTRC Series Multi-spectrum Optical Electronical Platform combines visible camera, NIR laser camera and thermal camera that suit long distance monitoring in total darkness and foggy/rainy environment. It has a U shape & Dome Shape housing and with military quality, the camera is widely applied to coastal, seaport, airport, Forest fire prevention.

    In the day time, HD lens and 440000 pixel/2 mega pixel color to B/W CMOS works. At night, the 320*240/640*480 uncooled thermal camera and 1~5km NIR illuminator works. The multi- spectrum photoelectronic platform can detect 15km 24/7 hours.




    1.  Aluminum alloy housing, anti-corrosion paint, anti-seawater corrosion, spherical housing, resisting 33m/s wind.
    2.  Precision positioning.
    3.  Pan rotation angle range 0-360°, tilt rotation angle range ±45°.
    4.  ZTRC combines thermal camera, visible camera, NIR laser illuminator, pan tilt , housing and decoder.
    5.  One integral aluminum alloy housing, waterproof, IP66, anti-dust.
    6. Data feedback: real-time feedback direction, angle, focal length and focusing data, track and locate the target. (cooperate with application software).
    7. High load duty. It could bear 60X visible camera, large caliber thermal camera and high-power laser illuminator, detection range 15 km or more.
    8. Max rotation speed 45°/s, min rotation speed 0.01°/s.


    Border defense, lake and river monitoring, airport security, city safety, forest fire prevention.


    Technical specification

    Model ZTRC

    U shape & Dome Shape housing,

    Multi-dimensional free-form surface shape resisting 33m/s wind.

    Load duty 50 kg
    Rotation speed Pan: 0.01°~45°/S; Tilt: 0.01°~45°/S;(optional 200°/S )
    PT Pan: 0~360° ; Tilt: -45°~+45°(optional +90 )
    Preset 200
    PT position back sending 0.01°accuracy , real-time back up
    Smart features

    1. Automatic Patrol : 8 path, 10 patrol positions/path

    2. Automatic homing can be set from 1 to 60 minutes

    3. Auto Scan: 1


    1.1 channel 10M / 100M adaptive Ethernet port (containing visible thermal image + HD + RS485 control), 1 AC24V / DC24V,

    2. (Optional) Reserved RS422 / 485 and analog video, azimuth return for radar, GIS linkage position, or third-party intelligent analysis

    3. Military-grade waterproof aviation plug


    1.TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols

    2. Support ONVIF2.0

    3. Pelco-P, Pelco-D and other industry-standard protocol, baud rate 2400,4800,9600,19200 alternative, proprietary protocols can be customized

    Enhancements Lens defrost, air-cooled shields, heating function to achieve automatic control and heated open at -35 degrees
    Power supply


    Turntable rotation power can be controlled in 120W,

    maximum power consumption 150W,

    stationary machine power 45W, heating 150W

    Environmental indicators

    1. Working temperature: -40 ℃ ~ + 55 ℃

    2. Storage temperature: -40 ℃ ~ + 65 ℃

    3. Humidity: <90%

    4. Protection: IP66

    Weight 115KG( 65kg for vehicle mounted)
    Dimension Ф554mm×H705mm
    Thermal camera Optional 320X240/640X512 sensor, 25~75mm,21~105mm, 31~155mm,38~190mm,21~210mm, 95/285mm lens
    Visible camera Optional 12~320mm,15~500mm,30~750mm,16.7-1000mm, 2 mega pixel CMOS
    Laser illuminator Optional 1000m/2000m/3000m/5000m laser illuminator
    Tracking optional tracking module, manual, automatic, radar linkage tracking, automatic tracking over the top.
    LRF Optional 5km,8km,15km Pulsed laser ranger, 1.57um eye-safe laser range, accuracy 3 m, repetition rate 10 beats / min
    GPS Positioning accuracy 10 meters, optional Compass positioning, accuracy 0.001s, detection -148dBm, tracking -165dBm
    Electronic compass range 0-360°, precision 1°, Resolution 0.1°

    * The detection distance is related to the object and environment etc. Please contact with us for further information.​
