Product Details:
|
| NETD: | 50mK | Spectral Range: | 7.5～14μm |
|---|---|---|---|
| Lens Control: | Motorized Zoom And Focus(optional Auto Focus) | Resolution: | 336*256/640*512 |
| IR Distance: | 10km | Feature: | IP66 |
| High Light: | thermal imaging camera,thermal security camera |
||

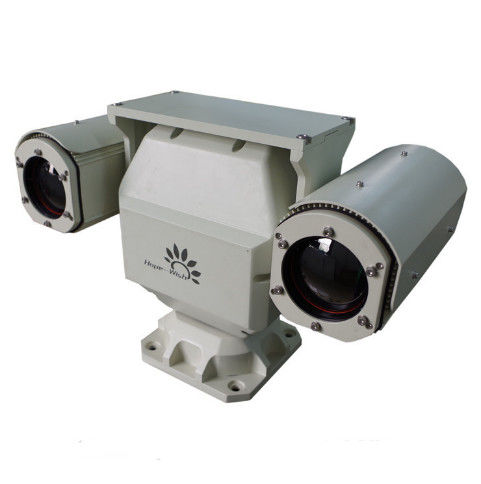

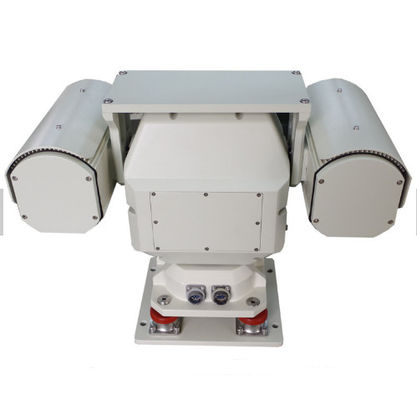

Dual-Sensor PTZ Infrared Thermal Imaging Camera , Military grade Vehicle Mounting Camera
Feature
Technical specification
| Model | GTVC4307-1930-IP | ||
| Detection | Vehicle: 6500m | ||
| Human: 2500m | |||
| Identification | Vehicle:1800m | ||
| Human: 700m | |||
| Thermal sensor | VOx uncooled detector, 324*256(640*512 optional); 7.5um-14um spectral response, 50mk NETD, 2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement; | ||
| Thermal lens | 25mm～75mm | ||
| 3CAM precision mechanizing(auto focus optional) | |||
| FOV | 13°～4.3° | ||
| Visible camera | 1/1.8'' Sony CMOS, 2.1 mega pixels, 1920*1080, auto B/W to color at 0.001lux; ICR optical filter; H.264 | ||
| Visible Lens | 4.3mm～129mm, mega pixels, auto focus | ||
|
GPS (optional) |
Positioning accuracy | 10m | |
| Time update cycle | 1ms,100ms,200ms | ||
| Time Accuracy | 0.001s | ||
| Baud rate | 48,009,600,192,003,800,000,000,000,000 | ||
| Sensitivity | detect-148dBm,tracking-165dBm | ||
| PT and housing | Housing | Integrated multi-window, aluminum, with wiper, waterproof seal, IP66 protection class, dustproof and waterproof | |
| Internal control circuit | pan, tilt, rotate( PWM drive), the lens zoom, focus, camera DC12V power supply, laser ranging finder high and stable power supply DC24V ± 1V, color to W/B aux command, preset function, the thermostat function. | ||
| Load duty | 30kg | 50kg | |
