Product Details:
|
| NETD: | 50mK | Visible Lens: | 4.7～94mm Lens |
|---|---|---|---|
| Temperature Range: | -20℃－120℃（650℃ Optional） | Resolution: | 640*512 |
| Frame Rate: | 25hz | Certificate: | CE FCC |
| High Light: | long range night vision security camera,long range surveillance camera |
||

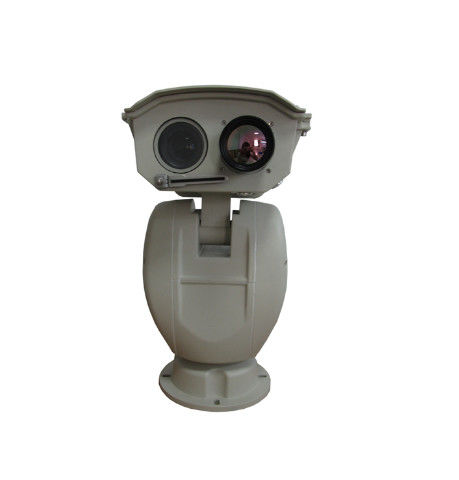

640*512 Long Range Night Vision Camera CE Certificate For temperature detection
Feature:
Application
Power detection, substation, petrochemical, online test of industrial equipment operating, medical thermometer, health and epidemic prevention, building inspection, circuit research and design thermal analysis
Technical specification
| Model | KTVC6101-1920 | KTVC6102-1920 | KTVC6105-1920 |
| FOV | 43.6°*32.7° | 27°*20.2° | 11°*8.2° |
| Thermal sensor | 5th generation UFPA | ||
| Resolution | 640*512 pixel(384*288optional) | ||
| Spectral response | 7.5～14μm | ||
| NETD | 50mK(@25℃ F1.0) | ||
| Thermal lens | 10mm F1.0 | 20mm F1.0 | 50mm F1.0 |
| Visible CCD | 1/2.8'' CMOS, 2 mega pixels, ICR optical filter, auto color to B/W. | ||
| Visible lens | 4.7～94mm lens,motorized zoom and focus. | ||
| Image processing | 1. Stable operation temperature without TEC, starting time less than 4 seconds | ||
| 2. SDE digital image processing | |||
| 3. 10 pseudo color and B/W, B/W conversion | |||
| 4. 2X digital amplification | |||
| Temperature accuracy | 1. Temperature accuracy: ±2℃ or ±2% of reading,take the maximum | ||
| 2. Temperature range: -20℃－120℃(650℃ optional) | |||
| 3. Adjustable parameters, include temperature correction, emissivity, atomospheric transimissivity, humidity | |||
| Temperature model | 1. Support high, low and average temperature tracking, point, line and rectangular detection; multi addable detection targets | ||
| 2. Each road can be set up to 10 alarm region, independent threshold value and sampling cycle setting, independent curve chart | |||
| 3. Fixed point monitoring, multi areas addable. | |||
| Overheat alarm | 1. 6 kinds of alarm algorithm, maximum, minimum, average, middle position absolute threshold and airspace relative, time domain, relative value alarm temperature mutations | ||
| 2. Sound, light alarm. Presets a linkage visible light camera ptz automatic observation target. Reserved switch alarm output, manual/automatic fire extinguishing system and the broadcasting system | |||
| Alarm log | 1. Real-time record each object temperature data, automatically generate trend curve. | ||
| 2. Can automatic storage temperature when trigger the alarm data, snapshot images and videos, establish and record the related logs, video storage, real-time playback | |||
| PT | 1. Duty: 15kg | ||
| 2. Rotation: pan: 0～360°, tilt: -75～+40° | |||
| 3. Rotation speed: Pan: 0.1～60°/S, tilt:0.1～30°/S | |||
| 4. 256 presets | |||
| 5. Anti-shake | |||
| Interface | 1. One RJ45 network interface (including video and temperature data, azimuth of return data, PT control transmission), one switch alarm output (linkage acousto-optic alarm, start, fire control system) | ||
| 2. AC24V/DC24V | |||
| 3. Waterproof aviation connector | |||
| Environment parameters | 1. 1. Protection:One integral aluminum alloy housing, IP66 | ||
| 2. Operational temp.: -25°～55°(-45°optional) | |||
| 3. Power consumption: common 50W, peak 100W | |||
* The detection distance is related to the object and environment etc. Please contact with us for further information.
.
