Dual Sensor Long Range Thermal Imaging Camera / Military Grade Infrared Security Camera

Product Details:

Place of Origin:	China
Brand Name:	Hope-Wish
Certification:	CE,FCC
Model Number:	HP-GTVC4516A-2050-IP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	wooden case
Payment Terms:	L/C, T/T, Western Union

Contact Now

Detailed Product Description

NETD:	50mK	Spectral Range:	7.5～14μm
Lens Control:	Motorized Zoom And Focus(optional Auto Focus)	Resolution:	336256/640512
IR Distance:	10km	Feature:	IP66
High Light:	thermal imaging camera , thermal security camera

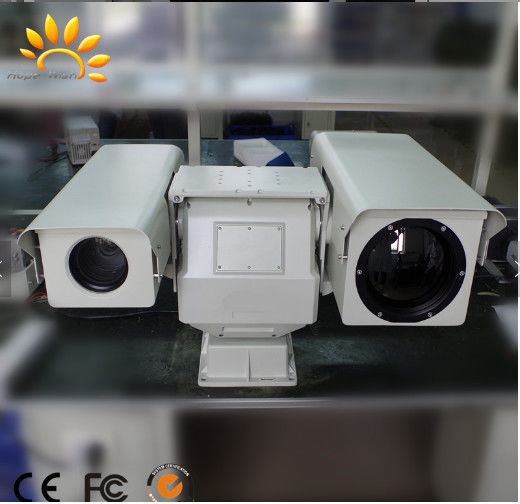

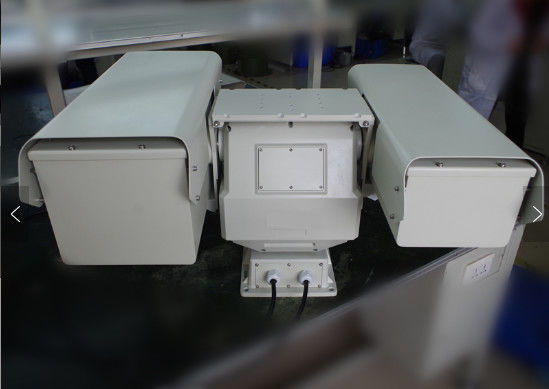

Dual Sensor Long Range Thermal Imaging Camera / Military Grade Infrared Security Camera

Feature

Consist of infrared thermal imaging, visible light camera,anti-shock reinforcement pan tilt, accurate position.
Full-reinforced structural design, super-strength stainless steel center bearing, multi-round reinforcement designed to meet military vehicle environmental vibration, anti-shock requirements
20kg, 50kg anti-shock reinforcement heavy duty CNC pan tilt, 360 continuous rotation observation, no dead ends, smooth operation, image small dithering.
NETD 50mk, higher than other cameras, obtain more delicate picture quality, little effect by rain and snow fog
Housing using superior aluminum material, IP66 protection, anti-rain, anti-dust, can adapt to a variety of harsh environments

Technical specification

Model		GTVC4307-1930-IP	GTVC4510-2030-IP		GTVC4515-2050-IP
Detection		Vehicle: 6500m	Vehicle: 8600m		Vehicle: 13000m
		Human: 2500m	Human: 3400m		Human: 4800m
Identification		Vehicle:1800m	Vehicle: 2400m		Vehicle: 3400m
		Human: 700m	Human: 900m		Human: 1300m
Thermal sensor		VOx uncooled detector, 324256(640512 optional); 7.5um-14um spectral response, 50mk NETD, 2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement;

Thermal lens		25mm～75mm	21mm～105mm		31mm～155mm
		3CAM precision mechanizing(auto focus optional)
FOV		13°～4.3°	18°～3.4°		11.2°～2.2°
Visible camera		1/1.8'' Sony CMOS, 2.1 mega pixels, 1920*1080, auto B/W to color at 0.001lux; ICR optical filter; H.264
Visible Lens		4.3mm～129mm, mega pixels, auto focus	12～320mm, mega pixels, motorized zoom and focus, auto iris		15～528mm,mega pixels, motorized zoom and focus, auto iris(25～750mm optional)
GPS (optional)	Positioning accuracy	10m
	Time update cycle	1ms,100ms,200ms
	Time Accuracy	0.001s
	Baud rate	48,009,600,192,003,800,000,000,000,000
	Sensitivity	detect-148dBm,tracking-165dBm
PT and housing	Housing	Integrated multi-window, aluminum, with wiper, waterproof seal, IP66 protection class, dustproof and waterproof
	Internal control circuit	pan, tilt, rotate( PWM drive), the lens zoom, focus, camera DC12V power supply, laser ranging finder high and stable power supply DC24V ± 1V, color to W/B aux command, preset function, the thermostat function.
	Load duty	30kg		50kg
