Product Details:
|
| NETD: | 50mK | Spectral Range: | 7.5～14μm |
|---|---|---|---|
| Electronic Compass: | Range 0-360°, Precision 1°, Resolution 0.1° | Resolution: | 336*256/640*512 |
| Grade: | Military Level | Warranty: | One Year |
| High Light: | thermal surveillance camera,security camera system |
||

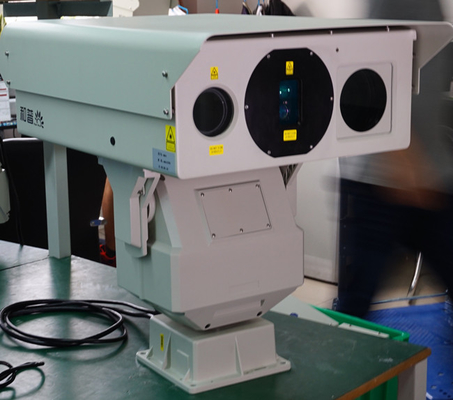

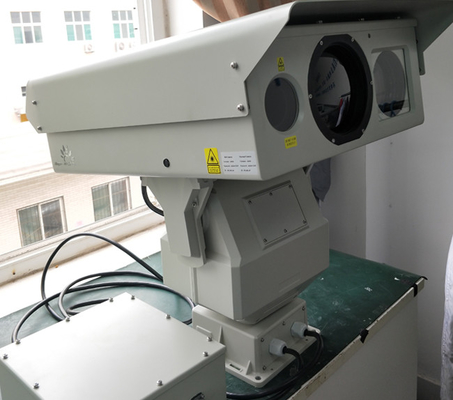

360° PTZ Infrared Thermal Surveillance System With Long Range IP Camera
Feature
Application
Border defense, railway&expressway security, seaport&airport security, city security, forest fire prevention,river&lake monitoring.
Technical specification
| Type | TRC4105S-2022-IP |
| Detection | 4200m |
|
5th generation uncooled FPA sensor Resolution 336×256 pixel Spectral range 7.5～14μm, NETD 50mk |
|
| Thermal camera | 50mm |
|
1. Electric zoom and focus 2. Special AS & DOE optical zooming lens 3. 3CAM high-precision optomechanical design |
|
| Field of view | 6.5°×4.8° |
| Image processing | SDE digital image processing |
| 10 pseudo color and B/W, B/W inverse | |
| AGC & 2X digital amplification | |
| Consumption | 6W, 808nm, NIR |
| Laser angle | 1.5°～20° |
| Cooling Package |
1. filled with inert gas seal to prevent oxidation 2. Laser with distributed design with more cooling capacity |
| Angle and distance matching | 1. Automatic tracking or manual fine-tuning intelligent matching |
| 2. DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming | |
| 3. Z-super laser angle and magnification matching algorithm, the tracking response time <30ms | |
| 4. 0.01°SLM optical axis aiming and locking | |
| CCD | 1/2.8'' CMOS 0.005lux low illumination color to B/W |
|
1. 2 megapixel HD, 1920*1080,Automatic ICR switch 2. H.264/MPEG4/MIPEG H.264 video format 3. Video bit rate 32Kbps ~ 16Mbps, 60Hz30 frames / sec 4. Support SD card local storage 5. ABF Auto Back Focus adjustment function |
|
| Visible Lens |
1. 10～220mm 2. HD infrared lens |
| Motorized & manual focus, DC8-12V, auto iris, (optional auto focus), DC5V precision potentiometers preset positions, zoom focus feedback | |
| Fog penetration | Optical filtering and AFR image processing technology |
| Housing |
1. Material: aluminum alloy, stainless steel fasteners, anti strong winds. 2. Structure: integrated design, 3. The surface coating: PTA three anti-paint, anti-seawater corrosion 4. Protection grade: IP66, waterproof and dustproof 5. Interface: Aviation waterproof plug |
| PT |
1, Load duty:30kg 2, Angle: Pan 360°continuously Tilt: +40°～-45° 3, Speed: pan 0.01～30°/S, Tilt 0.01～15°/S 4, Preset : 80,Patrol & Scan 5, Orientation and angle real-time display, with zero correction |
| Interface |
1. Intelligent IP box, one 10M / 100M adaptive Ethernet port (containing visible thermal image + HD + RS485 control), AC24V / DC24V, 2. (Optional) Reserved RS422 / 485 and analog video, azimuth return for radar, GIS linkage position, or third-party intelligent analysis 3,Military-grade waterproof aviation plug |
| Protocol |
1.TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols 2. Support ONVIF2.0 3,Pelco-P, Pelco-D and other industry-standard protocol, (optional) Baud rate 2400, 4800, 9600, 19200 |
| Power |
AC24V / DC24V ± 10%, 50Hz, 150W, standard AC220V-> AC24V adapter (Optional DC12V power supply, RC2013 only use AC24V, not DC power supply) |
| Environmental Indicators |
1. Working temperature: -25 ℃ ~ + 55 ℃ 2. Storage temperature: -35 ℃ ~ + 65 ℃ 3. Humidity: <90% 4. Ingress Protection: IP66 |
| Weight | ≤30kg |
.
