Outdoor Surveillance PTZ Thermal Imaging Camera For Freeway Security

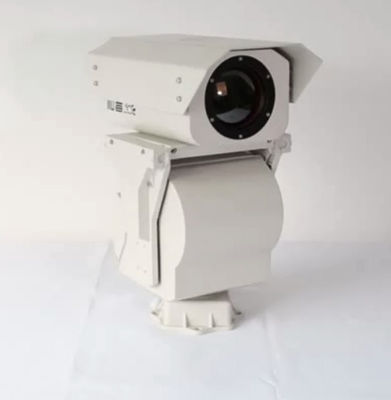

Large Image : Outdoor Surveillance PTZ Thermal Imaging Camera For Freeway Security

Product Details:

Place of Origin:	China
Brand Name:	Hope-Wish
Certification:	CE,FCC
Model Number:	TC4516

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	wooden case
Payment Terms:	L/C, T/T, Western Union

Contact Now

Outdoor Surveillance PTZ Thermal Imaging Camera For Freeway Security

Description

NETD:	50mK	INTERFACE:	PAL/NTSC Video Output
Sensor:	Uncooled UFPA Sensor	Resolution:	336256/640512
Lens:	31-155mm	Interface:	PAL/NTSC
Highlight:	long range ir camera , outdoor ptz ir camera , Outdoor Surveillance PTZ Thermal Imaging Camera

Outdoor Surveillance PTZ Long Range night vision Thermal Imaging Camera

Feature

NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.
SDE digital image processing, no image noise, 10 pseudo color image and B/W, B/W inverse.
Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range.
Special AS optical zooming lens and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.
One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.

Application

Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.

Technical specification

Model	TC4412A	TC4516A	TC4519A
Detection	Vehicle:10000m	Vehicle: 13000m	Vehicle: 16400m
	Human:4000m	Human: 4800m	Human: 5800m
Identification	Vehicle:2800m	Vehicle:3400m	Vehicle:4200m
	Human:1000m	Human:1300m	Human: 1600m
Sensor	5th generation UFPA sensor
Resolution	336256 pixel (640512 optional)
Spectral	7.5 ～ 14μm
NETD	50mK (@25 ℃ F1.0)
Focal length	30 ～ 120mm	31 ～ 155mm	38 ～ 190mm
FOV(H)	11° ～ 2.8°	11.2° ～ 2.2°	9.5° ～ 1.9°
Lens control	Motorized zoom and focus(optional auto focus)
Lens design	AS+DOE Advanced optical design, High infrared transmittance
	Zoom without virtual focus
Image processing	Stable operational temperature without TEC, starting time less than 4 seconds
	SDE digital image processing
	10 pseudo color and B/W, B/W inverse
	AGC
	2X digital amplification
Housing	Material : High strength aluminum alloy shell , waterproof seal , To avoid the growth of mold and moisture generated
	Interface : Aviation waterproof plug
PT ( optional )	Duty: 20kg
	Rotation: Pan: 0 ～ 355°, Tilt: -60 ～ +10°
	Rotation speed: Pan: 9°/S, Tilt: 4°/S ,
	Preset 32 ( Optional variable speed PT )
Interface	RS-485 ( PELCO D protocol, baud rate 2400bps
	Remote OSD setting
	PAL/NTSC video output
	AC24V ( DC12V optional)
	Waterproof connector
Environment	Operating temperature : -25 ℃～ +55 ℃( -40 ℃ optional )
	Storage temperature : -35 ℃～ +75 ℃
	Humidity : <90%
	Anti-lighting : built-in auto Fuse-protected device, Power 4000V , Signal 2000V
	Ingress protection : IP66

Outdoor Surveillance PTZ Thermal Imaging Camera For Freeway Security 0

Outdoor Surveillance PTZ Thermal Imaging Camera For Freeway Security 1

. Outdoor Surveillance PTZ Thermal Imaging Camera For Freeway Security 2
