Product Details:
|
| Video Standard: | PAL(NTSC)&H.264 , Both Output | Consumption: | 10W,808nm , NIR |
|---|---|---|---|
| Sensor: | 1/2.8'' CMOS ,2 Mega Pixel, HD1080P | Feature: | GPS |
| IR Distance: | 1000m | Warranty: | One Year |
| Highlight: | thermal ptz camera,hd ptz ip camera |
||

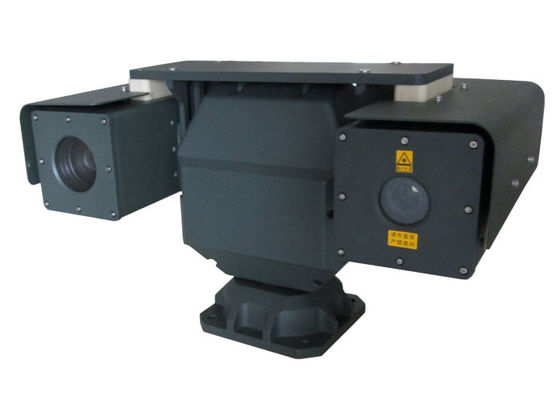

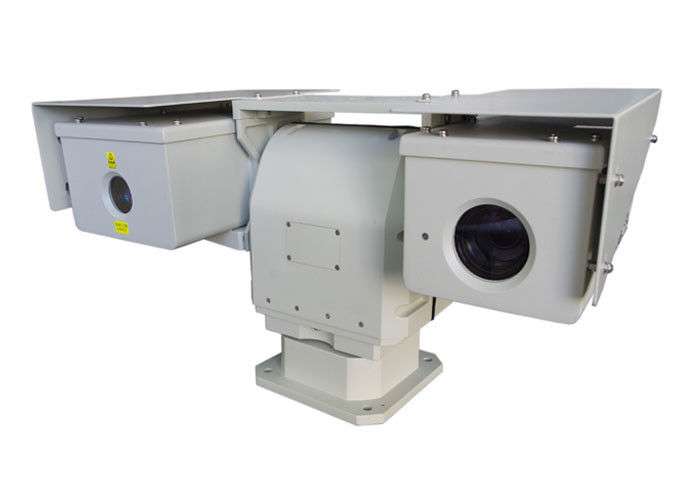

vehicle mounted Long Range Night Vision Infrared PTZ Laser Camera
GRC20 series vehicle mounted optical system IR camera day/night laser camera. It consists of HD visible light cameras, laser illuminator, laser ranging, dynamic organization, precision gears, digital decoder, high-performance image processing unit and controller. All-reinforced structural design, super-strength stainless steel center bearing, multi-round reinforcement design, to ensure the equipment run properly under the condition of the vehicle bump.
Feature
Application
Military vehicle video command system, border and coastal patrol car video surveillance, police vehicle patrol video surveillance systems.
Technical specification
| Model | GRC2132 | |
| Detection | Day:2km; | |
| Night:1km | ||
| Consumption | 10W,808nm , NIR | |
| Laser angle | 1°～20° | |
| Angle and distance matching | DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming | |
| GHT-II super homogenizing HD illumination technology | ||
| 0.01°SLM optical axis aiming and locking | ||
| Camera | 1/2.8'' CMOS,star-class CMOS ,2 megapixel | |
| Automatic ICR switch,H.264 video format | ||
| Lens | 8-320mm HD lens , electrical zoom | |
| Penetrate fog | Optional, optical filtering and AFR electronic enhanced image processing technology, color penetrate fog | |
|
GPS (optional) |
Positioning accuracy | 10m |
| Time update cycle | 1ms,100ms,200ms | |
| Time Accuracy | 0.001s | |
| Baud rate | 4800,9600,19200,38400,57600,115200 | |
| Sensitivity | detect-148dBm,tracking-165dBm | |
| PT and housing | Housing | Integrated multi-window, aluminum, with wiper, waterproof seal, IP66 protection class, dustproof and waterproof |
| Internal control circuit | pan, tilt, rotate( PWM drive), the lens zoom, focus, camera DC12V power supply, laser ranging finder high and stable power supply DC24V ± 1V, color to W/B aux command, preset function, the thermostat function. | |
| Load duty | 30kg | |
| Angle | Pan 360 continuous, tilt + 45 ° ~ -45 °, PT azimuth display. | |
| Speed | Pan 0.01～15°/S; tilt 0.01～15°/S | |
| Seismic reinforcement | Super-strength stainless steel center bearings, with special damping base | |
|
LRF (optional) |
Wave length | 1.57um |
| Detection | 50m—3km | |
| (max 15000m) | ||
| Ranging Accuracy | 3m | |
| Repetition frequency | 10 cycles / minute | |
| Power supply | DC24V | |
| Interface | RS422 full duplex | |
| Others | Interface | 1*RJ45 network HD visible light video, |
| 1* DC24V, 1*RS422 | ||
| Ingress protection | IP66 | |
| Operational temp. | -35℃～+65℃ | |
| Weight | 20kg—65kg(Based on specific configuration ) | |
* The detection distance is related to the object and environment etc. Please contact with us for further information.
