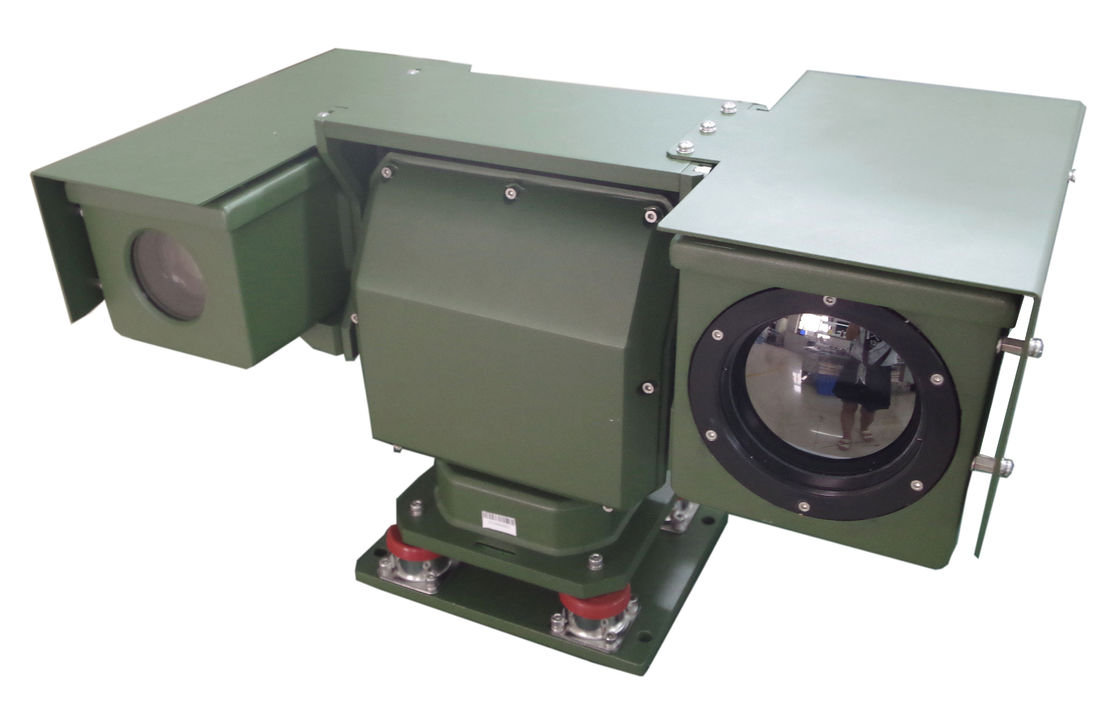

Dual-Sensor PTZ Thermal Imaging Camera , Military Grade Vehicle Mounting Camera

Dual-Sensor PTZ Thermal Imaging Camera , Military Grade Vehicle Mounting Camera
Dual-Sensor PTZ Thermal Imaging Camera , Military Grade Vehicle Mounting Camera Dual-Sensor PTZ Thermal Imaging Camera , Military Grade Vehicle Mounting Camera Dual-Sensor PTZ Thermal Imaging Camera , Military Grade Vehicle Mounting Camera

Large Image :  Dual-Sensor PTZ Thermal Imaging Camera , Military Grade Vehicle Mounting Camera

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC
Model Number: HP-GTVC4516A-2050-IP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: wooden case
Payment Terms: L/C, T/T, Western Union

Dual-Sensor PTZ Thermal Imaging Camera , Military Grade Vehicle Mounting Camera

Description
NETD: 50mK Spectral Range: 7.5~14μm
Lens Control: Motorized Zoom And Focus(optional Auto Focus) Resolution: 336*256/640*512
IR Distance: 10km Feature: IP66
High Light:

thermal imaging camera

,

long range ptz camera

Dual-Sensor Thermal Imaging Camera for Miltary Vehicle Mounting



Feature

  1.  Consist of infrared thermal imaging, visible light camera,anti-shock reinforcement pan tilt, accurate position.
  2.  NETD 50mk, higher than other cameras, obtain more delicate picture quality, little effect by rain and snow fog.
  3.  20kg, 50kg anti-shock reinforcement heavy duty CNC pan tilt, 360 continuous rotation observation, no dead ends, smooth operation, image small dithering.
  4.  Full-reinforced structural design, super-strength stainless steel center bearing, multi-round reinforcement designed to meet military vehicle environmental vibration, anti-shock requirements
  5.  Housing using superior aluminum material, IP66 protection, anti-rain, anti-dust, can adapt to a variety of harsh environments



Technical specification

Model GTVC4307-1930-IP GTVC4510-2030-IP GTVC4515-2050-IP
Detection Vehicle: 6500m Vehicle: 8600m Vehicle: 13000m
  Human: 2500m Human: 3400m Human: 4800m
Identification Vehicle:1800m Vehicle: 2400m Vehicle: 3400m
  Human: 700m Human: 900m Human: 1300m
Thermal sensor VOx uncooled detector, 324*256(640*512 optional); 7.5um-14um spectral response, 50mk NETD, 2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement;

Thermal lens 25mm~75mm 21mm~105mm 31mm~155mm
  3CAM precision mechanizing(auto focus optional)
FOV 13°~4.3° 18°~3.4° 11.2°~2.2°
Visible camera 1/1.8'' Sony CMOS, 2.1 mega pixels, 1920*1080, auto B/W to color at 0.001lux; ICR optical filter; H.264
Visible Lens 4.3mm~129mm, mega pixels, auto focus 12~320mm, mega pixels, motorized zoom and focus, auto iris 15~528mm,mega pixels, motorized zoom and focus, auto iris(25~750mm optional)

GPS

(optional)

Positioning accuracy 10m
Time update cycle 1ms,100ms,200ms
Time Accuracy 0.001s
Baud rate 48,009,600,192,003,800,000,000,000,000
Sensitivity detect-148dBm,tracking-165dBm
PT and housing Housing Integrated multi-window, aluminum, with wiper, waterproof seal, IP66 protection class, dustproof and waterproof
Internal control circuit pan, tilt, rotate( PWM drive), the lens zoom, focus, camera DC12V power supply, laser ranging finder high and stable power supply DC24V ± 1V, color to W/B aux command, preset function, the thermostat function.
Load duty 30kg 50kg
