Product Details:
|
| Type: | IP Camera | Waterproof: | IP66, Waterproof, Dustproof |
|---|---|---|---|
| Sensor: | CMOS | Structure: | Double Window Design |
| Ir Distance: | 2km | Laser: | 808nm NIR |
| Highlight: | long range ccd camera,long range ir ip camera |
||

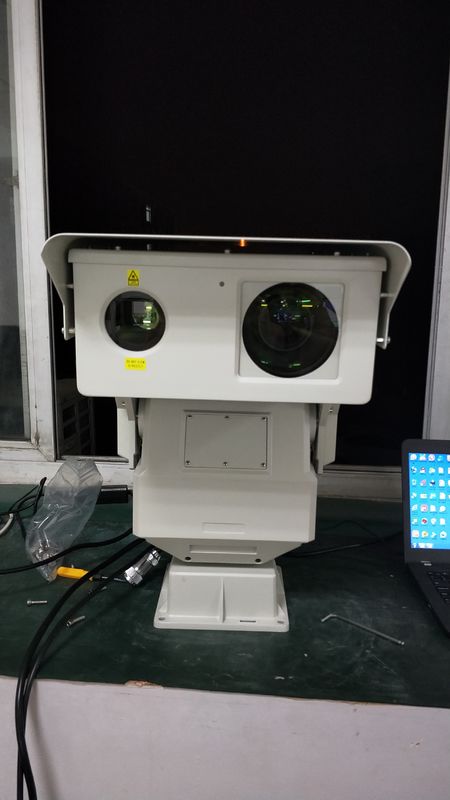

City Surveillance Long Range HD Infrared CCTV laser night vision camera
Sirius RC long-range PTZ infrared laser camera is designed for 24 hours monitoring. With super homogenizing NIR laser and low illumination megapixel telephoto lens. The max detection distance for human/car/object is 6 km in the day and 3 km in the night
Built-in technical grade embedded control electronic system, the camera operation like zooming, focusing, video switch, rotation is stable and accurate. One integral aluminum alloy housing and weatherproof IP66 make sure it works well outdoor.
Feature
Application
border/coastal defense, maritime, oilfield, flood control, forest fire prevention, safe city, public security, railway ,seaport and other places need long-range night vision monitoring.
| Model | RC2013 | RC2055 | RC2075 | RC20100 |
| Detection | Day:1km; | Day: 3km; | Day: 4km; | Day:6 km; |
| Night:500m | Night: 1.5km | Night: 2km | Night:3 km | |
| Consumption | 6W,808nm , military NIR | 12W,808nm ,military NIR | 15W,808nm ,military NIR | 15W,808nm ,military NIR |
| Laser angle | 1.5°～20° | 0.7°～20° | 0.5°~20° | 0.3°～20° |
| Angle and distance matching | 1.DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming | |||
| 2.GHT-II super homogenizing HD illumination technology | ||||
| 3.0.01°SLM optical axis aiming and locking | ||||
|
Camera
|
1/2.8'' CMOS | 1/1.8''CMOS | ||
| 0.005lux high sensitive color to B/W CCD | 0.0002lux high sensitive color to B/W CCD | |||
| 2MP, 1920*1080,Automatic ICR switch | ||||
| H.264/MPEG4/MIPEG video format, support dual stream | ||||
| Video Bitrate 32Kbps~16Mbps,60Hz30 frame/S | ||||
| Support SD storage | ||||
| Support fog penetration, avoid strong light,128dB WDR, 3D denoise, anti-shake DSP, auto back focus adjustment | ||||
| Lens | 8-130mm | 18-550 mm | 30~750mm | 16.7-1000mm |
| HD infrared correction, same focus at day and night/super caliber | ||||
| motorized /manual zoom, DC 8~12V | ||||
| Penetrate fog | AFR | AFR, optional for fog filter | ||
| LPR (optional) | Avoid strong light automatically, license plate recognition | |||
| Housing | 1. Material: integral aluminum alloy housing,sealed and waterproof | |||
| 2.Structure: double window design (wiper for option) | ||||
| 4.Weather proof: IP66, waterproof, dustproof | ||||
| 5.Connector:Aviation Water-Proof Connector | ||||
|
PT
|
Load duty:25kg | 50kg | ||
| Pan: 0~360° continuously,Tilt: +40°～-75° | Pan: 360°continuously,Tilt: +45°～-45° | |||
| Rotation speed:Pan: 0.01～60°/S,Tilt 0.01～30°/S | Pan: 0.01～30°/S,Tilt: 0.01～15°/S | |||
| Preset:80 with patrol and scan function | Preset:80 (245 for option) with patrol and scan function | |||
| Interface | 1*RJ45,1*AC/DC 24V | |||
| Reserve RC422/485 and analog video output, connect with radar, GIS or others | ||||
| Military aviation Water-Proof Connector | ||||
| Protocol |
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP and so on Support Onvif 2.0 Pelco-P,Pelco-D, baud rate 2400,4800,9600,19200 (optional) |
|||
| Power supply | AC/DC 24V±10%,50Hz,150W, AC220V->AC24V adapter (DC12V for option) | |||
|
1.Working temperature: -25℃～+55℃ (-40℃ optional) 2.Storage temperature:-35℃～+65℃ 3.Humidity:<90% 4.Anti-Shake/Anti-shock 6.IP66 ingress protection |
||||
| Weight | ≤22kg | ≤30kg | ≤40kg | |
