Product Details:
|
| NETD: | 50mK | Spectral Range: | 7.5～14μm |
|---|---|---|---|
| Consumption: | 10W, 808nm, NIR | Image Processing: | AGC & 2X Digital Amplification |
| Technology: | Night Vision | CCD: | CMOS |
| High Light: | thermal surveillance camera,security camera system |
||

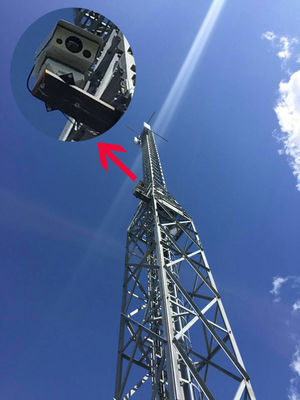

Long Range Infrared Thermal Surveillance System for 10km Border security
Feature
Application
Border defense, railway&expressway security, seaport&airport security, city security, forest fire prevention, river&lake monitoring.
Technical specification
| Type | TRC4105A-2022-IP | TRC4307A-2050-IP | TRC4511A-2075K-IP | |
| Detection | Vehicle: 4200m | Vehicle: 6500m | Vehicle: 8600m | |
| Human: 1640m | Human: 2500m | Human: 3400m | ||
| 5th generation uncooled FPA sensor Resolution 336 × 256 pixel | ||||
| Spectral range 7.5 ～ 14 μ m, NETD 50mk | ||||
| Thermal camera | 50mm | 25mm ～ 75mm | 21mm ～ 105mm | |
| 1. Electric zoom and focus | ||||
| 2. Special AS & DOE optical zooming lens | ||||
| 3. 3CAM high-precision optomechanical design | ||||
| Field of view | 6.5 °× 4.8 ° | 13 °～ 4.3 ° | 18 °～ 3.4 ° | |
| IFOV | 0.34mrad | 0.22 ～ 0.68mrad | 0.17 ～ 0.85mrad | |
| Image processing | SDE digital image processing | |||
| 10 pseudo color and B/W, B/W inverse | ||||
| AGC & 2X digital amplification | ||||
| Consumption | 6W, 808nm, NIR | 10W, 808nm, NIR | 15W, 808nm, NIR | |
| Laser angle | 1.5 °～ 20 ° | 0.7 °～ 20 ° | 0.5 °～ 20 ° | |
| Cooling Package | 1. filled with inert gas seal to prevent oxidation | |||
| 2. Laser with distributed design with more cooling capacity | ||||
| Angle and distance matching | 1. Automatic tracking or manual fine-tuning intelligent matching | |||
| 2. DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming | ||||
| 3. Z-super laser angle and magnification matching algorithm, the tracking response time <30ms | ||||
| 4. 0.01°SLM optical axis aiming and locking | ||||
| CCD | 1/2.8'' CMOS 0.005lux low illumination color to B/W | 1/1.8'' CMOS 0.0002lux Star Ultra low-light color | ||
| 1. 2 megapixel HD, 1920*1080,Automatic ICR switch | ||||
| 2. H.264/MPEG4/MIPEG H.264 video format | ||||
| 3. Video bit rate 32Kbps ~ 16Mbps, 60Hz30 frames / sec | ||||
| 4. Support SD card local storage | ||||
| 5. ABF Auto Back Focus adjustment function | ||||
| Visible Lens | 1. 10mm～220mm | 1.15～528mm | 1. 20～750mm | |
| 2. F2.2 ～ 360 | 2. F4.5 ～ 360 | 2. F4.6 ～ 360 | ||
| 3. FOV (H)43 °～ 2.8 ° | 3.FOV ( H ) 15 °～ 0.7 ° | 3. FOV (H)11 °～ 0.5 ° | ||
| 4. Close-up 1.5m | 4. Close-up 3 meter | 4. Close-up 2.5 meter | ||
| 5. HD infrared correction | 5. 105mm Large Aperture | 5. 105mm Large Aperture | ||
| Motorized & manual focus, DC8-12V, auto iris, (optional auto focus), DC5V precision potentiometers preset positions, zoom focus feedback | ||||
| Fog penetration | Optical filtering and AFR image processing technology | |||
| Housing | 1. Material: aluminum alloy, stainless steel fasteners, anti strong winds. | |||
| 2. Structure: integrated design, | ||||
| 3. The surface coating: PTA three anti-paint, anti-seawater corrosion | ||||
| 4. Protection grade: IP66, waterproof and dustproof | ||||
| 5. Interface: Aviation waterproof plug | ||||
| PT | 1, Load duty : 30kg | 1, Load duty : 50kg | ||
| 2, Angle: | 2, Angle : Pan 360 ° 360°continuously | |||
| Pan 360°continuously | Tilt: +40 °～ -45 ° | |||
| Tilt: +40 °～ -45 ° | 3, Speed: pan 0.01 ～ 30 ° /S, Tilt 0.01 ～ 15 ° /S | |||
| 3, Speed: pan 0.01 ～ 30 ° /S, Tilt 0.01 ～ 15 ° /S | 4, Preset : 80 , Patrol & Scan | |||
| 4, Preset : 80 , Patrol & Scan | 5, Orientation and angle real-time display, with zero correction | |||
| 5, Orientation and angle real-time display, with zero correction | ||||
| Interface | 1. Intelligent IP box, one 10M / 100M adaptive Ethernet port (containing visible thermal image + HD + RS485 control), AC24V / DC24V, | |||
| 2. (Optional) Reserved RS422 / 485 and analog video, azimuth return for radar, GIS linkage position, or third-party intelligent analysis | ||||
| 3, Military-grade waterproof aviation plug | ||||
| Protocol | 1. TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols | |||
| 2. Support ONVIF2.0 | ||||
| 3, Pelco-P, Pelco-D and other industry-standard protocol, (optional) Baud rate 2400, 4800, 9600, 19200 | ||||
| Power | AC24V / DC24V ± 10%, 50Hz, 150W, standard AC220V-> AC24V adapter | |||
| (Optional DC12V power supply, RC2013 only use AC24V, not DC power supply) | ||||
| Environmental Indicators | 1. Working temperature: -25 ℃ ~ + 55 ℃ | |||
| 2. Storage temperature: -35 ℃ ~ + 65 ℃ | ||||
| 3. Humidity: <90% | ||||
| 4. Ingress Protection: IP66 | ||||
| Weight | ≤ 30kg | ≤ 40kg | ≤ 50kg | |
* The detection distance is related to the object and environment etc. Please contact with us for further information.
