Product Details:
|
| Ccd: | 2 Mega Pixel,1920X1080 | Spectral Range: | 7.5～14μm |
|---|---|---|---|
| PTZ: | Load: 30kg | Resolution: | 336*256/640*512 |
| Technology: | Infrared Thermal | Feature: | Waterproof |
| High Light: | long range night vision security camera,long range surveillance camera |
||

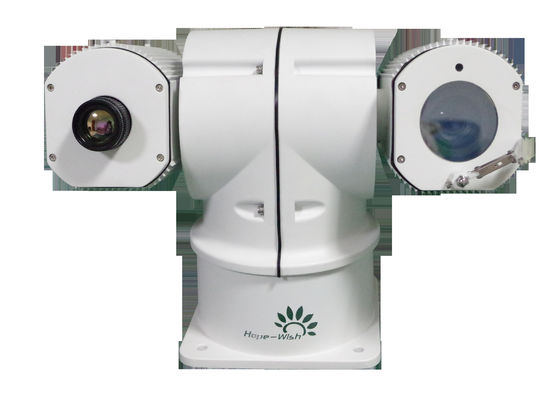

Thermal Imaging Long Range Night Vision Camera for Temperature Measure
Description:
KTVC dual channel cameras are designed based on the latest 5th uncooled infrared technology. With 336 x256 /640 x480 UFPA sensor. Built- in advanced digital circuit processing technology, which is capable of big scope of temperature detection of targets and output temperature distribution image and temperature information. KTVC series dual channel camera is equipped with 2 Megapixel HD box camera and 360 degree rotation PTZ, which ensure 24 hours real -time monitoring. One integral aluminum alloy housing sealed with nitrogen and IP66 ingress protection ensures its proper functioning outdoor.
KV270 temperature measurement system software, which can realize real time dynamic max temperature point tracking, position coordinates of max temperature and mini temperature. 10 target sub regions, screen display the max temperature, mini temperature, average temperature etc. Built in temperature absolute threshold, airspace relative threshold etc. 6 kinds of alarm algorithms. Alarm (audible and light) will be triggered when temperature exceeds preset value. This camera can be ganged with visual camera for the convenience of timely monitoring of targets. Besides, the camera can also be linked to firefighting system and broadcast systems via the preset switch alarm.
Application
Power detection, substation, petrochemical, online test of industrial equipment operating, medical thermometer, health and epidemic prevention, building inspection, circuit research and design thermal analysis.
Technical specification
KTVC series dual channel temperature detection security camera
| Model | KTVC4101-1920 | KTVC4102-1920 | KTVC4105-1920 |
| FOV | 43.6°*32.7° | 27°*20.2° | 11°*8.2° |
| Thermal sensor | 5th generation UFPA | ||
| Resolution | 384*288 pixel(640*512 optional) | ||
| Spectral response | 7.5～14μm | ||
| NETD | 50mK(@25℃ F1.0) | ||
| Thermal lens | 10mm F1.0 | 20mm F1.0 | 50mm F1.0 |
| Visible CCD | 1/2.8'' CMOS, 2 mega pixels, ICR optical filter, auto color to B/W. | ||
| Visible lens | 4.7～94mm lens,motorized zoom and focus. | ||
| Image processing | 1. Stable operation temperature without TEC, starting time less than 4 seconds | ||
| 2. SDE digital image processing | |||
| 3. 10 pseudo color and B/W, B/W conversion | |||
| 4. 2X digital amplification | |||
| Temperature accuracy | 1. Temperature accuracy: ±2℃ or ±2% of reading,take the maximum | ||
| 2. Temperature range: -20℃－120℃(650℃ optional) | |||
| 3. Adjustable parameters, include temperature correction, emissivity, atomospheric transimissivity, humidity | |||
| Temperature model | 1. Support high, low and average temperature tracking, point, line and rectangular detection; multi addable detection targets | ||
| 2. Each road can be set up to 10 alarm region, independent threshold value and sampling cycle setting, independent curve chart | |||
| 3. Fixed point monitoring, multi areas addable. | |||
| Overheat alarm | 1. 6 kinds of alarm algorithm, maximum, minimum, average, middle position absolute threshold and airspace relative, time domain, relative value alarm temperature mutations | ||
| 2. Sound, light alarm. Presets a linkage visible light camera ptz automatic observation target. Reserved switch alarm output, manual/automatic fire extinguishing system and the broadcasting system | |||
| Alarm log | 1. Real-time record each object temperature data, automatically generate trend curve. | ||
| 2. Can automatic storage temperature when trigger the alarm data, snapshot images and videos, establish and record the related logs, video storage, real-time playback | |||
| PT | 1. Duty: 15kg | ||
| 2. Rotation: pan: 0～360°, tilt: -75～+40° | |||
| 3. Rotation speed: Pan: 0.1～60°/S, tilt:0.1～30°/S | |||
| 4. 256 presets | |||
| 5. Anti-shake | |||
| Interface | 1. One RJ45 network interface (including video and temperature data, azimuth of return data, PT control transmission), one switch alarm output (linkage acousto-optic alarm, start, fire control system) | ||
| 2. AC24V/DC24V | |||
| 3. Waterproof aviation connector | |||
| Environment parameters | 1. 1. Protection:One integral aluminum alloy housing, IP66 | ||
| 2. Operational temp.: -25°～55°(-45°optional) | |||
| 3. Power consumption: common 50W, peak 100W | |||
* The detection distance is related to the object and environment etc. Please contact with us for further information.
