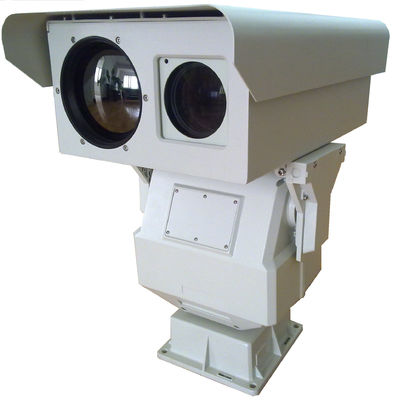

Thermal PTZ Long Range Night Vision Camera Forest Fire Early Warning

Thermal PTZ Long Range Night Vision Camera Forest Fire Early Warning

    • Thermal PTZ Long Range Night Vision Camera Forest Fire Early Warning
    • Thermal PTZ Long Range Night Vision Camera Forest Fire Early Warning
    • Thermal PTZ Long Range Night Vision Camera Forest Fire Early Warning
  • Thermal PTZ Long Range Night Vision Camera Forest Fire Early Warning

    Product Details:

    Place of Origin: China
    Brand Name: Hope-Wish
    Certification: CE,FCC
    Model Number: TTVC4510-2030

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: wooden case
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    NETD: 50mK Operational Temp: -25°~55° (-40° Optional)
    Sensor: Uncooled UFPA Sensor Resolution: 336*256/640*512
    Detector: Vox Frame Rate: 25Hz
    High Light:

    long range surveillance camera


    cctv security cameras

    Forest Fire Early Warning Thermal PTZ Long range Night Vision Camera


    TTVC series dual channel hot spots intelligent alarm thermal camera

    1.  designed based on the latest 5th uncooled infrared technology and continuously infrared optical zoom technology.
    2.  With 336*256 /640*512 uncooled FPA sensor, advanced digital circuit and image processing technology, the camera can provide users a premium image.
    3.  Built-in intelligent analysis module, hot spot detection algorithm, and can automatically detect the flame, vehicles, personnel and other heat sources over a long distance goal, supplemented by overloading 360°degree PT, which can realize 6000m within the scope of the fire detection and alarm display.
    4.  One integral aluminum alloy housing sealed with nitrogen and IP66 ingress protection ensures its proper functioning outdoor.




    Forest fire prevention, animal husbandry and grassland fire, coal mine fire prevention, large granary fire automatic remote moitoring.


    Technical specification

    Model TTVC4105-1930 TTVC4307-1930 TTVC4510-2030 TTVC4515-2050 TTVC4515-2075
    Detection*(for 2mX2m hot spots) 2000m 3000m 4000m 6000m 6000m
    Sensor 5th generation MEMS UFPA VOx sensor
    Resolution 336*256 pixel(640*512 optional)
    Spectral response 7.5~14μm
    NETD 50mK(@25℃F1.0)
    Focal length 50mm 25-75mm, 3X continuous zoom 21-105mm,5X continuous zoom 31-155mm,5X continuous zoom 31-155mm, 5X continuous zoom
    FOV 6.5°*4.8° 13°*9.7°~4.3°*3.2° 18°*13.5°~3.4°*2.7° 11.25°*8.5°~2.25°*1.7° 11.25°*8.5°~2.25°*1.7°
    IFOV 0.34mrad 0.22~0.68mrad 0.17~0.85mrad 0.11~0.55mrad 0.11~0.55mrad
    Lens control Motor zoom, focus (optional auto focus)

    ü 1/2.8''CMOS;

    ü 0.01lux low illuminate color to BW;

    ü 2.1megapixel, auto ICR switch;

    ü H264/MPEG4/MIPEG video standard, support dual stream;

    ü Video data rate:32Kbps~16Mbps,60hz,30 frame frequency /s .

    1/1.8'' CMOS ;

    0.0002lux star light level super low illuminate color to BW ;

    2 mega pixel,1920X1080,integral ICR filter ;

    H.264/MPEG4/MIPEG video format, support dual stream ;

    Video data rate :32Kbps~16Mbps,60Hz30 frame/s.

    ABF auto adjustment.


    ü 4.3~129mm

    ü F1.6~F5.0

    ü FOV(H)65°~2.3°

    ü Mega pixel, motorized variable, 1s auto focus.

    ü 12~320mm

    ü F2.0~360

    ü FOV(H)4.1°~1.1°

    ü M.O.D : 1.5m

    ü Megapixel HD Infrared correction

    ü Electric variable DC8~12V,

    ü auto iris




    M.O.D. : 4m

    Wide spectral design

    Electric variable,DC8-12V,auto iris






    105mm aperture ;

    Electric variable,DC8-12V,auto iris, DC5V accurate preset,zoom / focusfeedback

    Image processing 1. Stable operation temperature without TEC, starting time less than 4 seconds
    2. SDE digital image processing
    3. 10 pseudo color and B/W, B/W inverse
    4. Brightness, contrast, gamma correction
    5. 2X digital amplification
    6. Optional penetrate fog function
    Hot target intelligent alarm 1. 255 adjustable alarm threshold values
    2. Adjustable monitoring area, auto detection of target size
    3. 1-16 alarm targets, auto selection of the most obvious one
    4. Two types of alarm: screen display and audible alarm
    5. Less than 0.01s alarm response ensures no omission
    6. All parameters can be modified via OSD menu, universally adaptable
    7. Optional IP network coding transmission, and provide free platform and SDK
    Housing 1. Material: integral aluminum alloy housing, stainless steel, anti strong wind ;
    2. Structure: Integral double window
    3. Window glass: 4mm optical glass ,transmission>98% ;
    4. Surface coating: PTA three-proofing coatings ,
    5. Protection:IP66 sealing rate, anti sea water corrosion(optional);
    6. Applied thermal balance design and wide temperature electronics ,which could operate under high / low temperature ;
    7. Interface : waterproof aviation connector ;
    PT 1. Load: 30kg 50kg
    2. Rotation: pan: 0~360°, tilt: -75°~+45° pan: 0~360°, tilt: -45°~+45°
    3. Rotation speed: Pan:0.1~60°/s, tilt: 0.1~30°/s Pan:0.1~30°/s, tilt: 0.1~15°/s
    4. 80 preset, 256 can be extended. Intelligent functions such as cruise, the apple peel scanning
    5, windproof, anti-shake
    6, automatic locking function, produce the alarm when without background software command
    7, the OSD menu function, location, real-time display
    8, can real-time back azimuth information, linkage with GIS map location
    Main board 1. 32 bit ARM embedded MCU control circuit ;
    2.DC3V,5V,12V,24V multiple power supply to ensure stable operation of camera ,detector ,lens and PT ;
    3. 5 groups of 12bits AD sampling hole, built-in synchronous algorithm data ,which could ensure focal length and PT rotation synchronously follow up with presets ;
    4.Reserved video processing interface , could extend lens auto focus function;
    5.Optional: Intelligent 3D positioning function. Control PT rotation and Lens zoom functions .
    Interface 1. RS-422(PELCO D protocol, Baud rate 2400bps), PAL/NTSC, HD network, switch alarm
    2.Optional DVE102 intelligent hybrid encoder, RJ45 network interface communication (including video and azimuth of return data, PTZ control, alarm data transmission)
    3. AC24V(DC24V optional)
    4. Military level waterproof connector
    Protocols 1. Support TCP/IP,HTTP,DHCP,DNS,DDNS,RTP protocols ;
    2. Support Onvif 2.0
    3. Support Pelco-D Pelco-P, baud rate:2400,4800,9600,19200 optional ;
    Power supply AC24V / DC24V ±10 %,50HZ, AC220V→AC24V adapter .
    Environment indicator 1. One integral aluminum alloy housing. IP66 ingress protection
    2. Operational temp.: -25°~55° (-40° optional)
    3. Storage temp.: -35°~75°

    * The detection distance is related to the object and environmentetc. Please contact with us for further information.
