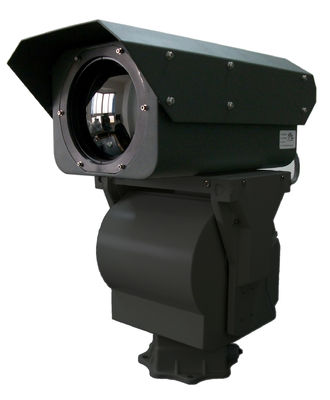

IR Long Distance PTZ Thermal Imaging Camera With 640 * 512 Detector IP66

IR Long Distance PTZ Thermal Imaging Camera With 640 * 512 Detector IP66
IR Long Distance PTZ Thermal Imaging Camera With 640 * 512 Detector IP66 IR Long Distance PTZ Thermal Imaging Camera With 640 * 512 Detector IP66 IR Long Distance PTZ Thermal Imaging Camera With 640 * 512 Detector IP66 IR Long Distance PTZ Thermal Imaging Camera With 640 * 512 Detector IP66

Large Image :  IR Long Distance PTZ Thermal Imaging Camera With 640 * 512 Detector IP66

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC
Model Number: TC6307
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: wooden case
Payment Terms: L/C, T/T, Western Union

IR Long Distance PTZ Thermal Imaging Camera With 640 * 512 Detector IP66

Description
NETD: 50mK Imaging Processing: 10 Pseudo Color And B/W, B/W Inverse.
Sensor: Uncooled UFPA Sensor Resolution: 640*512
Feature: IP66 Interface: PAL/NTSC Video Output
Highlight:

long range ir camera

,

outdoor ptz ir camera

TC6307 Infrared Long Range PTZ Thermal Imaging Camera with 640*512 detector



Feature:

  1.  based on the latest uncooled IR sensitive technology and continuously IR optical zoom.
  2.  User could get a best imaging details with 640*512 resolution uncooled FPA sensor, advanced digital circuit and image processing algorithm.
  3.  Special design of 5X optical zooming lens have detection distance 16km, suit for both seeking and watching.
  4.  One integral aluminum alloy housing make sure the camera works well outdoor.

Technical specification

Model TC4307-S TC4510-S TC4412-S TC4515-S TC4519-S
Detection Vehicle:6500m Vehicle:8600m Vehicle:10000m Vehicle: 13000m Vehicle: 16400m
  Human:2500m Human:3400m Human:4000m Human: 4800m Human: 5800m
Identification Vehicle:1800m Vehicle:2400m Vehicle:2800m Vehicle:3400m Vehicle:4200m
  Human:700m Human:900m Human:10000m Human:1300m Human: 1600m
Sensor 5th generation UFPA sensor
Resolution 336*256 pixel (640*512 optional)
Spectral 7.5~14μm
NETD 50mK(@25℃ F1.0)
Focal length 25~75mm 21~105mm 30~120mm 31~155mm 38~190mm
FOV(H) 13°~4.3° 18°~3.4° 11°~2.8° 11.2°~2.2° 9.5°~1.9°
IFOV 0.22~0.68mrad 0.17~0.85mrad 0.14~0.57mrad 0.11~0.55mrad 0.09~0.45mrad
Lens control Motorized zoom and focus(optional auto focus)
Image processing 1. Stable operational temperature without TEC, starting time less than 4 seconds
2. SDE digital image processing
3. 10 pseudo color and B/W, B/W inverse
4. AGC
5. 2X digital amplification
Housing 1. Material:High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated
2. Structure:Integrated single-window design
3. Surface coating:PTA three-resistance coating, Seawater corrosion resistance
4. Interface:Aviation waterproof plug
PT(optional) 1. Duty: 20kg
2. Rotation: Pan: 0~355°, Tilt: -60~+10°
3. Rotation speed: Pan: 9°/S, Tilt: 4°/S,
4. Preset 32(Optional variable speed PT)
Interface
  •  RS-485(PELCO D protocol, baud rate 2400bps
  •  Remote OSD setting
3. PAL/NTSC video output
4. AC24V ( DC12V optional)
5. Waterproof connector
Environment
  •  Operating temperature:-25℃~+55℃(-40℃ optional)
  •  Storage temperature:-35℃~+75℃
  •  Humidity:<90%
  •  Ingress protection:IP66

* The detection distance is related to the object and environment etc. Please contact with us for further information.



IR Long Distance PTZ Thermal Imaging Camera With 640 * 512 Detector IP66 0



IR Long Distance PTZ Thermal Imaging Camera With 640 * 512 Detector IP66 1
