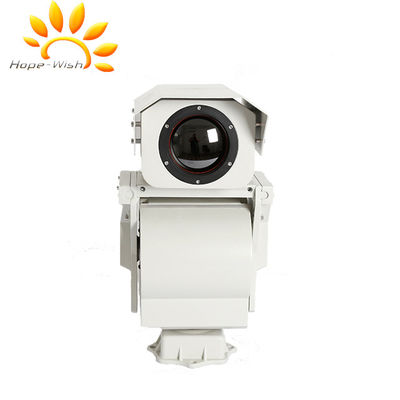

13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Waterproof

Certification
China Jinan Hope-Wish Photoelectronic Technology Co., Ltd. certification
China Jinan Hope-Wish Photoelectronic Technology Co., Ltd. certification
Customer Reviews
1. catch thieves stealing while reducing the number and cost of guards. 2. we have a super-surveillance camera and see the item clearly at night

—— Christian

I can see if the guards are sleeping. It has a tremendous effect in keeping them awake and doing their job rather than leaving their posts to chat

—— Richard

I'm Online Chat Now

13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Waterproof

13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Waterproof
13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Waterproof 13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Waterproof 13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Waterproof 13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Waterproof

Large Image :  13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Waterproof

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC
Model Number: TC4516
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: wooden case
Payment Terms: L/C, T/T, Western Union

13km Marine Surveillance PTZ Thermal Imaging Camera Long Range Waterproof

Description
NETD: 50mK INTERFACE: PAL/NTSC Video Output
Sensor: Uncooled UFPA Sensor Resolution: 336*256/640*512
Lens: 31-155mm Interface: PAL/NTSC
High Light:

long range ir camera

,

infrared thermal imaging camera

TC4516 13km Long Range Marine Surveillance PTZ Thermal Imaging Camera





Feature

  1.  NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.
  2.  Special AS optical zooming lens and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.
  3.  Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range. SDE digital image processing, no image noise, 10 pseudo color image and B/W, B/W inverse.
  4.  One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.

Application

Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.



Technical specification



Model TC4307A TC4511A TC4412A TC4516A TC4519A
Detection Vehicle:6500m Vehicle:8600m Vehicle:10000m Vehicle: 13000m Vehicle: 16400m
Human:2500m Human:3400m Human:4000m Human: 4800m Human: 5800m
Identification Vehicle:1800m Vehicle:2400m Vehicle:2800m Vehicle:3400m Vehicle:4200m
Human:700m Human:900m Human:1000m Human:1300m Human: 1600m
Sensor 5th generation UFPA sensor
Resolution 336*256 pixel (640*512 optional)
Spectral 7.5 ~ 14μm
NETD 50mK (@25 ℃ F1.0)
Focal length 25 ~ 75mm 21 ~ 105mm 30 ~ 120mm 31 ~ 155mm 38 ~ 190mm
FOV(H) 13° ~ 4.3° 18° ~ 3.4° 11° ~ 2.8° 11.2° ~ 2.2° 9.5° ~ 1.9°
Lens control Motorized zoom and focus(optional auto focus)
Lens design AS+DOE Advanced optical design, High infrared transmittance
Zoom without virtual focus
Image processing Stable operational temperature without TEC, starting time less than 4 seconds
SDE digital image processing
10 pseudo color and B/W, B/W inverse
AGC
2X digital amplification
Housing Material : High strength aluminum alloy shell , waterproof seal , To avoid the growth of mold and moisture generated
Interface : Aviation waterproof plug
PT ( optional ) Duty: 20kg
Rotation: Pan: 0 ~ 355°, Tilt: -60 ~ +10°
Rotation speed: Pan: 9°/S, Tilt: 4°/S ,
Preset 32 ( Optional variable speed PT )
Interface RS-485 ( PELCO D protocol, baud rate 2400bps
Remote OSD setting
PAL/NTSC video output
AC24V ( DC12V optional)
Waterproof connector
Environment Operating temperature : -25 ℃~ +55 ℃( -40 ℃ optional )
Storage temperature : -35 ℃~ +75 ℃
Humidity : <90%
Anti-lighting : built-in auto Fuse-protected device, Power 4000V , Signal 2000V
Ingress protection : IP66

* The detection distance is related to the object and environment etc. Please contact with us for further information
