Product Details:
|
| Image Processing: | 2X Digital Amplification | PTZ: | Pan: 0～355°, Tilt: -60～+10° |
|---|---|---|---|
| Sensor: | Uncooled UFPA Sensor | Resolution: | 336*256 |
| Focal Length: | 95/285mm | Warranty: | One Year |
| High Light: | long range security camera,long distance surveillance camera |
||

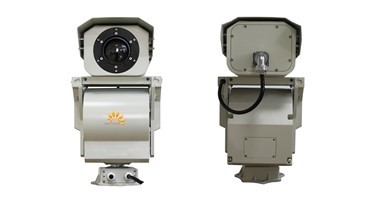

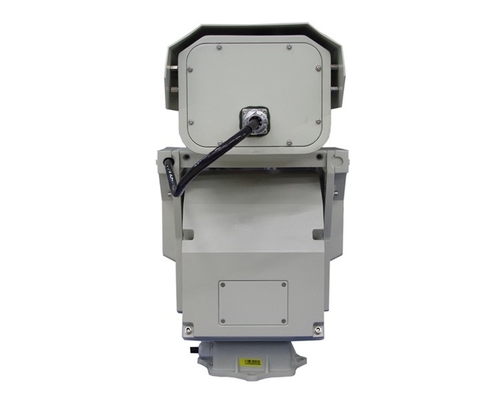

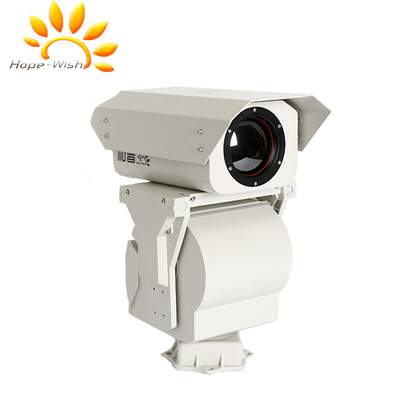

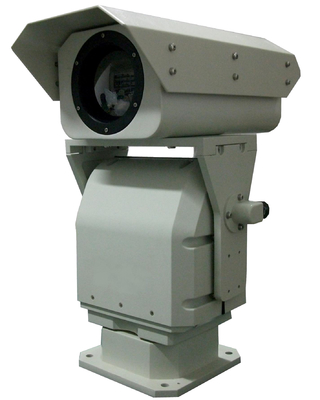

Double FOV Uncooled PTZ Thermal Imaging Camera for Long Range Surveillance
Feature
Application
Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.
Technical specification
| Model | TC41021- S | TC4328- S |
| Detection | Vehicle: 17400m | Vehicle: 18000m |
| Human: 6800m | Human: 8000m | |
| Recognition | Vehicle: 4800m | Vehicle: 6000m |
| Human: 1800m | Human: 2600m | |
| Sensor |
1,Detector:5th generation UFPA Vox Detector ; 2,Resolution:336×256,(640X512 optional) 3,NETD:50mK(@25℃ F1.0) 4,Spectral range:7.5～14μm |
|
| NETD | 50mK(@25℃ F1.0) | |
| Focal length |
1,Length: 21～210mm 2,FOV:16°×12°～1.6°×1.2° 3,Motorized zoom,focus(auto focus optional ) 4,AS+DOE advanced optical design, high infrared transmission; 5,Applied 3CAM high precision design; |
1,Length: 95/285mm 2,FOV:3.4°×2.4°/1.1°×0.8° 3,Motorized zoom, auto focus ; 4,AS+DOE advanced optical design, high infrared transmission; 5,Applied 3CAM high precision design; Dual focal fast switch ; |
| IFOV | 0.08～0.85mrad | 0.06～0.18mrad |
| Image processing | 1. stable operational temperature, starting time less than 4 seconds | |
| 2. SDE digital image processing | ||
| 3. 10 pseudo color and B/W, B/W inverse | ||
| 4. AGC | ||
| 5. 2X digital amplification | ||
| Housing |
1,Material:aluminum alloy housing,waterproof; 2,Structure:Integral single window design ; 3,Surface:PTA coating,anti sea water corrosion; 4,Sealing rate:IP66 5,Built-in temperature controller,thermal balance design; 6,Interface:aviation waterproof connector ; |
|
| PTZ(optional) |
1,Load:50kg military level digital PT ; 2,Angle:pan 0～360°,tilt -45°～+45° 3,Speed:0.01～30°/S high precision variable speed control and locking ; 4,Preset:80 presets,support lens zoom and focus memory,variable speed scanning 0～30°/S ,support apple peel scanning function; 5,Protocol:Pelco-P,Pelco-D 6,Baud rate:2400,4800,9600,19200 optional ; |
|
| Consumption ,weight |
1,Consumption(PT included):min.40W,max.120W 2,weight(PT included):≤40kg |
|
| Interface | 1. RS-485(PELCO D protocol, baud rate 2400bps), RS-232(option) | |
| 2. Remote OSD setting | ||
| 3. PAL/NTSC video output | ||
| 4. AC24V( DC12V option) | ||
| 5. Waterproof connector | ||
| Environment indicator |
1,Working temperature:-25℃～+55℃(-40℃ optional) 2,Storage temperature:-35℃～+75℃ 3,Humidity:<90% 4,Anti-shock:0.2g(GB/T15211—20135.4 harshest level 2 standard) 5,Anti-resistance:15g(GB/T15211—20135.3 harshest level 3 standard) 6,Anti-lightening:power 4000V,signal 2000V 7,Anti salty:PH6.5～7.2,continuous sprarying 48 hours ; 8,Protection rate:IP66 |
|
* The detection distance is related to the object and environmentetc. Please contact with us for further information.
