Waterproof Long Range Night Vision CCTV Camera Digital Amplification

Waterproof Long Range Night Vision CCTV Camera Digital Amplification
Waterproof Long Range Night Vision CCTV Camera Digital Amplification Waterproof Long Range Night Vision CCTV Camera Digital Amplification Waterproof Long Range Night Vision CCTV Camera Digital Amplification Waterproof Long Range Night Vision CCTV Camera Digital Amplification

Large Image :  Waterproof Long Range Night Vision CCTV Camera Digital Amplification

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC
Model Number: TC6105
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: wooden case
Payment Terms: L/C, T/T, Western Union

Waterproof Long Range Night Vision CCTV Camera Digital Amplification

Description
NETD: 50mK Material: Aluminum Alloy Housing
Sensor: Uncooled UFPA Sensor Resolution: 336*256/640*512
Focal Length: 50mm F1.0 Detection: 1km~18km
High Light:

long distance surveillance camera

,

long range thermal image

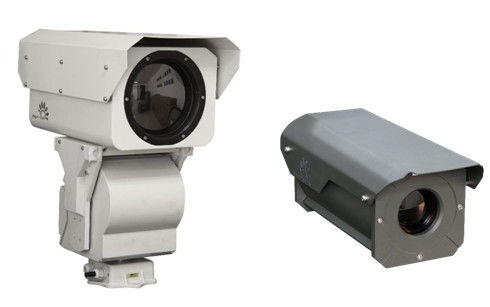

TC6105 uncooled Night Vision Thermal Imaging Camera for Border surveillance



TC61 series thermal camera integrate high-sensitive infrared sensor, the most advanced digital and optical system that it support 24 hours monitoring.





Feature

  •  NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather..
  •  Special AS optical zooming lens and high-precision optomechanical design make a good image quality..
  •  5th generation small size sensor. On basis of same imaging quality, the 5th generation thermal camera is much smaller.
  •  Non-uniform image correction technology, stable operational temperature without TEC, good image uniformity and dynamic range.
  •  SDE digital image processing, no image noise, 10 pseudo color image and B/W, B/W inverse.
  •  One integral aluminum alloy housing, weatherproof IP66, waterproof, anti-dust.



Application

City safety, oilfield safety, railway security, night gathering evidence.



Technical specification

Model TC6102- S TC6105- S
Detection Vehicle: 1700m Vehicle: 4200m
  Human: 720m Human: 1640m
Identification Vehicle: 420m Vehicle: 1200m
  Human: 180m Human: 470m
Sensor 5th generation UFPA sensor
Resolution 640×512pixel, 9HZ
Spectral range 7.5~14μm
NETD 50mK
Focal length 20mmF1.0 50mmF1.0
Field of view(horizontal) 15.5°X 11.6° 6.5°X 4.8°
Image processing 1. Stable operation temperature without TEC, starting time less than 4 seconds
2,SDE digital image processing
3,10 pseudo color and B/W, B/W conversion
4,AGC
5,2X digital amplification
PTZ(Option) 1. Duty: 10kg
2. Rotation: pan: 0~355°, tilt: -60~+10°
3. Rotation speed: Pan: 7°/S, tilt: 3.4°/S
4. 32 presets
(optional variable speed PTZ)
Interface 1. RS-485(PELCO D protocol, Baud rate 2400bps),RS-232(optional)
2. Remote OSD setting
3. PAL/NTSC video output
4. AC24V/DC12V
5. Waterproof aviation connector
Environment parameters 1. One integral aluminum alloy housing
2. Operational temperature: -35°~55°(-45° optional )
3. Power consumption: common 8W, peak 36W(PTZ excluded)

* The detection distance is related to the object and environment etc. Please contact with us for further information
