Product Details:
|
| NETD: | 50mK | Pan/tilt Unit: | 360° Continuous |
|---|---|---|---|
| Sensor: | Uncooled UFPA Sensor | Resolution: | 640*512 |
| Focal Length: | 50mm F1.0 | Interface: | RS485 |
| High Light: | long distance surveillance camera,long range thermal image |
||

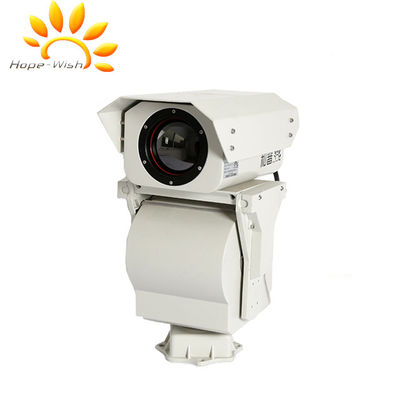

TC6105 uncooled Infrared Long Range Thermal Camera for Border surveillance
TC61 series thermal camera integrate high-sensitive infrared sensor, the most advanced digital and optical system that it support 24 hours monitoring.
TC61 series middle distance thermal camera is designed based on the latest 5th generation uncooled infrared technology and infrared optical technology. With 17um 640x512 resolution uncooled FPA sensor, advanced digital circuit and image processing technology, the camera could supply a much good image. And the infrared lens using AS optical technology have a detection distance 300m~3km while its size and weight is decreased a lot. Aluminum alloy housing sealed with nitrogen and weatherproof IP66 make sure the camera works steadily outdoor.
Feature:
Technical specification
| Model | TC6102- S | TC6105- S |
| Detection | Vehicle: 1700m | Vehicle: 4200m |
| Human: 720m | Human: 1640m | |
| Identification | Vehicle: 420m | Vehicle: 1200m |
| Human: 180m | Human: 470m | |
| Sensor | 5th generation UFPA sensor | |
| Resolution | 640×512pixel, 9HZ | |
| Spectral range | 7.5～14μm | |
| NETD | 50mK | |
| Focal length | 20mmF1.0 | 50mmF1.0 |
| Field of view(horizontal) | 15.5°X 11.6° | 6.5°X 4.8° |
| Image processing | 1. Stable operation temperature without TEC, starting time less than 4 seconds | |
| 2,SDE digital image processing | ||
| 3,10 pseudo color and B/W, B/W conversion | ||
| 4,AGC | ||
| 5,2X digital amplification | ||
| PTZ(Option) | 1. Duty: 10kg | |
| 2. Rotation: pan: 0～355°, tilt: -60～+10° | ||
| 3. Rotation speed: Pan: 7°/S, tilt: 3.4°/S | ||
| 4. 32 presets | ||
| (optional variable speed PTZ) | ||
| Interface | 1. RS-485(PELCO D protocol, Baud rate 2400bps),RS-232(optional) | |
| 2. Remote OSD setting | ||
| 3. PAL/NTSC video output | ||
| 4. AC24V/DC12V | ||
| 5. Waterproof aviation connector | ||
| Environment parameters | 1. One integral aluminum alloy housing | |
| 2. Operational temperature: -35°～55°(-45° optional ) | ||
| 3. Power consumption: common 8W, peak 36W(PTZ excluded) | ||
* The detection distance is related to the object and environment etc. Please contact with us for further information
Application
City safety, oilfield safety, railway security, night gathering evidence.
