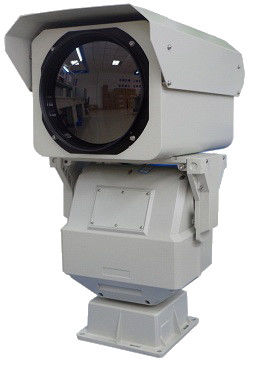

PTZ Long Range Thermal Camera , Outdoor HD CCTV Camera With Zoom Lens FCC

PTZ Long Range Thermal Camera , Outdoor HD CCTV Camera With Zoom Lens FCC
PTZ Long Range Thermal Camera , Outdoor HD CCTV Camera With Zoom Lens FCC
PTZ Long Range Thermal Camera , Outdoor HD CCTV Camera With Zoom Lens FCC PTZ Long Range Thermal Camera , Outdoor HD CCTV Camera With Zoom Lens FCC PTZ Long Range Thermal Camera , Outdoor HD CCTV Camera With Zoom Lens FCC PTZ Long Range Thermal Camera , Outdoor HD CCTV Camera With Zoom Lens FCC PTZ Long Range Thermal Camera , Outdoor HD CCTV Camera With Zoom Lens FCC

Large Image :  PTZ Long Range Thermal Camera , Outdoor HD CCTV Camera With Zoom Lens FCC

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE,FCC
Model Number: TC4328
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: wooden case
Payment Terms: L/C, T/T, Western Union

PTZ Long Range Thermal Camera , Outdoor HD CCTV Camera With Zoom Lens FCC

Description
Material: Aluminum Alloy Housing,waterproof Pseudo Color: 10
Sensor: Uncooled UFPA Sensor Resolution: 336*256/640*512
Focal Length: 95/285mm Detection: 1-18km
Highlight:

long range security camera

,

long range thermal image

PTZ Long Range Thermal Camera for Marine and Coastal Surveillance



Feature

  1.  NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.
  2.  Unique AS+DOE optical design and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.
  3.  Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range. SDE digital image processing, no image noise, 10 pseudo color image and B/W switch.
  4.  Digital control PT, 360° continuously rotation observation, no dead corner, stable operation, small dithering.
  5.  One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.

Application

Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.





Technical specification

Model TC41021- S TC4328- S
Detection Vehicle: 17400m Vehicle: 18000m
  Human: 6800m Human: 8000m
Recognition Vehicle: 4800m Vehicle: 6000m
  Human: 1800m Human: 2600m
Sensor

1, Detector:5th generation UFPA Vox Detector ;

2, Resolution:336×256,(640X512 optional)

3, NETD:50mK(@25℃ F1.0)

4, Spectral range:7.5~14μm

NETD 50mK(@25℃ F1.0)
Focal length

1, Length: 21~210mm

2, FOV:16°×12°~1.6°×1.2°

3, Motorized zoom,focus(auto focus optional )

4, AS+DOE advanced optical design, high infrared transmission;

5, Applied 3CAM high precision design;

1, Length: 95/285mm

2, FOV:3.4°×2.4°/1.1°×0.8°

3, Motorized zoom, auto focus ;

4, AS+DOE advanced optical design, high infrared transmission;

5, Applied 3CAM high precision design; Dual focal fast switch ;

IFOV 0.08~0.85mrad 0.06~0.18mrad
Image processing 1. stable operational temperature, starting time less than 4 seconds
2. SDE digital image processing
3. 10 pseudo color and B/W, B/W inverse
4. AGC
5. 2X digital amplification
Housing

1, Material:aluminum alloy housing,waterproof;

2, Structure:Integral single window design ;

3, Surface:PTA coating,anti sea water corrosion;

4, Sealing rate:IP66

5, Built-in temperature controller,thermal balance design;

6, Interface:aviation waterproof connector ;

PTZ(optional)

1, Load:50kg military level digital PT ;

2, Angle:pan 0~360°,tilt -45°~+45°

3, Speed:0.01~30°/S high precision variable speed control and locking ;

4, Preset:80 presets,support lens zoom and focus memory,variable speed scanning 0~30°/S ,support apple peel scanning function;

5, Protocol:Pelco-P,Pelco-D

6, Baud rate:2400,4800,9600,19200 optional ;

Consumption ,weight

1, Consumption(PT included):min.40W,max.120W

2, weight(PT included):≤40kg

Interface 1. RS-485(PELCO D protocol, baud rate 2400bps), RS-232(option)
2. Remote OSD setting
3. PAL/NTSC video output
4. AC24V( DC12V option)
5. Waterproof connector
Environment indicator

1, Working temperature:-25℃~+55℃(-40℃ optional)

2, Storage temperature:-35℃~+75℃

3, Humidity:<90%

4, Anti-shock:0.2g(GB/T15211—20135.4 harshest level 2 standard)

5, Anti-resistance:15g(GB/T15211—20135.3 harshest level 3 standard)

6, Anti-lightening:power 4000V,signal 2000V

7, Anti salty:PH6.5~7.2,continuous sprarying 48 hours ;

8, Protection rate:IP66

* The detection distance is related to the object and environmentetc. Please contact with us for further information.
