Product Details:
|
| Ip Rating: | IP66 | Laser: | 808nm NIR |
|---|---|---|---|
| Tilt Range: | 90 Degrees | Video Compression: | H.264 |
| Operating Temperature: | -20°C To 60°C | Consumption: | 5W, 808nm,NIR |
| Optical Zoom: | 30X | Laser Angle: | 2°～50° |
| High Light: | IP67 Infrared Surveillance Cameras,Dual-Sensor Thermal Infrared Surveillance Cameras,H.264 Infrared Surveillance Cameras |
||

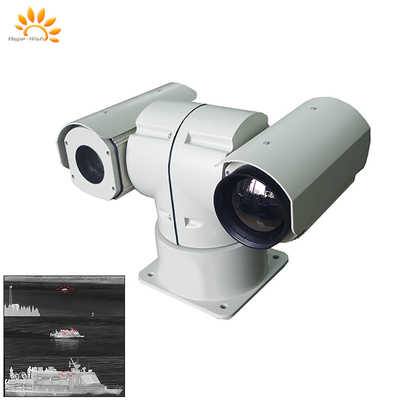

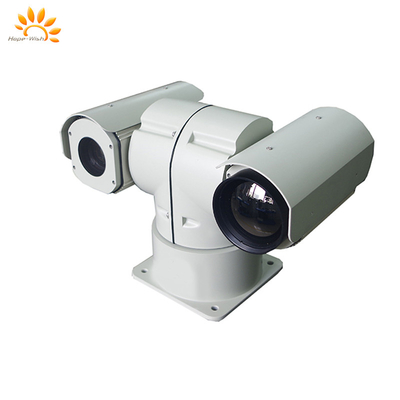

BTVC Series T Shape Dual-Sensor Thermal Camera is high-end custom intelligent surveillance camera. A multi-function device be combined with thermal imaging camera, visible CCD, precise actuating and gearing unit, digital decoder, high-performance image processing unit and control unit.
BTVC series camera features compact design and accurate positioning. With such functions as presetting and patrolling, the camera leaves no blind spot undetected.
Overall, this PTZ Infrared Camera is a reliable and high-performance surveillance camera that delivers exceptional results. With its advanced features, including GHT Laser Homogenizing Technology, Baud Rate, Min Illumination, and Video Compression, it provides accurate and reliable monitoring. So, if you're looking for a reliable and high-performance surveillance camera, this Dome Infrared Camera is the perfect choice for you.
| Model | HP-BTVC6110-2132 |
| Detection | Vehicle: 8600m |
| Human: 3400m | |
| Identification | Vehicle: 2400m |
| Human: 900m | |
| Thermal sensor | 336*256/640*512, UFPA, 7-14um spectral response, 50mk NETD |
| Thermal lens | 100mm |
| FOV | 13°°～4.3°° |
| Visible | 1/2.8'' CMOS, HD 2.1 MP, 1920X1080, Auto ICR switch, color to B/W mode |
| Lens | 8~320mm , 40X zoom |
| Pan | 0° to 360° continuous |
| Tilt | -90°~+90° |
| Pan speed | 0°~100°/s |
| Tilt speed | 0°~60°/s |
| Preset | 128 |
| Scan | 3(user can set the starting and end point; adjustable scanning speed; ) |
| Path | 6(16 points for each path, adjustable duration on each point) |
| Pattern | 3(approx. 2 minutes for each pattern) |
| Menu | English |
| Auto homing | Homing time(1-99mins), homing action(preset/scanning/path/pattern) |
| Protocol | Pelco-D/P and other mainstream protocols |
| Baud rate | 2400/4800/9600/19200bps |
| Heating/defrosting/Wiper | Available |
| Ingress protection | IP66 |
| Working temp. | -35~55℃ |
| Power supply | AC24V/2.5A |
| Weight | 7kg |
This PTZ Infrared Camera is a type of Infrared Surveillance Cameras. It uses GHT Laser Homogenizing Technology and has a Laser Angle of 2°～50°. It can be used as an Infrared Thermal Imaging Camera and a Dome Infrared Camera. It has a Tilt Range of 90 Degrees and is compatible with ONVIF and GB/T28181. The camera consumes 5W and has a minimum illumination of 0.05lux /0.005lux. It operates in temperatures ranging from -20°C to 60°C and supports baud rates of 2400/4800/9600/19200bps.
City safety, oilfield safety, railway security, night gathering evidence.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Q: What is the brand name of this PTZ Infrared Camera?
A: The brand name of this camera is Hope-Wish.
Q: What is the model number of this PTZ Infrared Camera?
A: The model number of this camera is HP-BTVC.
Q: Where is this PTZ Infrared Camera manufactured?
A: This camera is manufactured in China.
Q: Does this PTZ Infrared Camera have infrared capability?
A: Yes, this camera has infrared capability.
Q: Can this PTZ Infrared Camera pan, tilt, and zoom?
A: Yes, this camera has PTZ capabilities.
