Product Details:
|
| Optical Zoom: | 30X | Min Illumination: | 0.05lux /0.005lux |
|---|---|---|---|
| Pan Range: | 360 Degrees | Consumption: | 5W, 808nm,NIR |
| Tilt Range: | 90 Degrees | Operating Temperature: | -20°C To 60°C |
| Video Compression: | H.264 | Compatibility: | Support ONVIF,GB/T28181 |
| High Light: | Infrared PTZ Thermal Camera,30X PTZ Thermal Camera,NIR Cam PTZ Thermal Camera |
||

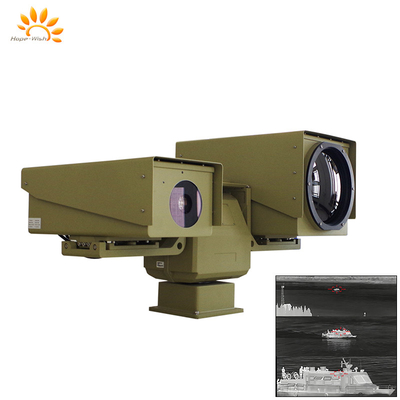

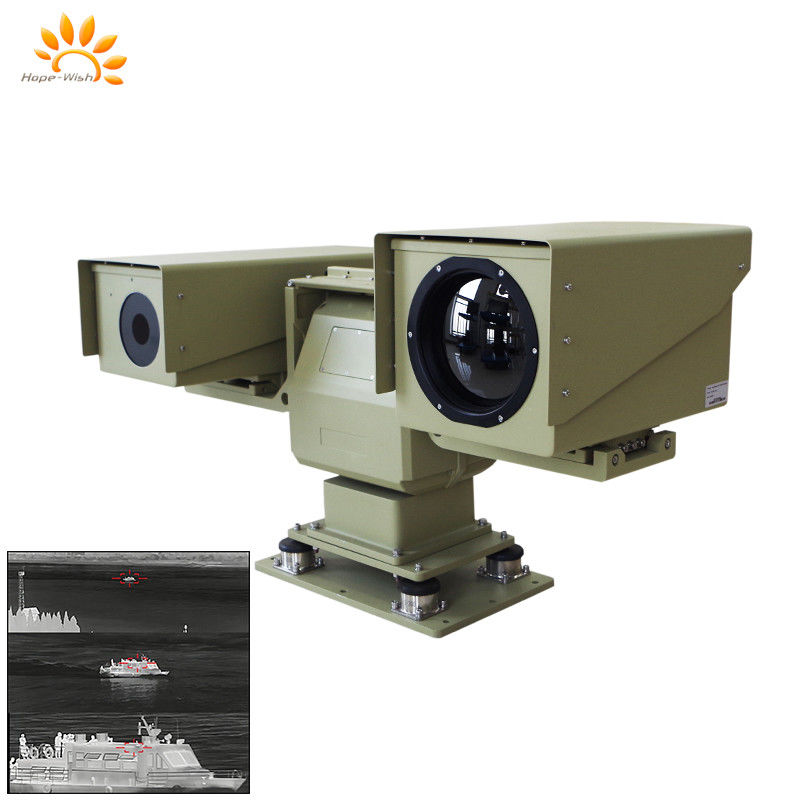

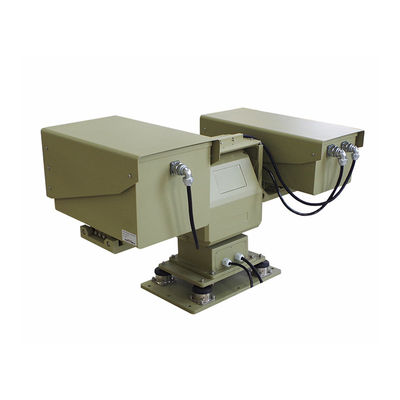

HTVC Series Long Range Multi Sensor Thermal Camera is a series of camera specially designed for special purposes, the Camera adopts 2,000,000 visible camera and
384*288/640*512/1280*1024 uncooled thermal camera with large caliber.
In combination with 360-degree PT, the camera is capable of
conducting 24 hours real-time monitoring within 1km-20km.
This PTZ Infrared Camera is perfect for outdoor surveillance and security. It can be used in various settings such as offices, residential areas, and public places. With its advanced features, it is a reliable and effective tool for monitoring and surveillance.
1. 4.7-141mm full HD visible camera, 2.1 mega pixels CCD,
2. 325mm thermal camera, 384*288/640*512/1280*1024 resolution, 1-21km detection range at day/night.
3.45mk NETD produces crisp thermal image under all weather conditions.
4. Fog penetration (optional), optical filtering and image
Processing
5.50kg load duty and 360 degree rotation.
6.IP66 ingress protection ensures camera´s proper functioning under tough weather conditions.
| Model | HP-HTVC121030-1930-LFZ |
| Detection | Vehicle: 21km; Human 9km |
| Identification | Vehicle: 7km; Human: 3.3km |
| Thermal sensor |
VOx uncooled detector,1280*1024 resolution for option 7.5um-14um spectral response, 45mk NETD |
| Thermal lens | 25mm~325mm |
| 13X continuous zoom, auto focus | |
| 8X digital zoom | |
| Image process |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display 5. NUC correction: automatic / manual correction, background correction |
| Enhancement |
1.Protection from strong light, Sunburn protection 2.Temperature correction: a thermalization design, the image sharpness is not affected by temperature 3. Scene mode: support multi-configuration scene, adapt to different environment application |
| Intelligent Analysic |
1.Intrusion detection; 2.Fire Alarm/Hot Alarm 3. Ranging Scale; 4.Support Auto Track (together with software) |
| Visible Camera sensor | 1/1.8'' CMOS |
| 0.0002lux super high sensitive color to B/W CCD | |
| 2.1 MP resolution | |
| Automatic ICR switch | |
| H.264/MPEG4/MIPEG | |
| 32Kbps~16Mbps,60Hz30 FPS | |
| Visible Camera lens |
4.3mm～141mm
|
| 30X zoom | |
| Auto focus | |
| 2MP full HD resolution | |
| Housing | Material:High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated |
| Structure:Integrated multi-window design | |
| Surface coating:PTA three-resistance coating, Seawater corrosion resistance | |
| Built-in thermostat, design of thermal equilibrium | |
| Interface:Aviation waterproof plug | |
| PTZ | Load:50kg |
| Pan: 0~360°, Tilt: +45°～-45° | |
| Speed:Pan: 0.01～30°/S, Tilt: 0.01～15°/S | |
| Preset: 255, with Petrol/scan function, Azimuth real-time display, Zero correction function | |
| Interface | RJ45 Interface |
| Video format | H.264, Dual video output |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP ect. Other protocol |
| Support ONVIF2.0 | |
| Pelco-P,Pelco-D,Baudrate 2400,4800,9600,19200 optional | |
| Power supply | AC24V/DC24V±10%,50Hz,150W,Standard AC220V->AC24V power supply |
|
Environment
|
Operating temperature:-35℃～+60℃(-40℃ optional)；Storage temperature:-40℃～+65℃ |
| Humidity:<90% | |
| Anti-lighting:built-in auto Fuse-protected device, Power 4000V,Signal 2000V | |
| Ingress protection:IP66 |
Border/Costal defense, harbor, oil field, river lane, airport, safe city
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
The PTZ Infrared Camera is a high-quality camera designed for surveillance purposes. It offers various technical support and services to ensure that you can use it effectively and efficiently. Some of the technical support and services provided include:
- User manuals and documentation to guide you on how to set up and use the camera.
- Technical support to assist you in case you encounter any issues with the camera.
- Firmware updates to enhance the camera's performance and fix any bugs.
- Product training to help you understand how to use the camera's features and functionalities.
- Repair and maintenance services to ensure that the camera stays in top condition and functions optimally.
With these technical support and services, you can rest assured that the PTZ Infrared Camera will meet your surveillance needs effectively.
Q: What is the brand name of this PTZ Infrared Camera?
A: The brand name of this PTZ Infrared Camera is Hope-Wish.
Q: What is the model number of this PTZ Infrared Camera?
A: The model number of this PTZ Infrared Camera is HP-TC.
Q: Where is this PTZ Infrared Camera made?
A: This PTZ Infrared Camera is made in China.
Q: Does this PTZ Infrared Camera have infrared capabilities?
A: Yes, this PTZ Infrared Camera has infrared capabilities.
Q: Is this PTZ Infrared Camera capable of panning, tilting, and zooming?
A: Yes, this PTZ Infrared Camera is capable of panning, tilting, and zooming.
