Precision Infrared PTZ Camera Dual Sensor T Shape Thermal Camera Laser IP67 Rated With 360 Degree Pan Range

Precision Infrared PTZ Camera Dual Sensor T Shape Thermal Camera Laser IP67 Rated With 360 Degree Pan Range
Precision Infrared PTZ Camera Dual Sensor T Shape Thermal Camera Laser IP67 Rated With 360 Degree Pan Range Precision Infrared PTZ Camera Dual Sensor T Shape Thermal Camera Laser IP67 Rated With 360 Degree Pan Range Precision Infrared PTZ Camera Dual Sensor T Shape Thermal Camera Laser IP67 Rated With 360 Degree Pan Range

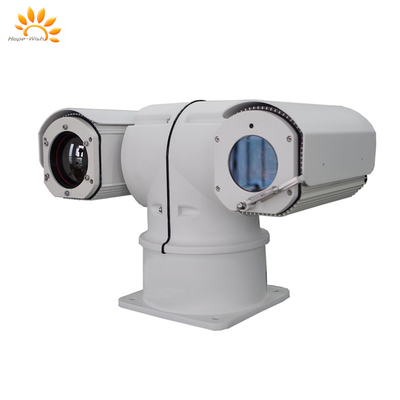

Large Image :  Precision Infrared PTZ Camera Dual Sensor T Shape Thermal Camera Laser IP67 Rated With 360 Degree Pan Range

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-BTVC6307-2132
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 60-180
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 units per month

Precision Infrared PTZ Camera Dual Sensor T Shape Thermal Camera Laser IP67 Rated With 360 Degree Pan Range

Description
Ip Rating: IP66 Operating Temperature: -20°C To 60°C
Baud Rate: 2400/4800/9600/19200bps Type: PTZ Camera
Pan Range: 360 Degrees Feature: Automatic Exposure
Laser: 808nm NIR Consumption: 5W, 808nm,NIR
High Light:

Dual Sensor Precision Infrared PTZ Camera

,

IP67 Precision Infrared PTZ Camera

,

IP67 ptz thermal camera

Product Description:

Key Benefits:

· Long range 24-hours monitoring.

· Delicate and smooth images.

· Convenient for installation and application.

· 360 degree of Omni-directional Pan-Tilt

· Super-strong aluminum alloy with IP66

· Higher sensitivity

· Effective in all environments

· Small size and low weight

With its advanced Infrared Thermal Imaging Camera technology, this camera is perfect for capturing images in low light conditions. Whether you want to monitor your property at night or in dimly lit areas, this camera will provide you with crystal-clear images that are easy to see and understand.

The Dome Infrared Camera is easy to install and comes with a range of advanced features that make it ideal for use in a variety of different environments. Whether you need to monitor your home, office, or any other property, this camera is sure to meet your needs.



Features:

· VOx uncooled detector, 384*288 (640*512);

· NETD is less than 50mk (@25℃F1.0);

· SDE digital image processing, AGC, 2X digital amplification;

· 10 pseudo color and B/W, B/W inverse;

· Intelligent functions: cross-border/ intrusion detection and target tracking;

· 255 level alarm threshold can be setup

· Advanced algorithm support shot-point/ fire detection and alert;

· One integral aluminum alloy housing, water proof, IP66 weather proof, anti-dust.



Technical Parameters:

Model HP-BTVC6307-2132
Detection Vehicle: 6,500m / Human: 2,500m
Identification Vehicle: 1,800m / Human: 700m
Thermal Camera
Sensor 5th generation FPA VOx Detector
Resolution 384 × 288 pixel(optional 640 × 512 pixel)
Spectral range 7.5~14μm
NETD 50mK (@25℃ F1.0)
Focal length 25 - 75mm F1.0
Field of view(horizontal) 14.8° X 11° - 4.9° X 3.7°(optiona 24° X 18° - 8° X 6°)
Visible Camera
Imaging Sensor 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch
Resolution 2 million pixels, 1920 x 1080
Illumination 0.001Lux high sensitive color, 0.0001Lux black and white
Video Bit Rate 32Kbps-16Mbps, 60Hz 30 frames/second, ABF auto adjustment
Focal Length 8-320mm, 40X zoom, 2 Megapixel electric focus
PTZ
Duty 10 kg
Rotation Pan: 0 - 360° continuously,Tilt: +90°~- 90°
Rotation speed Rotation speed:Pan: 0.01~100°/S,Tilt: 0.01~60°/S, support lens focusing speed adaptive
Accuracy ±0.1°
Preset 255 presets, support lens zooming and focusing preset
Mode Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising
Network
Network interface RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485)
Network Protocol TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol.
Environment Parameter
Operating temperature -25℃~+60℃(-40℃ Optional)
Storage temperature -45℃~70℃
Protection Level IP66
General
Total Consumption 50W
Power supply AC/DC24V, anti-reverse connection protection
Weight ≤8.5 kg (include PTZ)


Applications:

· Seaport and airport monitoring;

· Water system monitoring;

· Storage monitoring;

· Military base security monitoring;

· Oilfield & oil depot security;

· Ecological and environmental monitoring;

· Border and coastal defense;

· Highways and railways monitoring.

Company Profile:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

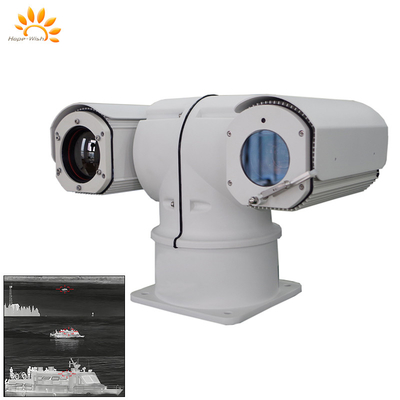

Precision Infrared PTZ Camera Dual Sensor T Shape Thermal Camera Laser IP67 Rated With 360 Degree Pan Range 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.

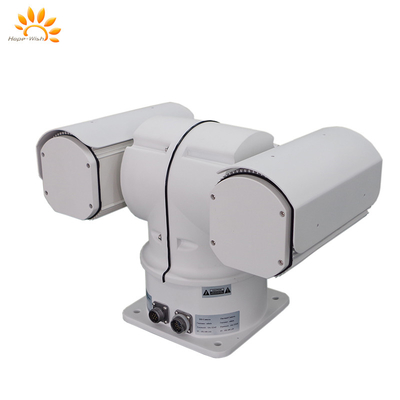

Precision Infrared PTZ Camera Dual Sensor T Shape Thermal Camera Laser IP67 Rated With 360 Degree Pan Range 1


Support and Services:

The PTZ Infrared Camera is a high-tech surveillance camera that provides excellent video quality and night vision capabilities. Our technical support team is available 24/7 to assist with any issues or questions you may have regarding the operation of the camera. We also offer installation and maintenance services to ensure that your camera is functioning properly at all times.

Our support team can assist with troubleshooting, firmware updates, and any other technical needs you may have. Additionally, we offer training services to help you and your team get the most out of your camera system.

If you require repairs or replacement parts, our team can quickly and efficiently handle those needs as well. We are dedicated to providing top-notch support and services to ensure that your PTZ Infrared Camera provides the highest level of security for your property.



FAQ:

Q: What is the brand name of this PTZ Infrared Camera?

A: The brand name of this PTZ Infrared Camera is Hope-Wish.

Q: What is the model number of this PTZ Infrared Camera?

A: The model number of this PTZ Infrared Camera is HP-BTVC.

Q: Where is this PTZ Infrared Camera manufactured?

A: This PTZ Infrared Camera is manufactured in China.

Q: Does this PTZ Infrared Camera have infrared capabilities?

A: Yes, this PTZ Infrared Camera has infrared capabilities which allow it to capture clear images even in low light conditions.

Q: What is the range of the PTZ function?

A: The PTZ function of this camera has a range of 360 degrees horizontally and 90 degrees vertically.
