Product Details:
|
Voltage: | 24-28V | Antenna Size: | 40cm |
---|---|---|---|
Phase Sweep Range: | ±30° | Inside Module: | Specially Designed Modules For FPV |
Detection Method: | Radar And Camera | Waterproof: | IP68 |
Products Status: | Stock | Coverage Angle Range: | Azimuth: 360 °; Pitch: 60 ° |
Highlight: | Camera Anti Drone System,Radar Anti Drone System,Detection Radar Anti Drone System |
Overview:

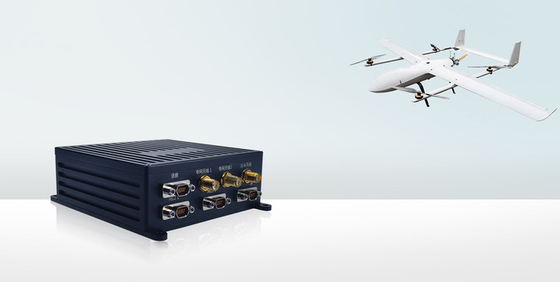

HP-NET640CAM is tailored to communication of UAV, and the range can be 15km ( @LOS condition ) ; it is suitable for the harsh installation environment of UAV. It can transmit one channel of transparent Ethernet data, one channel of serial data, and the data transmission delay is less than 8ms.
One of the standout features of this system is its exceptional battery duration of over 5 hours, ensuring continuous operation and surveillance without the need for frequent recharging. This extended battery life enhances the system's reliability and effectiveness in monitoring airspace for unauthorized drone activity.
The Anti Drone System is equipped with cutting-edge UAV radar technology, enabling it to detect drones swiftly and accurately. Its drone detection radar is capable of identifying and tracking drones in real-time, providing timely alerts to security personnel and enabling swift response to potential threats.
With the Anti Drone System's drone detection radar, users can rest assured that their airspace is secure and protected against unauthorized drone incursions. The system's advanced capabilities in drone detection and monitoring make it an essential tool for safeguarding critical infrastructure, public events, and other sensitive locations from potential security risks posed by drones.
HP-NET640CAM | |||||||||
Systematic parameters | Range |
Tested:100km,6-9mbps @ LOS&20MHz Antenna:8dbi,2pcs |
|||||||
Maximum Data Rate | 50+ Mbps@20MHz&AFS | ||||||||
Network protocol | TCP /IP, with UDP Protocol Support | ||||||||
Application layer support | Transparent transmission, IP application | ||||||||
Encryption | AES256 | ||||||||
Network structure |
Point-to-point, point-to-multipoint, MANET (Mobile MESH), configurable |
||||||||
Network capacity | 64 nodes at one frequency | ||||||||
Adapt to carrier moving speed | Greater than 1 Mach | ||||||||
Receiver sensitivity | -94dBm (QPSK-3/4) | ||||||||
modulation density |
QPSK/16QAM/64QAM/256QAM, adaptive | ||||||||
data transmission delay | 8 ms | ||||||||
Multi Access Control Schem | dTDMA (Dynamic TDMA) | ||||||||
Transmission Robustness - Error Correction Algorithms | FEC | ||||||||
Link margin Air to Ground Single Ant |
|
||||||||
Link margin Air to Air Single Ant |
|
||||||||
Link margin Air to Air Two Ant |
|
||||||||
Ad Hoc Network Parameters | route update time | In MESH mode: less than 1 second | |||||||
no center | support | ||||||||
Dynamic topology | support | ||||||||
Network Monitoring | The ground station can monitor the network status of the whole network | ||||||||
Network Configuration | Network configuration can be conducted at the ground station | ||||||||
multi- hop transmission | No less than 8 hops for video | ||||||||
self-healing | support | ||||||||
AFS-Adaptive Frequency Selection
(not appliable together with FHSS) |
scan spectrum | Continuously scan the spectrum while working | |||||||
Number of preset operating frequency | 5 | ||||||||
Time delay of shift to clear frequency | ≤ 0.01ms | ||||||||
frequency hopping bandwidth | = bandwidth of power amplifier | ||||||||
RF parameters | Wave Form | COFDM+MIMO, 2T2R | |||||||
operating frequency band | 4650~4750MHz , other frequency in band of 4.44~5.GHz can be customizable | ||||||||
transmit RFpower | 37dBm × 2, adjustable in step of 1dBm | ||||||||
channel bandwidth | 1.25 /2.5 / 5 / 10 / 20MHz, configurable | ||||||||
data transmission parameters | data rate | 50Mbps@20MHz&AFS | |||||||
serial communication | bidirectional asynchronous serial, RS232/422 | ||||||||
support | S.BUS | ||||||||
Serial baud rate | 9600bps~230.4Kbps, configurable | ||||||||
Interface parameter | Connector | Air plug | |||||||
Antenna interface | MCX-K × 2 | ||||||||
data interface | Network port × 2 , RS232 × 3 | ||||||||

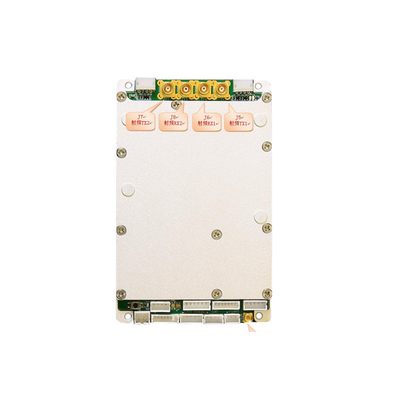

Mechanical and Power | weight | 260g,not enclosed | |||||||
Dimensions |
Signal Processor=94mm×60mm×13.4mm Power Amplifier= 2×68mm×50mm×15mm (excluding connectors and splints) |
||||||||
supply voltage |
1. 9~28VDC, for Signal Processor, 10W, peak 2. 28~48VDC, for Amplifier |
||||||||
power consumption | Standby 12W, peak<65W | ||||||||
Environmental parameters | Operating temperature | -40℃~+65℃ | |||||||
altitude | Not less than 15,000 ft=4,572m AMSL | ||||||||
stored temperature | -40℃~+85℃ | ||||||||
humidity | <95%, non-condensing | ||||||||
MIL Standard Compliance | MIL-STD-810G | By system integrator | |||||||
MIL-STD-461G | By system integrator | ||||||||
Compatibility | Compatibility |
Fully Compatible with Datalink: Types 2A and Types 2B (To operate in same Network) |
The Hope-Wish Anti Drone System, model HP-, is a cutting-edge product designed and manufactured in China. With its compact cuboid shape and package size of 20.00cm * 20.00cm * 10.00cm, this system is ideal for a variety of applications across different scenarios.
One of the key features of the Hope-Wish Anti Drone System is its advanced UAV radar technology. Equipped with state-of-the-art drone detection radar, this system is capable of accurately detecting and tracking UAVs within its operational range. The system's phase sweep range of ±30° ensures comprehensive coverage and detection capabilities.
The product application occasions for the Hope-Wish Anti Drone System are diverse and include:
With a current rating of 3.2A@28V and voltage range of 24-28V, the Hope-Wish Anti Drone System offers reliable performance and efficient operation. Whether it's monitoring airspace for security purposes, protecting critical infrastructure, or ensuring privacy, this system is a versatile solution for drone detection and mitigation.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Our Anti Drone System product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is available to assist you with any technical issues, troubleshooting, or maintenance needs you may have.
Our support services include regular software updates, training sessions, and on-site maintenance visits to keep your system up-to-date and running smoothly. We are committed to providing prompt and efficient assistance to address any concerns and ensure that your Anti Drone System operates at its best.
