Product Details:
|
Field Of View: | 7.5° X 6.0° | Power Supply: | 2 X CR123A Lithium Batteries |
---|---|---|---|
Display: | 640 X 480 LCD | Spectral Range: | 7.5 - 13.5 μm |
Image Processing: | Digital Detail Enhancement, Image Fusion, Picture-in-Picture | Storage Temperature: | -40°C To +70°C |
Operating Temperature: | -20°C To +50°C | Focus: | Manual |
Highlight: | Accurate Results Handheld thermal imaging monocular,Fast Handheld thermal imaging monocular,Uncooled Focal Plane Array Infrared Monocular |
The display of our thermal binoculars is designed to provide you with a seamless viewing experience. With a 640 X 480 LCD screen, you can see your surroundings with exceptional clarity and detail. The high-quality display also ensures that the images are displayed in real-time, allowing you to keep up with any movements or changes in your environment.
Our Thermal Imaging Binoculars are built to withstand extreme temperatures, making them suitable for use in any environment. With a storage temperature range of -40°C to +70°C, you can take them on all your outdoor adventures without worrying about their performance. Whether you're in the scorching heat or freezing cold, our binoculars will continue to function flawlessly.
In conclusion, our Thermal Imaging Binoculars are the perfect combination of quality, functionality, and affordability. As a cheap thermal camera option, it offers all the advanced features and durability of a high-end product, making it a must-have for anyone in need of enhanced vision in the dark. So don't wait any longer, get your hands on our thermal binoculars and take your outdoor experiences to the next level!
1. Waterproof and dustproof IP67: the device can work normally under 1m deep water for 1 hour

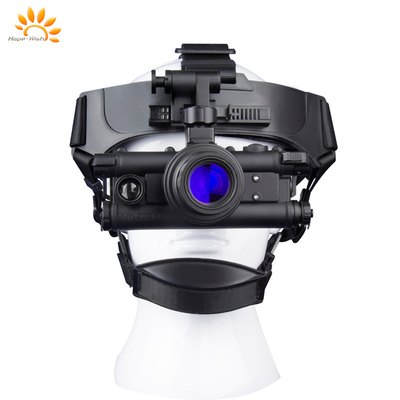

2. Direction-sensing automatic switch: When you don’t need to use the device temporarily, you can press a button on the helmet to raise the device up and then let go, and the device will automatically turn off at this time. When it is necessary to continue to use, press the same button to put down the device to the observation position, and the device will automatically return to the working state at this time.
3. Standby zero consumption: When not in use for a long time, the battery will not lose power when placed in the battery holder
4. The battery cover spring is embedded: it can better contact the battery and the spring is not easy to be damaged, and it is easier to twist the battery cover.
5. Ordinary battery: Two AA batteries can be used normally, equipped with a battery anti-reverse circuit, the battery will not damage the product if it is installed reversely.
6. Added a variety of working modes: strong light protection forced off, direction detection forced off, automatic mode, etc. In Auto mode, when the ambient illuminance is lower than 0.05lux, the infrared auxiliary light source will be turned on automatically, and when the ambient illuminance exceeds 0.1lux, the infrared auxiliary light source will be automatically turned off.
Model | HP-DG2071 |
IIT | Gen2+ |
Magnification | 1x |
Resolution (lp/mm) | 57-64 |
Photocathode type | S25 |
S/N (dB) | 17-21 |
Luminous sensitivity(ìÀ/lm) | 500-600 |
MTTF (hrs) | 10,000 |
FOV (deg) | 40 |
Detection distance (m) | ﹥220 |
Diopter (deg) | +5/-5 |
Lens system | F1.2, 25.8mm |
Range of focus (m) | 0.25--∞ |
Adjustable interpupillary distance(mm) |
58-72mm |
Wavelength for IR illuminator | |
Dimensions (mm) | 152x143x58 |
Weight (g) | 450 |
Video output | Video |
Power supply (v) | 2.0-4.2V |
Battery type (v) | AA (2) |
Battery life (hrs) | 80(w/o IR) 40(w IR) |
Operating temperature(℃) | -40/+60 |
Relative humility | 98% |
Environmental rating | IP67 |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
