640 X 480 Resolution Cooled Thermal Camera With Netd 20mK Long Range

China Jinan Hope-Wish Photoelectronic Technology Co., Ltd. certification
China Jinan Hope-Wish Photoelectronic Technology Co., Ltd. certification
Customer Reviews
1. catch thieves stealing while reducing the number and cost of guards. 2. we have a super-surveillance camera and see the item clearly at night

—— Christian

I can see if the guards are sleeping. It has a tremendous effect in keeping them awake and doing their job rather than leaving their posts to chat

—— Richard

I'm Online Chat Now

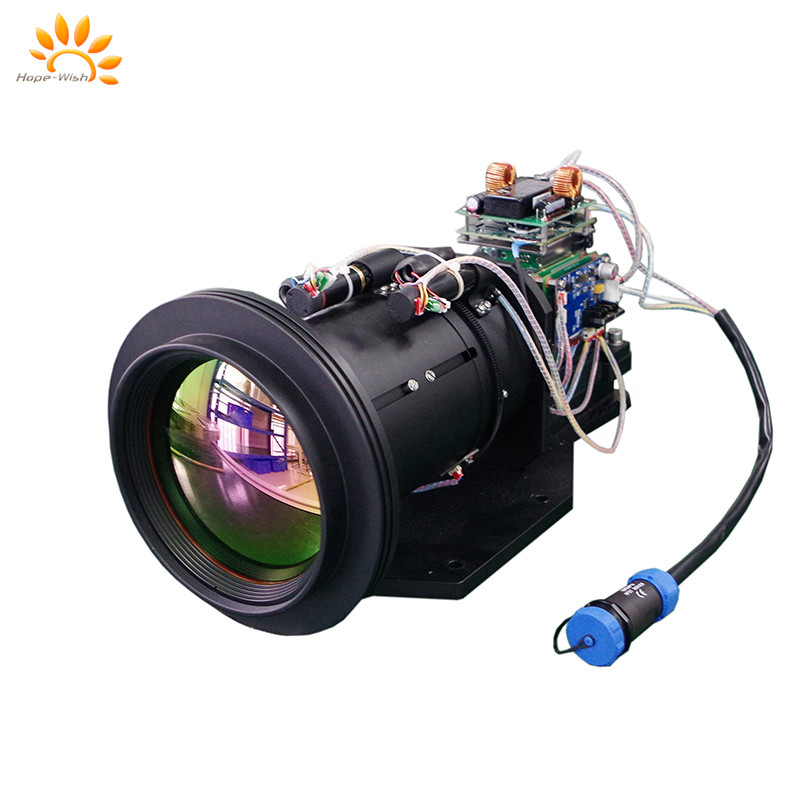

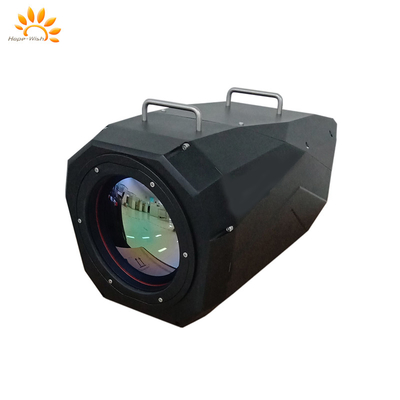

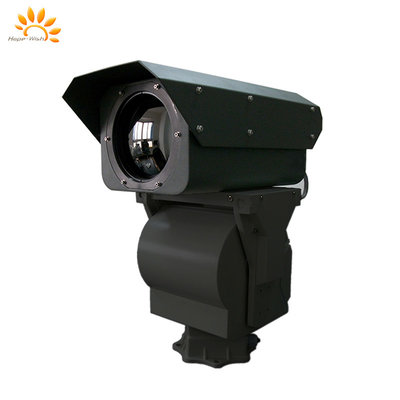

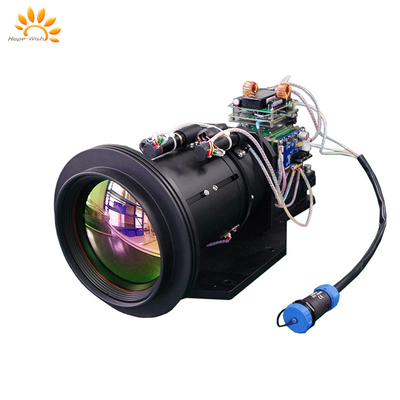

640 X 480 Resolution Cooled Thermal Camera With Netd 20mK Long Range

640 X 480 Resolution Cooled Thermal Camera With Netd 20mK Long Range
640 X 480 Resolution Cooled Thermal Camera With Netd 20mK Long Range 640 X 480 Resolution Cooled Thermal Camera With Netd 20mK Long Range 640 X 480 Resolution Cooled Thermal Camera With Netd 20mK Long Range

Large Image :  640 X 480 Resolution Cooled Thermal Camera With Netd 20mK Long Range

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-CTC64080
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15-30
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 units per month

640 X 480 Resolution Cooled Thermal Camera With Netd 20mK Long Range

Pixel Size: 15μm X15μm Technology: Infrared Thermal
Type: Cooled Thermal Sensitivity: <50 MK
Enclosure: Aluminum Alloy, Sealed; Sensor: FPA MCT Detector
Dimensions: 160 X 120 X 120 Mm Resolution: 640 X 480
High Light:

Aluminum Alloy Cooled Ir Camera


640X480 Resolution Cooled Thermal Camera


20mK Long Range Cooled Thermal Camera

Product Description:

CTC Series Ultra Long Range Cooled Thermal Camera is developed on the basis of the latest cooled IR technology. Featuring high NETD, advanced digital circuit and image processing algorithm, the camera provides users crisp thermal images. While ensuring wide coverage, it also meets ultra long range surveillance demand detection range. The camera enclosure is IP66 rated, which is designed to withstand the harshest weather conditions.
Key Features
  • 20mk NETD ensures premium thermal image.
  • Unique AS continuous optical zoom and 3CAM high precision mechanical engineering.
  • Superb inhomogeneous correction ensures crisp thermal image.
  • SDE image enhancement.
  • Aluminum alloy enclosure, IP 66 rated.
Lens Material: Germanium

The lens of our Cooled Thermal Camera is made of Germanium, a material known for its excellent optical properties. Germanium lenses have a high refractive index and low dispersion, making them ideal for thermal imaging applications. They also have a wide spectral range, allowing the camera to capture images in both the shortwave and longwave infrared regions.

IP Rate: IP66 Waterproof

Our Cooled Thermal Camera has an IP66 waterproof rating, which means it is protected against dust and powerful jets of water. This makes it suitable for use in harsh outdoor environments, such as construction sites, oil and gas facilities, and marine applications. With its rugged and durable design, our camera can withstand extreme weather conditions and perform reliably in any situation.

With its advanced features and exceptional performance, our Cooled Thermal Camera is the top choice for professionals in a wide range of industries. So why wait? Upgrade to our Cooled Camera Modules and experience the power of cooled infrared detectors for yourself. Order now and take your thermal imaging to the next level!



  • Technology: Infrared Thermal
  • Long range 24-hours monitoring.
  • Delicate and smooth images.
  • Convenient for installation and application.
  • 360 degree of Omni-directional Pan-Tilt
  • Super-strong aluminum alloy with IP66
  • Higher sensitivity
  • Effective in all environments
  • Small size and low weight

Technical Parameters:

Model HP-CTC64080


Detect distance

Tank : 20000m

Human :15000m



Identification distance






FPA MCT detector

Cooling Stirling cryocooler



Pixel size 15μm
Spectral range 3.7~4.8μm MWIR
NETD 20mK(@25℃)




40~800mm continuous zoom F4.

Optical axis stability 1.2mrad





Image processing

.3CAM high-precision optomechanical design

.Image enhancement: SDE;

.Color: White hot/Black hot;

.Brightness and contrast: AGC, adjustable;

.Digital zoom: 2X, 4X

.Cross: display

.Correction: Shutter/Background

Lens control Motorized zoom, auto focus




Environmental indicators

.Enclosure: aluminum alloy, sealed;

.Working temp: -40℃~+60℃

.Storage temp:-45℃~+70℃

.Ingress protection: IP66

.Power consumption: 23W(normal), 30W(peak)





.Control: RS485/RS232(PELCO D, baud rate:2400bps/s)

.Menu: OSD

.Video: PAL/NTSC

.Power supply: DC24V

.Connector: waterproof aviation connector


  • Seaport and airport monitoring;
  • Water system monitoring;
  • Storage monitoring;
  • Military base security monitoring;
  • Oilfield & oil depot security;
  • Fire source prevention & monitoring;
  • Ecological and environmental monitoring;
  • Border and coastal defense;
  • Urban security and anti-UAV applications;
  • Highways and railways monitoring.


Features of our Cooled Thermal Camera
  • Advanced Infrared Technology: Our Cooled Thermal Camera utilizes advanced infrared technology to provide clear and accurate thermal imaging.
  • High Resolution Thermal Camera Module: With a pixel size of 15μm X15μm, our camera module offers high resolution thermal imaging for enhanced surveillance capabilities.
  • IP66 Waterproof Rating: Our Cooled Thermal Camera is designed to withstand harsh weather conditions, making it suitable for both indoor and outdoor use.
  • Image Enhancement with SDE: Our camera comes equipped with SDE (Smart Dynamic Enhancement) technology, which enhances the quality of thermal images for better visibility and accuracy.
Customization Options

At Hope-Wish, we offer the following customization options for our Cooled Thermal Camera:

  • Customizable Design: We understand that every surveillance project is unique and requires specific features. That's why we offer a customizable design, allowing you to tailor your camera to fit your specific needs.
  • Integration with Infrared Surveillance Cameras: Our Cooled Thermal Camera can be integrated with infrared surveillance cameras for a comprehensive surveillance solution.
  • Modular Design: Our camera is designed with a modular structure, making it easy to upgrade and maintain.

Choose Hope-Wish for your Cooled Thermal Camera needs and experience the highest level of customization and quality. Contact us today to learn more about our customization services and to get a quote for your project.


Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

640 X 480 Resolution Cooled Thermal Camera With Netd 20mK Long Range 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
640 X 480 Resolution Cooled Thermal Camera With Netd 20mK Long Range 1
