Product Details:
|
| Sensitivity: | <50 MK | Spectral Range: | 3.5 - 5.0 μm |
|---|---|---|---|
| Dimensions: | 160 X 120 X 120 Mm | Field Of View: | 9.2° X 6.9° |
| Menu: | OSD | Technology: | Infrared Thermal |
| Image Enhancement: | SDE | Ip Rate: | IP66 Waterproof |
| High Light: | IP66 Waterproof Cooled Thermal Camera,Dual Sensor PTZ Thermal Camera,Long Distance PTZ Thermal Camera |
||
1. 4.7-141mm full HD visible camera, 2.1 mega pixels CCD,
2. 325mm thermal camera, 384*288/640*512/1280*1024 resolution, 1-21km detection range at day/night.
3.45mk NETD produces crisp thermal image under all weather conditions.
4. Fog penetration (optional), optical filtering and image
Processing
5.50kg load duty and 360 degree rotation.
6.IP66 ingress protection ensures camera´s proper functioning under tough weather conditions.
The Cooled Thermal Camera is equipped with a high-quality Germanium lens material, which offers excellent thermal conductivity and optical properties. This allows for superior image quality and accuracy, even in extreme temperatures.
The camera features a high resolution of 640 X 480, providing clear and detailed images. This allows for accurate identification and tracking of targets, making it ideal for surveillance and security applications.
The FPA MCT detector used in this camera is a highly sensitive and reliable sensor, capable of detecting even the slightest temperature differences. This allows for precise thermal imaging and accurate target detection, making it an essential tool for law enforcement and military operations.
The camera's pixel size of 15μm X 15μm ensures high sensitivity and resolution, allowing for detailed and accurate thermal imaging. This makes it an ideal choice for applications such as border surveillance, wildlife monitoring, and search and rescue operations.
The Cooled Thermal Camera utilizes advanced infrared thermal technology, which allows for imaging in low-light or no-light conditions. This makes it an essential tool for night vision and surveillance applications, providing a clear and accurate view of the surrounding environment.

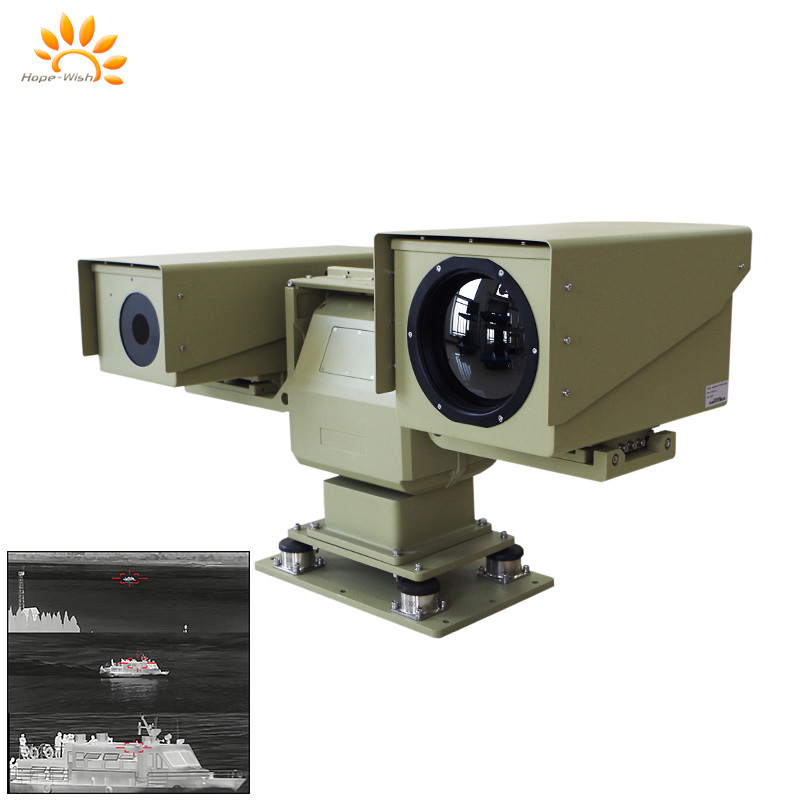

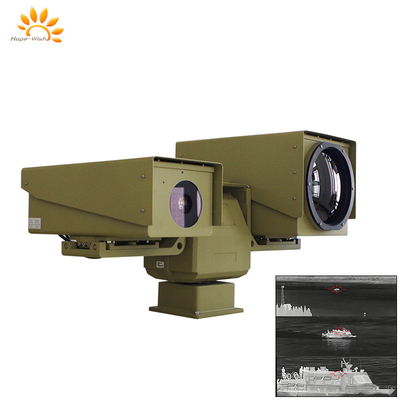

HTVC Series Long Range Multi Sensor Thermal Camera is a series of camera specially designed for special purposes, the Camera adopts 2,000,000 visible camera and
384*288/640*512/1280*1024 uncooled thermal camera with large caliber.
In combination with 360-degree PT, the camera is capable of
conducting 24 hours real-time monitoring within 1km-20km.
| Model | HP-HTVC121030-1930-LFZ |
| Detection | Vehicle: 21km; Human 9km |
| Identification | Vehicle: 7km; Human: 3.3km |
| Thermal sensor |
VOx uncooled detector,1280*1024 resolution for option 7.5um-14um spectral response, 45mk NETD |
| Thermal lens | 25mm~325mm |
| 13X continuous zoom, auto focus | |
| 8X digital zoom | |
| Image process |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display 5. NUC correction: automatic / manual correction, background correction |
| Enhancement |
1.Protection from strong light, Sunburn protection 2.Temperature correction: a thermalization design, the image sharpness is not affected by temperature 3. Scene mode: support multi-configuration scene, adapt to different environment application |
| Intelligent Analysic |
1.Intrusion detection; 2.Fire Alarm/Hot Alarm 3. Ranging Scale; 4.Support Auto Track (together with software) |
| Visible Camera sensor | 1/1.8'' CMOS |
| 0.0002lux super high sensitive color to B/W CCD | |
| 2.1 MP resolution | |
| Automatic ICR switch | |
| H.264/MPEG4/MIPEG | |
| 32Kbps~16Mbps,60Hz30 FPS | |
| Visible Camera lens |
4.3mm～141mm |
| 30X zoom | |
| Auto focus | |
| 2MP full HD resolution | |
| Housing | Material:High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated |
| Structure:Integrated multi-window design | |
| Surface coating:PTA three-resistance coating, Seawater corrosion resistance | |
| Built-in thermostat, design of thermal equilibrium | |
| Interface:Aviation waterproof plug | |
| PTZ | Load:50kg |
| Pan: 0~360°, Tilt: +45°～-45° | |
| Speed:Pan: 0.01～30°/S, Tilt: 0.01～15°/S | |
| Preset: 255, with Petrol/scan function, Azimuth real-time display, Zero correction function | |
| Interface | RJ45 Interface |
| Video format | H.264, Dual video output |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP ect. Other protocol |
| Support ONVIF2.0 | |
| Pelco-P,Pelco-D,Baudrate 2400,4800,9600,19200 optional | |
| Power supply | AC24V/DC24V±10%,50Hz,150W,Standard AC220V->AC24V power supply |
|
Environment
|
Operating temperature:-35℃～+60℃(-40℃ optional)；Storage temperature:-40℃～+65℃ |
| Humidity:<90% | |
| Anti-lighting:built-in auto Fuse-protected device, Power 4000V,Signal 2000V | |
| Ingress protection:IP66 |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
At Hope-Wish, we understand that every customer has unique requirements. That's why we offer customization services for our Cooled Thermal Camera. Our team will work closely with you to tailor the camera to your specific needs and preferences.
Our Cooled Thermal Camera boasts a sensitivity of <50 MK, ensuring clear and precise thermal imaging. With a resolution of 640 X 480, every detail is captured with unparalleled clarity. The OSD menu allows for easy navigation and customization, while the FPA MCT Detector provides reliable and accurate readings.
We take pride in using only the best materials for our products. The enclosure of our Cooled Thermal Camera is made of durable aluminum alloy, providing protection and durability in any environment. The camera is also sealed, making it resistant to dust and water.
With our Cooled Thermal Camera, you can experience the benefits of Infrared Thermal Scope in a compact and reliable device. Our camera is ideal for a wide range of applications, including security, surveillance, and industrial inspections.
Upgrade your thermal imaging capabilities with our Cooled Thermal Camera from Hope-Wish. Contact us today to learn more about our customization services and how we can help meet your specific needs.
Our team ensures that every Cooled Thermal Camera is thoroughly inspected and tested before being shipped to our customers. We use reliable and trusted shipping methods to deliver the product to your doorstep in a timely and efficient manner.
For international orders, we take extra precautions to comply with all necessary customs and shipping regulations.
Thank you for choosing our Cooled Thermal Camera. We are committed to providing you with a top-quality product and a hassle-free shipping experience.
