Product Details:
|
| Lrf: | Optional 5km,8km,15km | Type: | IP Camera |
|---|---|---|---|
| Temperature Range: | -40°C To 1200°C | Gps: | Positioning Accuracy 10 Meters |
| Detection Range: | Up To 5km | Detection: | 1-20km |
| Lens: | Motorized & Manual Focus | Grade: | Military Grade |
| High Light: | manual focus thermal surveillance system,5km thermal surveillance system,Military Grade Infrared Thermal Camera |
||

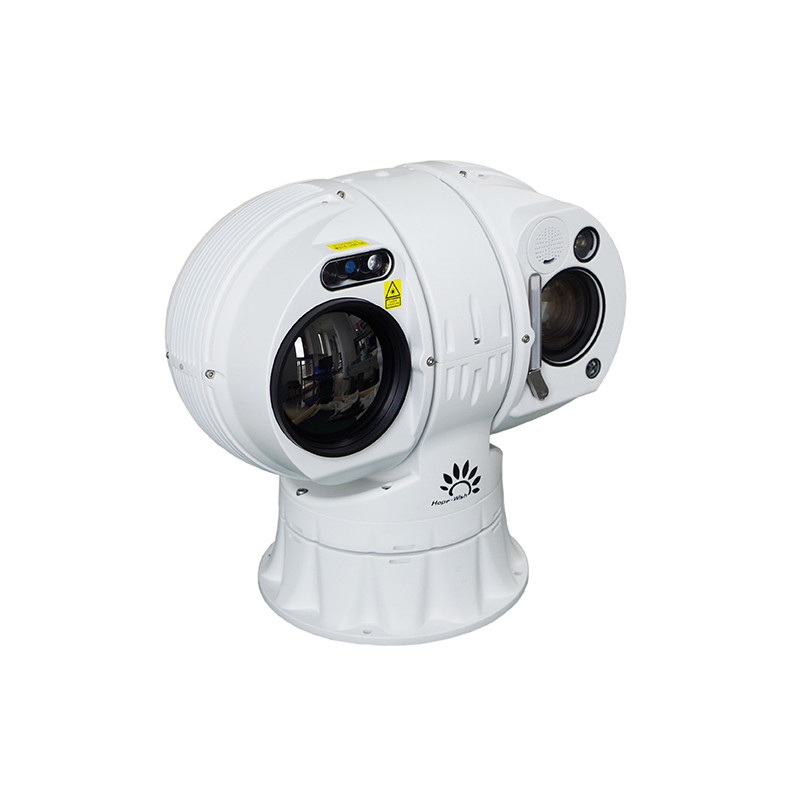

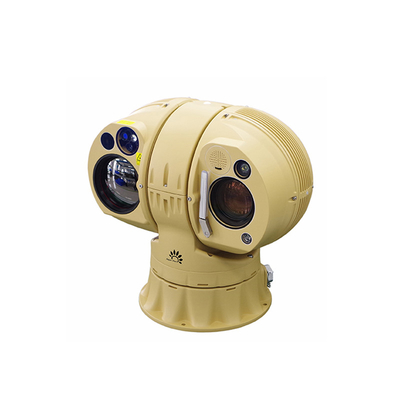

Overall, the Thermal Surveillance System is an essential tool for any outdoor security and surveillance needs. With its waterproof design, long detection range, energy-efficient power consumption, and advanced lens features, it provides high-quality and reliable thermal imaging for long-term monitoring.
| Model | HP-DMS10-4300-100 |
| Detection |
vehicles:8400m human: 3200m fire point (@2x2m): 5000m |
| Recognition |
vehicles:2400m human: 1000m |
| Thermal imaging Camera |
1.Detector: The sixth generation uncooled focal plane array VOx detector 2. Wavelength: 8～14μm 3. NETD:40mK(@25℃ F1.0) 4. Lens: 100mm 5. Image enhancement: SDE digital image enhancement technology, enhance the details of the image, support 255 thermal image enhancement adjustment 6.Pseudo-color polarity: 16 kinds of pseudo-color images, hot black/hot white 7.Image parameters: AGC automatic gain control, brightness, contrast 8.Electronic zoom: 1.0～8.0×continuous zoom (step length 0.1), support global eagle eye diagram 9. Ranging ruler: support for range finding ruler 10.Dead pixel correction: support the function of dead pixel correction 11.Image correction: support manual correction, background correction, automatic correction time interval, adjustable Gamma correction parameters 12.Strong light protection: support anti-sun damage 13.Non-uniformity correction: automatic/hand |
| Resolution | Pixel:384×288 |
| Visible Camera |
1.Sensor type: back-illuminated ultra-low illumination starlight CMOS 2.Minimum illumination: color: 0.0005Lux @ black and white: 0.0001Lux @ 0Lux(IRON) 3.Lens:7mm～330mm, 47 times optical zoom,16 times digital zoom. 4.Image processing: white balance, electronic shutter, frame accumulation, backlight compensation, glare suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic. 5.Day and night light: 0.4-0.75um visible light wide spectral window and 0.8-0.95um near-infrared spectral window day and night independent double light window, improve the signal-to-noise ratio of imaging light and stray light 6.Support electronic fog penetration and optical fog penetration |
|
Laser illuminator |
1.Laser Homogenization: new infrared GHT-III HD flood light source, no scattered particles 2.Laser angle: 3°~65° switchable 3.Laser distance: 300m |
| Video audio |
1.Thermal camera resolution:support 1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 2.Visible camera resolution:2592×1520；2560×1440；1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 3.Video encoding: H.265/H.264/MJPEG,multi-stream support 4.Video code rate:32Kbps～16Mbps 5.Audio encoding:G.711A/ G.711U/G726 6.Image flip: left and right / up and down / diagonal 7.OSD settings: Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings |
| Intelligent functions |
1. Fire detection alarm: threshold 255 levels, target size, number of targets 1-16 can be set, automatically select the most prominent target display, hot spot tracking 2. Intelligent analysis: support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering filtering function; support target temperature filtering filtering function 3. Automatic tracking: support single scene tracking/support multi-scene tracking/support panoramic tracking/support alarm linkage tracking 4. Intelligent information fusion: support 512 AR intelligent information fusion, support fire point, intelligent analysis of the recording logo information fusion, support orientation angle, field of view angle, focal length, multiplier information fusion 5.Image fusion: support 18 kinds of double light fusion mode, support picture-in-picture function 6.Alarm management: support for alarm capture and upload |
| Enhanced Features |
1. Distance measurement: support passive distance measurement; support optional laser distance measurement. 2. Support sound and light alarm: internal integrated tweeter + flashing light, support alarm sound customization. 3. Support alarm linkage fire fighting device. 4. Camera diagnostic functions: support disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card), video masking alarm, anti-sun damage (support threshold, masking time can be set). 5. Whole life management: health index record function, support working time, shutter count, working temperature, limit temperature, etc.; zoom lens and head each motor working cumulative time, etc. 6. Support disconnection renewal. 7. Power failure memory: support can restore the position before power failure, preset point state, cruise state, line sweep state. 8. Remote maintenance: with fault query, self-test, remote restart function; online upgrade, remote upgrade. 9. Key frame setting: support key frame interval 100 levels adjustable. 10. Configuration file: support configuration file import and export function. 11. Web access: support WEB full function configuration, remote online upgrade. |
| PT |
1. Rotation speed: Horizontal: 0.01°/s～100°/s; Pitch: 0.01°/s～80°/s, support focal speed adaption. 2. Rotation angle: horizontal: 360° continuous rotation; pitch: -90°～+90° 3. Structure material: quasi-spherical design of micro-rotary, integrated 5-window multi-channel, fine cast high strength aluminium alloy material. 4. Window glass: infrared/visible high efficiency optical glass, clean film coating. 5. Surface coating: PTA triple anti-corrosion coating, anti-corrosion. 6. Wiper: support intelligent automatic wiper 7. Defrost: visible window defrost 8. Preset position cruise: 3000 preset positions, support 16 cruise routes, each can support 256 preset positions 9. Watch function: preset bit / pattern scan / cruise scan / vertical scan / frame scan / panorama scan / apple skin scan / horizontal fan sweep line scan 10. Support 3D frame selection zoom 11. Orientation information: support angle query/real-time return and positioning; support lens field of view return and positioning 12. Zero point correction: support northward zero point remote correction function |
| Electrical interface |
1. Communication and control: 1 *RJ45 Ethernet port; 2* alarm inputs, 1 *alarm output; 1 *audio input input, 1 *RS485 interface. 2. Protocol: Support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocols; support ONVIF and GB28181 protocols. 3. Development interface: Support HP-SDK secondary development |
| Enhanced Function |
1. Glare protection: support, anti-sun burn function 2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature 3. Scene mode: support multiple configuration scenarios, adapt to no environment application 4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes 5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes 6. Lens servo: support lens preset position, focal length return, focus positioning function 7. Parameter setting: OSD menu remote call operation 8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance |
| Safety control |
1. Support illegal access alarm: the number of illegal access, lock time can be set.
|
| Power supply |
1. Working voltage: DC 9~36V, external AC220V or battery power adapter
|
| Environmental adaptation |
1. Working temperature: -40℃～60℃
|
| Volume weight |
1. Weight: ≤10kg
|
The Thermal Surveillance System is mainly used in military, security, and law enforcement operations. It can also be used in other applications such as border control, coast guard, and wildlife observation. The system is ideal for monitoring large areas and can be used for both day and night operations.
Thermal IP Camera: The system is equipped with a thermal IP camera that provides high-quality images even in low light conditions. It can capture clear images from a long distance, making it suitable for surveillance in large outdoor areas.
Thermal Infrared Camera: The thermal infrared camera module in the system is designed to detect and capture thermal radiation emitted by objects and convert it into images. This allows for accurate detection and tracking of objects in any lighting conditions.
Waterproof and Durable: The system is designed to withstand harsh outdoor environments. It has an IP67 waterproof rating, ensuring that it can operate in heavy rain or other extreme weather conditions. It is also built to military-grade standards, making it highly durable and able to withstand rough handling.
Long-Range Detection: With a detection range of 1-20km, the Thermal Surveillance System can detect and track objects from a long distance. This makes it an ideal tool for monitoring large areas or conducting long-range surveillance operations.
Image Processing: The system is equipped with Digital Detail Enhancement (DDE) technology, which enhances the quality and clarity of thermal images. This allows for better detection and identification of objects, even in low-contrast environments.
A military unit is conducting a surveillance operation in a remote area. Using the Thermal Surveillance System from Hope-Wish, they are able to monitor the area and detect any potential threats from a safe distance. The system's long-range detection and image processing capabilities allow them to accurately identify and track any suspicious activity. The waterproof and durable design of the system ensures it can withstand the rugged terrain and harsh weather conditions. The unit can also use the system for night operations, as the thermal imaging technology allows for clear images even in complete darkness.
Overall, the Thermal Surveillance System from Hope-Wish is a reliable and powerful tool for military and security operations. Its advanced features and durable design make it suitable for various outdoor applications, providing enhanced surveillance and security capabilities. With its long-range detection and image processing technology, it can help keep people and areas safe in any situation.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Brand Name: Hope-Wish
Model Number: HP-TC
Place of Origin: China
Consumption: 6W, 808nm, NIR
Image Process: DDE
Detection Range: Up To 5km
Lrf: Optional 5km,8km,15km
Gps: Positioning Accuracy 10 Meters
At Hope-Wish, we understand the importance of customized solutions for our clients. That's why we offer a wide range of customization services for our Thermal Surveillance System, the HP-TC. Our system is equipped with advanced features such as DDE image processing and a detection range of up to 5km, making it the ideal choice for your thermal imaging needs.
With our customization service, you can tailor the HP-TC to fit your specific requirements. Whether you need a specific brand name, model number, or place of origin, we have you covered. Our system consumes only 6W and uses 808nm NIR technology, making it energy-efficient and cost-effective.
We also offer optional Lrf capabilities, with ranges of 5km, 8km, or 15km, depending on your needs. And with our GPS system, you can ensure accurate positioning with an accuracy of 10 meters.
Don't settle for a one-size-fits-all solution when it comes to thermal imaging. Choose Hope-Wish and our Thermal Surveillance System with our customizable options, and get the best thermal imaging camera price, thermal IP camera, and infrared camera module for your specific needs. Contact us today to learn more about our customization service and how we can help you find the perfect solution for your thermal imaging needs.
Thank you for choosing our Thermal Surveillance System. We are committed to providing you with the highest quality technical support and services to ensure the smooth operation of your system.
Our team of highly skilled and experienced technicians are available 24/7 to assist you with any technical issues or questions you may have. You can reach us through phone, email, or our online support portal.
Our phone support is available during business hours (9am-5pm EST) and can be reached at +1-XXX-XXX-XXXX. Please have your product serial number ready when contacting us for efficient service.
You can also reach us through email at support@thermal.com. Our team will respond to your inquiry within 24 hours.
Our online support portal provides a comprehensive knowledge base and troubleshooting guides to help you resolve common issues quickly. You can also submit a support ticket through the portal for more personalized assistance.
In addition to technical support, we also offer the following services to enhance your experience with our Thermal Surveillance System:
Our team can provide on-site installation and setup services for your system to ensure it is installed correctly and running smoothly.
We offer training sessions to help you and your team become familiar with the features and operation of our Thermal Surveillance System. These sessions can be conducted on-site or remotely.
We provide regular maintenance services to keep your system in top condition and offer upgrades to keep your system up-to-date with the latest technology.
Thank you again for choosing our Thermal Surveillance System. We are dedicated to providing you with the best technical support and services to ensure your system performs at its best. If you have any further questions or concerns, please do not hesitate to contact us.
