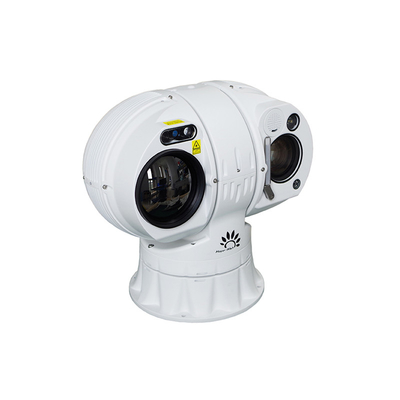

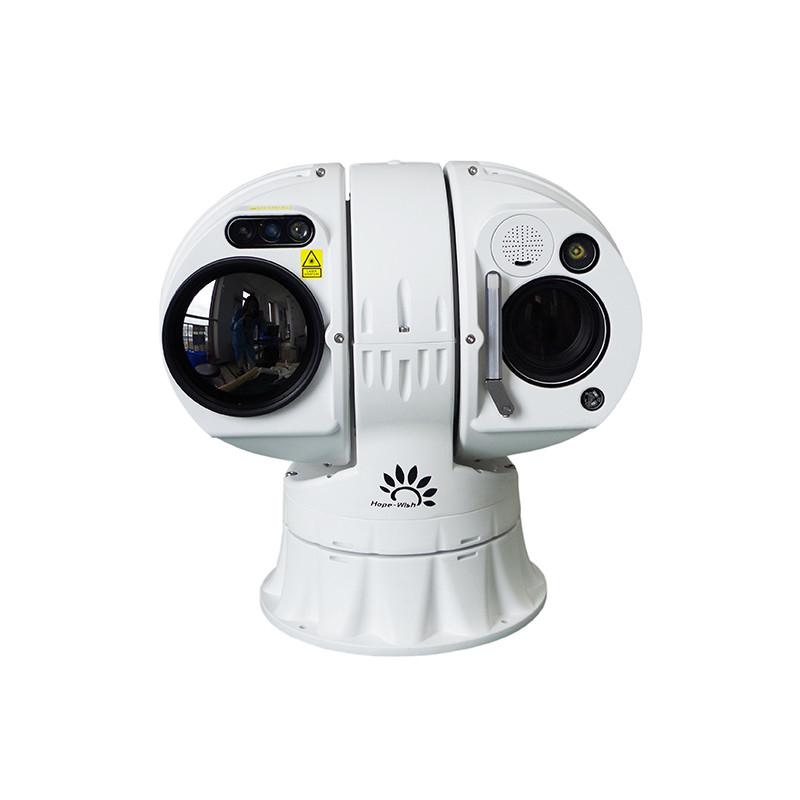

Hd Industrial Grade Long Range Security Camera Thermal Surveillance Camera

Hd Industrial Grade Long Range Security Camera Thermal Surveillance Camera
Hd Industrial Grade Long Range Security Camera Thermal Surveillance Camera
Hd Industrial Grade Long Range Security Camera Thermal Surveillance Camera Hd Industrial Grade Long Range Security Camera Thermal Surveillance Camera Hd Industrial Grade Long Range Security Camera Thermal Surveillance Camera

Large Image :  Hd Industrial Grade Long Range Security Camera Thermal Surveillance Camera

Product Details:
Place of Origin: China
Brand Name: Hope-Wish
Certification: CE, FCC, ROHS, ISO9001
Model Number: HP-DMS10-12300-50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15-30
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 units per month

Hd Industrial Grade Long Range Security Camera Thermal Surveillance Camera

Description
Gps: Positioning Accuracy 10 Meters Type: IP Camera
Waterproof: IP67 Grade: Military Grade
Warranty: One Year Consumption: 6W, 808nm, NIR
Lens: Motorized & Manual Focus Detection Range: Up To 5km
Highlight:

industrial long range security camera

,

hd thermal surveillance camera

,

10m long range security camera

Product Description:

  1. Long range 24-hours monitoring.
  2. Delicate and smooth images.
  3. Convenient for installation and application.
  4. 360 degree of Omni-directional Pan-Tilt
  5. Super-strong aluminum alloy with IP67
  6. Higher sensitivity
  7. Effective in all environments
  8. Lightweight design: weight ≤ 10kg

The system can detect objects up to 5km away, providing clear and detailed images even at long distances. This makes it ideal for surveillance in remote or hard-to-reach areas.

Power

The Thermal Surveillance System has a maximum power consumption of 150W, making it energy-efficient and cost-effective. It can be powered by various sources, including solar panels, making it suitable for off-grid locations.

Overall, the Thermal Surveillance System is a reliable and high-performance product that utilizes the latest infrared thermal camera technology. With its compact design, long detection range, and energy efficiency, it is the perfect solution for all your surveillance needs.



Features:

  • Support image scale, support LRF, support access to multiple sensors.
  • Highly intelligent: support hotspots, smoke and fire alarms, temperature detection; support area intrusion detection; support vehicle, boat and human detection, classification and identification; support target tracking, screening and filtering; support AR intelligent information fusion linkage.
  • Active defence: support for loud speaker + flashing lights to deter or deny criminals.
  • Pitch: -90°to +90°, horizontal 360°continuous rotation, full coverage of 720° three-dimensional


Technical Parameters:

Model HP-DMS10-12300-50
Detection

vehicles:4200m

human: 1640m

fire point (@2x2m): 2000m

Recognition

vehicles:1200m

human: 600m

Thermal imaging Camera

1.Detector: The sixth generation uncooled focal plane array VOx detector

2. Wavelength: 8~14μm

3. NETD:40mK(@25℃ F1.0)

4. Lens:50mm

5. Image enhancement: SDE digital image enhancement technology, enhance the details of the image, support 255 thermal image enhancement adjustment

6.Pseudo-color polarity: 16 kinds of pseudo-color images, hot black/hot white

7.Image parameters: AGC automatic gain control, brightness, contrast

8.Electronic zoom: 1.0~8.0×continuous zoom (step length 0.1), support global eagle eye diagram

9. Ranging ruler: support for range finding ruler

10.Dead pixel correction: support the function of dead pixel correction

11.Image correction: support manual correction, background correction, automatic correction time interval, adjustable Gamma correction parameters

12.Strong light protection: support anti-sun damage

13.Non-uniformity correction: automatic/hand

Resolution Pixel:1280×1024
Visible Camera

1.Sensor type: back-illuminated ultra-low illumination starlight CMOS

2.Minimum illumination: color: 0.0005Lux @ black and white: 0.0001Lux @ 0Lux(IRON)

3.Lens:7mm~330mm, 47 times optical zoom,16 times digital zoom.

4.Image processing: white balance, electronic shutter, frame accumulation, backlight compensation, glare suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic.

5.Day and night light: 0.4-0.75um visible light wide spectral window and 0.8-0.95um near-infrared spectral window day and night independent double light window, improve the signal-to-noise ratio of imaging light and stray light

6.Support electronic fog penetration and optical fog penetration

Laser

illuminator

1.Laser Homogenization: new infrared GHT-III HD flood light source, no scattered particles

2.Laser angle: 3°~65° switchable

3.Laser distance: 300m

Video audio

1.Thermal camera resolution:support 1920×1080;1280×1024;1280×960;1024×768;1280×720;704×576;640×512;640×480;400×300;384×288;352×288;352×240

2.Visible camera resolution:2592×1520;2560×1440;1920×1080;1280×1024;1280×960;1024×768;1280×720;704×576;640×512;640×480;400×300;384×288;352×288;352×240

3.Video encoding: H.265/H.264/MJPEG,multi-stream support

4.Video code rate:32Kbps~16Mbps

5.Audio encoding:G.711A/ G.711U/G726

6.Image flip: left and right / up and down / diagonal

7.OSD settings: Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings

Intelligent functions

1. Fire detection alarm: threshold 255 levels, target size, number of targets 1-16 can be set, automatically select the most prominent target display, hot spot tracking

2. Intelligent analysis: support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering filtering function; support target temperature filtering filtering function

3. Automatic tracking: support single scene tracking/support multi-scene tracking/support panoramic tracking/support alarm linkage tracking

4. Intelligent information fusion: support 512 AR intelligent information fusion, support fire point, intelligent analysis of the recording logo information fusion, support orientation angle, field of view angle, focal length, multiplier information fusion

5.Image fusion: support 18 kinds of double light fusion mode, support picture-in-picture function

6.Alarm management: support for alarm capture and upload

Enhanced Features

1. Distance measurement: support passive distance measurement; support optional laser distance measurement.

2. Support sound and light alarm: internal integrated tweeter + flashing light, support alarm sound customization.

3. Support alarm linkage fire fighting device.

4. Camera diagnostic functions: support disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card), video masking alarm, anti-sun damage (support threshold, masking time can be set).

5. Whole life management: health index record function, support working time, shutter count, working temperature, limit temperature, etc.; zoom lens and head each motor working cumulative time, etc.

6. Support disconnection renewal.

7. Power failure memory: support can restore the position before power failure, preset point state, cruise state, line sweep state.

8. Remote maintenance: with fault query, self-test, remote restart function; online upgrade, remote upgrade.

9. Key frame setting: support key frame interval 100 levels adjustable.

10. Configuration file: support configuration file import and export function.

11. Web access: support WEB full function configuration, remote online upgrade.

PT

1. Rotation speed: Horizontal: 0.01°/s~100°/s; Pitch: 0.01°/s~80°/s, support focal speed adaption.

2. Rotation angle: horizontal: 360° continuous rotation; pitch: -90°~+90°

3. Structure material: quasi-spherical design of micro-rotary, integrated 5-window multi-channel, fine cast high strength aluminium alloy material.

4. Window glass: infrared/visible high efficiency optical glass, clean film coating.

5. Surface coating: PTA triple anti-corrosion coating, anti-corrosion.

6. Wiper: support intelligent automatic wiper

7. Defrost: visible window defrost

8. Preset position cruise: 3000 preset positions, support 16 cruise routes, each can support 256 preset positions

9. Watch function: preset bit / pattern scan / cruise scan / vertical scan / frame scan / panorama scan / apple skin scan / horizontal fan sweep line scan

10. Support 3D frame selection zoom

11. Orientation information: support angle query/real-time return and positioning; support lens field of view return and positioning

12. Zero point correction: support northward zero point remote correction function

Electrical interface

1. Communication and control: 1 *RJ45 Ethernet port; 2* alarm inputs, 1 *alarm output; 1 *audio input input, 1 *RS485 interface.

2. Protocol: Support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocols; support ONVIF and GB28181 protocols.

3. Development interface: Support HP-SDK secondary development

Enhanced Function

1. Glare protection: support, anti-sun burn function

2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature

3. Scene mode: support multiple configuration scenarios, adapt to no environment application

4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes

5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes

6. Lens servo: support lens preset position, focal length return, focus positioning function

7. Parameter setting: OSD menu remote call operation

8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance

Safety control

1. Support illegal access alarm: the number of illegal access, lock time can be set.

  • Support three levels of user rights management, administrator, operator and normal user.
  • Security mode: authorized user name and password, support IP whitelist and blacklist, MAC whitelist and blacklist.
  • User mis-login lockout
Power supply

1. Working voltage: DC 9~36V, external AC220V or battery power adapter

  • Rated power consumption: ≤40W
  • Peak power consumption: ≤60W
Environmental adaptation

1. Working temperature: -40℃~60℃

  • Working humidity: ≤95%
  • Protection grade: IP67
  • Anti-salt spray: no change in surface after 96 hours of continuous spraying at pH 6.5~7.2
  • Electromagnetic compatibility: anti-surge 6KV, anti-static 8KV contact / 15KV air
Volume weight

1. Weight: ≤10kg

  • Size: 312mm×200mm×296mm (L×W×H)
  • Mounting: Front / side / wall / hanging / vehicle / tripod pro-rack


Applications:

In border control and security, the Thermal Surveillance System is used for monitoring and surveillance to detect any suspicious activities or intrusions. With its long-range detection capabilities of up to 5km, this system can effectively cover a large area, providing real-time thermal imaging to security personnel. The system's 10-meter positioning accuracy also allows for precise tracking and monitoring of any potential threats.
Scene 2: Industrial and Commercial Security

The Thermal Surveillance System is also widely used in industrial and commercial security settings. With its ability to detect heat signatures from a distance, this system can effectively monitor large industrial sites, warehouses, and commercial buildings. The optional 5km, 8km, and 15km Lrf (laser rangefinder) allow for enhanced long-range surveillance, making it an ideal choice for large-scale security operations.

Scene 3: Environmental Monitoring and Protection

For environmental monitoring and protection, the Thermal Surveillance System is an essential tool to detect and prevent any potential fires. With its advanced thermal imaging capabilities, this system can detect heat sources and hotspots in forests, national parks, and other natural areas, enabling early detection and prevention of wildfires. Its compact size and low power consumption of 6W also make it suitable for use in remote and off-grid locations.

Scene 4: Law Enforcement and Public Safety

The Thermal Surveillance System is also widely used in law enforcement and public safety operations. With its high-resolution thermal imaging and long-range detection capabilities, this system can assist in tracking and apprehending suspects, identifying potential threats, and providing real-time situational awareness to law enforcement personnel. Its compact and portable design also allows for easy deployment in emergency situations.

Scene 5: Wildlife and Nature Conservation

The Thermal Surveillance System is also an essential tool for wildlife and nature conservation efforts. With its ability to detect heat signatures, this system can assist in monitoring and tracking wildlife, especially at night or in dense vegetation. Its non-invasive nature also makes it suitable for use in protected areas and sensitive environments.

Conclusion

The Thermal Surveillance System by Hope-Wish is a versatile and high-performance infrared thermal camera that is suitable for a wide range of applications. With its advanced features, long-range detection capabilities, and low power consumption, this system offers an affordable and reliable solution for all your security and surveillance needs. Choose Hope-Wish for the best thermal imaging camera price and experience enhanced security and surveillance like never before.

Company Profile:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

Hd Industrial Grade Long Range Security Camera Thermal Surveillance Camera 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
Hd Industrial Grade Long Range Security Camera Thermal Surveillance Camera 1

Customization:

Brand Name: Hope-Wish
Model Number: HP-TC
Place of Origin: China

Our Thermal Surveillance System is designed to provide high-quality thermal imaging for advanced security and surveillance purposes. With our brand name Hope-Wish, we guarantee top-notch performance and reliability.

GPS: Positioning Accuracy 10 Meters

The HP-TC is equipped with a highly accurate GPS system that ensures precise positioning for effective monitoring and tracking. With a positioning accuracy of 10 meters, you can trust our system to provide accurate and real-time location data.

Lens: Motorized & Manual Focus

Our Thermal Surveillance System features both motorized and manual focus lens options, allowing for easy and convenient adjustments depending on your specific needs. This ensures clear and sharp images for optimal surveillance.

LRF: Optional 5km, 8km, 15km

For long-range security monitoring, our system offers optional LRF (Laser Range Finder) capabilities with ranges of 5km, 8km, and 15km. This allows for enhanced detection and tracking of potential threats from a distance.

Power: Maximum Power Consumption 150W

Our Thermal Surveillance System is designed to be energy-efficient with a maximum power consumption of 150W. This ensures cost-effective operation and reduces the need for frequent maintenance.

Warranty: One Year

At Hope-Wish, we stand by the quality and reliability of our products. That's why we offer a one-year warranty for our Thermal Surveillance System, giving you peace of mind and assurance of our commitment to customer satisfaction.

Choose Hope-Wish for your thermal security camera, thermal PTZ camera, and long-range security camera needs. Our customizable service will meet your specific requirements and provide the best surveillance solution for your business or organization.



Support and Services:

Thermal Surveillance System Technical Support and Services

Our Thermal Surveillance System is designed to provide top-notch security and surveillance for your property. We understand the importance of having a reliable and efficient system in place, which is why we offer comprehensive technical support and services to ensure your system is always up and running smoothly.

Technical Support

Our team of highly skilled technicians are available 24/7 to provide technical assistance for any issues or concerns you may have with your Thermal Surveillance System. Whether it's a simple question or a complex problem, our experts are dedicated to resolving any technical issues in a timely and efficient manner.

We offer remote support, where our technicians can access your system remotely to troubleshoot and resolve any issues. This allows for quick and convenient solutions without the need for a technician to physically visit your property.

In addition, we also provide on-site technical support for more complex issues that require in-person assistance. Our technicians will visit your property to diagnose and resolve any issues, ensuring minimal disruption to your surveillance system.

Maintenance and Upgrades

Regular maintenance is crucial for the longevity and effectiveness of your Thermal Surveillance System. Our team offers maintenance services to ensure your system is functioning at its best at all times.

We also provide upgrade services to keep your system up-to-date with the latest technology and features. Our team will work with you to determine the best upgrades for your specific needs and budget.

Training and Education

We believe that knowledge is power, which is why we offer training and education services for our Thermal Surveillance System. Our experts will provide comprehensive training for you and your team on how to use and manage the system effectively.

We also offer educational resources and materials to help you understand the features and capabilities of your system. This will allow you to maximize the potential of your Thermal Surveillance System and ensure the safety and security of your property.

Conclusion

At Thermal Surveillance System, we are committed to providing exceptional technical support and services to ensure the smooth operation of your surveillance system. Our team is dedicated to ensuring your safety and security, and we are always here to assist you with any technical needs or concerns you may have.
