Product Details:
|
Focus Mode: | Fixed | Product Name: | Multi Sensor Thermal Camera |
---|---|---|---|
Size: | 600mm X 600mm X 550mm | Temperature Range: | -20°C To +120°C |
Power Supply: | 5V DC | Humidity: | 0 To 95% RH |
Operating Temperature: | -20°C To +50°C | Accuracy: | +/-2°C Or 2% |
Highlight: | IP66 Long Distance Thermal Camera,Long Distance Multi Sensor Thermal Camera,5V DC Multi Sensor Thermal Camera |

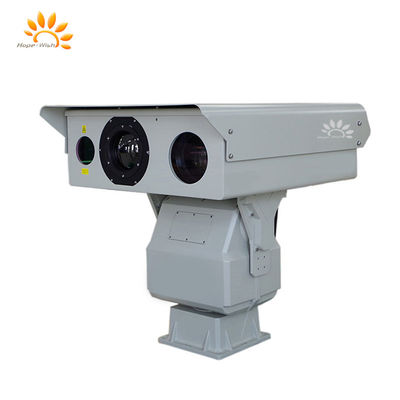

The Multi Sensor Thermal Camera is an infrared thermal scope, face recognition infrared thermometer and an infrared thermal camera module all in one. It features a USB 2.0 interface, a storage temperature ranging from -40°C to +70°C, an image resolution of 640 x 512, a field of view of 45° x 34° and a size of 600mm x 600mm x 550mm. With its advanced infrared imaging technology, the Multi Sensor Thermal Camera allows you to accurately measure the temperature of objects, detect objects in the dark and recognize faces. Its high image resolution and wide field of view makes it ideal for surveillance, security, industrial automation and other applications. Its compact size and durable design makes it suitable for both indoor and outdoor use.
Model | HP-TRC6511-2132 |
Detection | Vehicle: 8.6km,Human:3.4km |
Identification | Vehicle:2.4km, Human: 900m |
Thermal Camera System | |
Sensor | 5th generation FPA VOx uncooled detector |
Resolution | 640*512 (optional 384*288) |
Spectral range | 7.5~14μm |
NETD | 50mK (@25℃ F1.0) |
Focal length | 21mm~105mm, 5X continuous zoom, auto focus |
FOV | 30°* 23°~6.2°*4.6° |
Image process |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display |
Lens Control |
1.Zoom: Electrical Zoom. 2.Focus: Manual/Auto Focus 3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis. |
Visible Camera System | |
Camera | 1/2.8” star level CMOS, 0.05lux/0.01lux color to B/W CCD |
2 MP ,1920X1080 | |
Automatic ICR switch | |
H.264/H.265 MPEG4/MIPEG | |
32Kbps~16Mbps,60Hz30 FPS | |
Visible lens | 8mm~320mm, 2MP resolution, 40X zoom, auto focus |
Laser Illumination | |
Consumption | 10W, 808nm military NIR |
Illumination Angle | 1°~20° |
Synchronization control | DSS digital stepping illumination angle control technology, 0.1 degree precise servo control |
Housing | |
Material | High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated |
Surface coating | PTA three-resistance coating, Seawater corrosion resistance |
Temp. Control | Built-in thermostat, design of thermal equilibrium |
Interface | Aviation waterproof plug |
PTZ | |
Load Capacity | 30kg |
Range/Speed | Range:Pan: 0~360°, Tilt: +45°~-45°; Speed: Pan: 0.01~60°/S, Tilt: 0.01~30°/S |
Preset | 255 |
Scan | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising. |
Interface | |
Network Interface | RJ45 |
Network Protocol | Support TCP/IP, UDP, IPv4/v6; Support HTTP,RTP,RTSP,NFS,HDCP,NTP,SMTP,,PPPoE,DNS, FTP, Onvif |
Power Supply | AC/DC24V, anti-reverse connection protection |
Environment Parameter | |
Working/Storage Temp. | Working temperature: -25℃~+60℃(-40℃for optional); Storage temperature: -45℃~70℃ |
Seismic/Impact Resistance | 0.2g/15g |
Anti-lighting | Built-in auto Fuse-protected device, Power 4000V,Signal 2000V |
Ingress Protection | IP 66 |
Are you looking for a reliable Multi Sensor lens security camera to help identify and detect potential threats? Look no further than the Hope-Wish HP-TRC Multi Sensor Thermal Camera, which is designed to provide accurate face recognition infrared thermometer measures to help you identify and detect threats quickly. With its fixed focus mode and 7.5 to 13μm spectral range, it is able to capture facial features with greater accuracy and precision. In addition, the camera's 10kg weight and 640 x 512 image resolution provide increased portability and a clear image. The camera also features a 0 to 95% RH humidity rating, making it suitable for a wide variety of conditions.
The Hope-Wish HP-TRC Multi Sensor Thermal Camera is the perfect solution for any security system, providing reliable face recognition and accurate thermal measures. With its fixed focus mode, 7.5 to 13μm spectral range, 10kg weight, 640 x 512 image resolution, and 0 to 95% RH humidity rating, this camera is sure to provide exceptional performance and accuracy for all your security needs.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
The Hope-Wish HP-TRC Multi Sensor Thermal Camera Customization Service offers cooled thermal cameras with infrared thermal camera modules designed for high performance thermal imaging applications. Our product features advanced thermal imaging camera technology with a spectral range of 7.5 to 13μm and a power supply of 5V DC. The Multi Sensor thermal camera boasts a humidity range of 0 to 95% RH and an image resolution of 640 x 512. The product weighs a mere 10kg.
The Hope-Wish HP-TRC Multi Sensor Thermal Camera Customization Service is perfect for any application requiring a high-quality cooled thermal camera. Our product is designed to provide superior performance and reliability. Our Multi Sensor thermal camera is ideal for applications such as industrial thermography, medical thermography, and surveillance.
Take advantage of our Hope-Wish HP-TRC Multi Sensor Thermal Camera Customization Service today and enjoy superior performance and reliability. We are proud to offer the best infrared camera module and thermal imaging camera technology available.
Multi Sensor Thermal Camera offers comprehensive technical support and services to ensure our customers have the best experience possible. Our dedicated technical support team is available 24/7 to help with any questions or issues you may have. We also provide a range of services including installation, maintenance, and troubleshooting. Our team is highly experienced and knowledgeable to ensure that any issue is quickly resolved.
We are committed to providing a positive customer experience, so if you have any questions or issues, please don’t hesitate to contact us. Our team is available to answer any questions or provide assistance, so you can be sure that you’re getting the best service possible.
